AlphaTheta DJM-V5

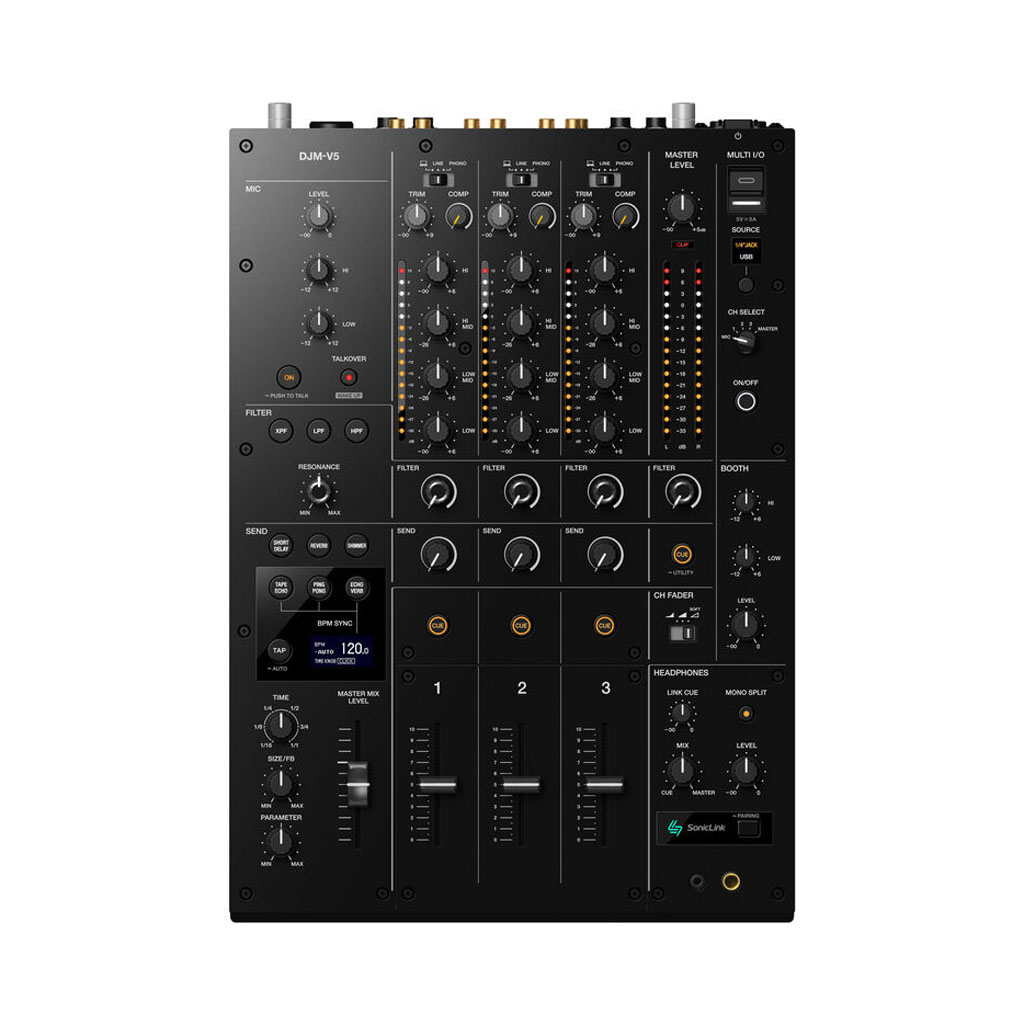

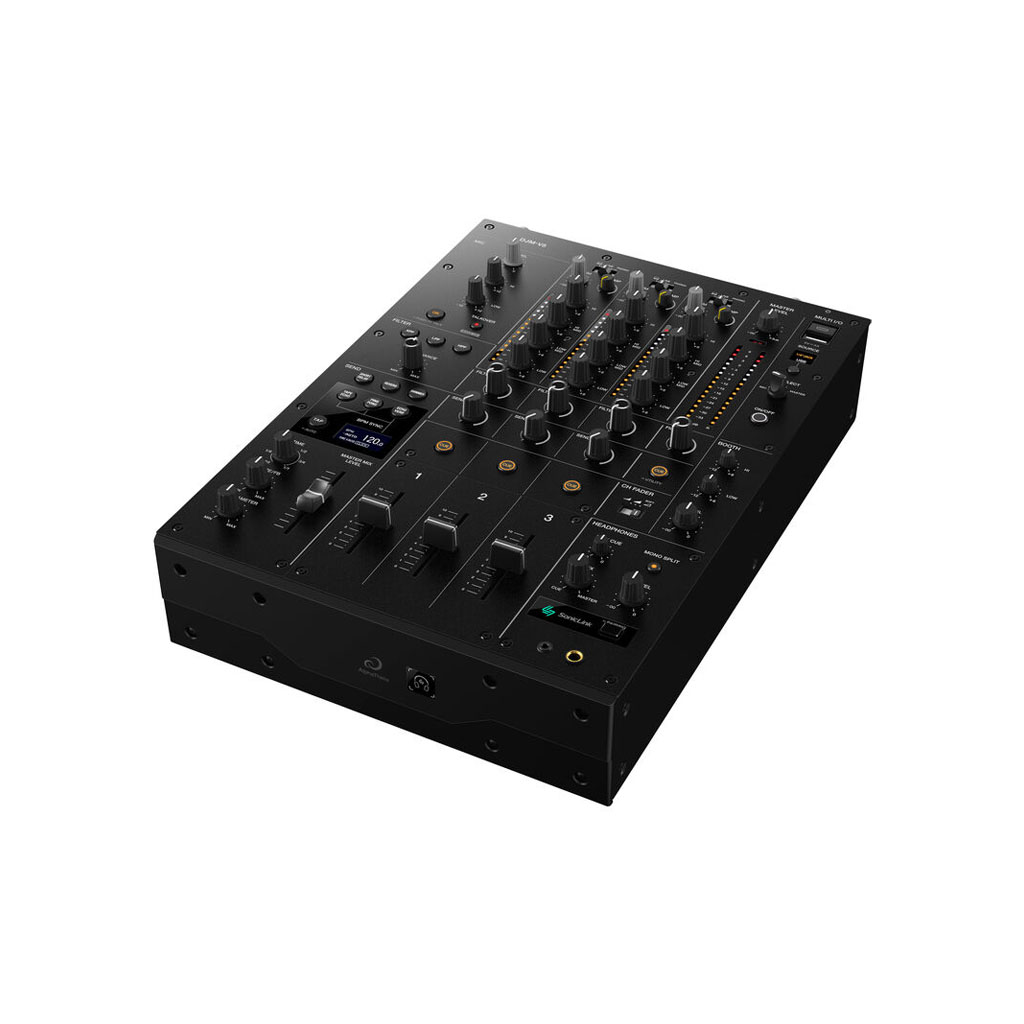

Mix intuitively and creatively on the 3-channel DJM-V5, even in DJ booths with limited space. The mixer inherits the layout, tactile feel, and many features of the DJM-V10—including the 4-band EQ, compressor, filter, and Send FX—but has a 30% smaller footprint. While it’s compact in size, the DJM-V5 retains a professional feel and flexible sound-shaping capabilities. You can precisely control levels with the 60mm long-throw channel faders from the DJM-V10-LF and, when you lower one, the new Soft Mix Curve fader mode automatically applies subtle high-frequency attenuation to create smoother, more natural blends, helping you to express yourself through sound in the most delicate and nuanced ways.

Building on the acclaimed high-resolution warm sound of the DJM-V10, the DJM-V5 delivers well-balanced mixing that avoids sonic saturation, even when you layer multiple audio sources. It features studio-grade 96 kHz / 64-bit mixing DSP processing, with high-quality 32-bit A/D and D/A converters from ESS Technology built into the channel input and master output sections. Every audio component was carefully selected and optimized for the unit, with repeated listening tests conducted in real-world environments, including clubs. The result is a refined audio signature that maximizes the contours of every sound, the spatial expression, and even the silence between notes, creating an immersive experience where each element stands out clearly and the overall mix feels smooth and energetic.

Add texture to your music with 6 expressive effects: Short Delay, Reverb, Shimmer, Tape Echo, PingPong, and Echo-Verb. Each channel features a dedicated send knob, so you can intuitively adjust the amount of effect applied to individual tracks. The time knob, which controls each effect’s time parameter and decay, includes a unique clicking mechanism that varies, depending on the effect.

• Tape Echo, PingPong, Echo-Verb: tactile clicks are added in sync with the BPM—ranging from 1/16 note to 1 beat—which enables you to apply these effects precisely.
• Short Delay, Reverb, Shimmer: smooth, click-free adjustment for fluid, micro control of the effect length.

Each channel features a dedicated filter knob with 3 selectable modes: low-pass, high-pass, and the newly added cross-pass (making its first appearance on an AlphaTheta mixer). The knob’s left-to-right sweep structure gives you both subtle and dynamic control. With the cross-pass filter, you can retain low frequencies while gently filtering the mids and highs—adding variation to vocals or melodies without compromising the track’s energy and enabling entirely new styles of performance.

The DJM-V5 is the first mixer to feature a built-in SonicLink transmitter, enabling comfortable, low-latency wireless monitoring when paired with compatible headphones. You can pair the mixer with the HDJ-F10 quickly and easily at the press of a button. For headphone models scheduled for release this year, pairing will be even more intuitive—all you’ll need to do is touch the designated headphone area on the front panel of the DJM-V5 to make the connection.

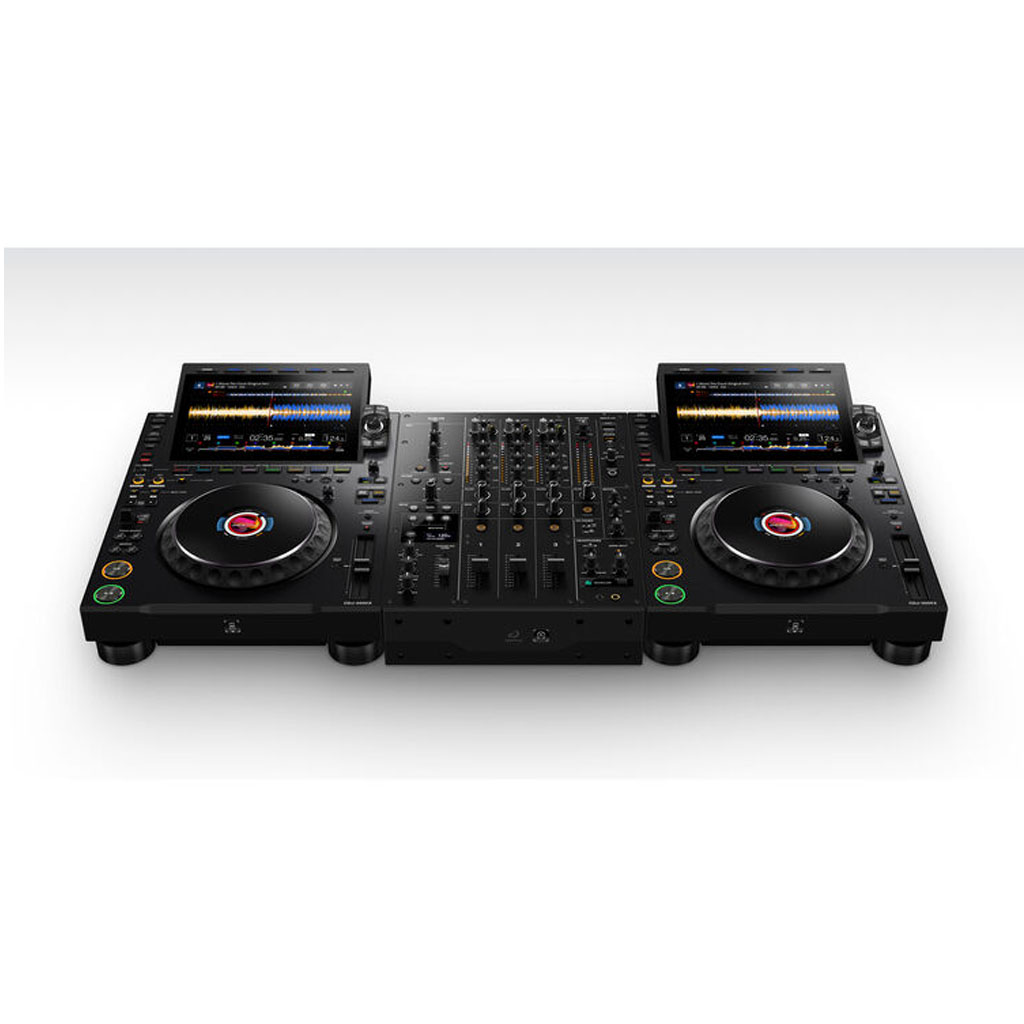

By connecting the DJM-V5 to compatible DJ players—such as the CDJ-3000X or CDJ-3000—and rekordbox via PRO DJ LINK, you can apply effects precisely in time with the BPM. With Link Cue, you can preview tracks while browsing—without loading them—or touch the full waveform of a track that’s currently playing to listen to what’s coming next, and you can adjust the volume with a new dedicated knob. And with the option to load your personal mixer settings from a USB device or rekordbox, you can get the mixer setup the way you like in an instant.

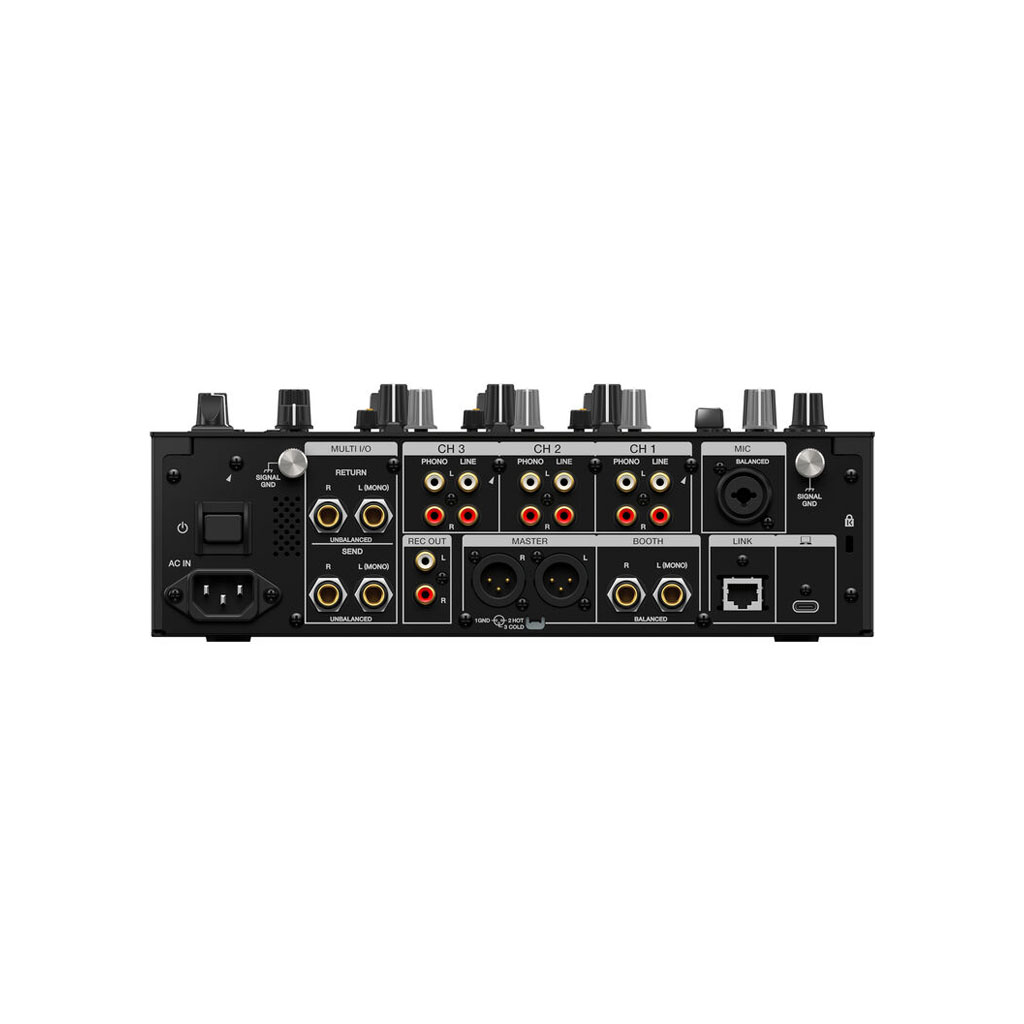

Connect the rear USB-C terminal to a Windows/Mac computer to instantly integrate your setup with rekordbox for Mac/Windows or Serato DJ Pro and perform using features such as DVS. The multi-device compatible MULTI I/O also features a top-panel USB-C port, so you can connect an iPhone or iPad2 to use DJM-REC or RMX-1000 for iPad, or connect the RMX-IGNITE with a single USB cable. The unit also supports insert connections with an external effector thanks to its USB send/return capabilities. From club performances to live streaming and recording, the DJM-V5 offers versatile setup options to suit any situation.
