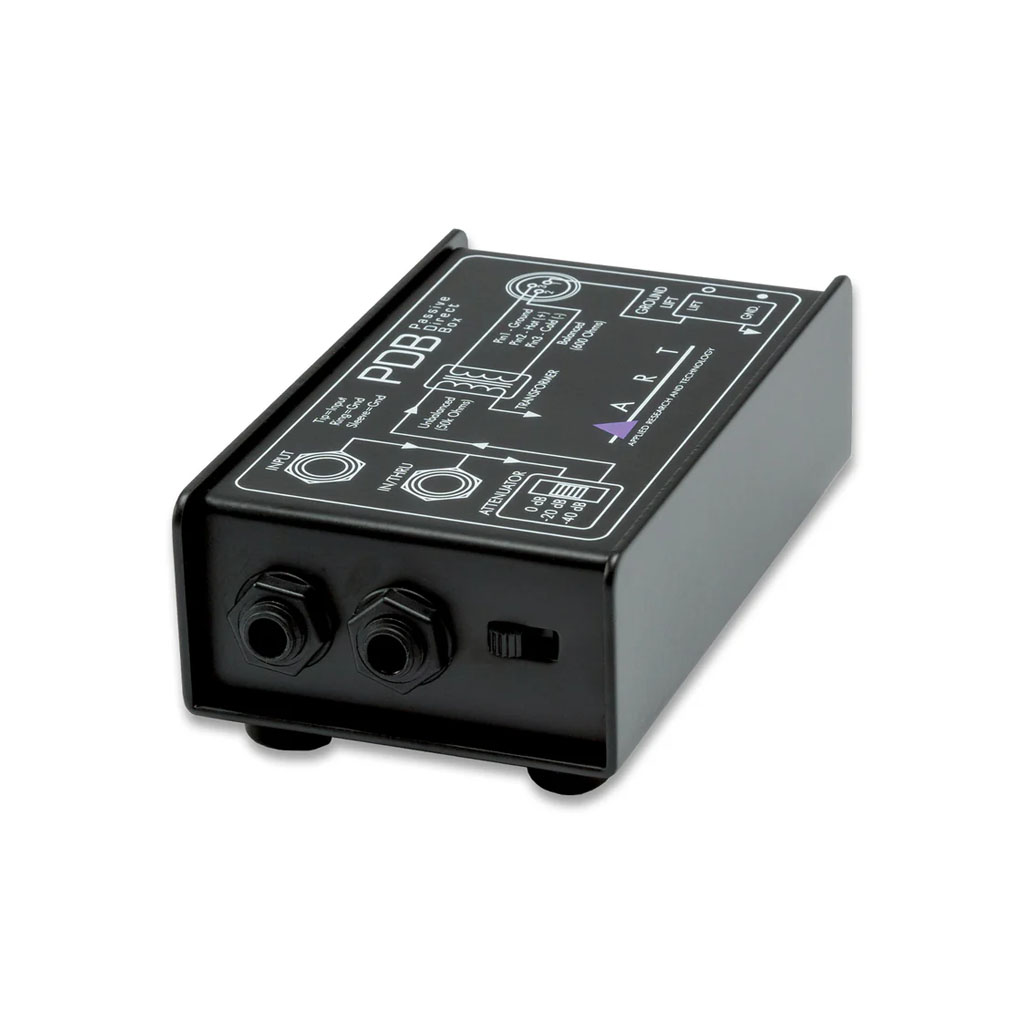

ART PDB Passive Direct Box

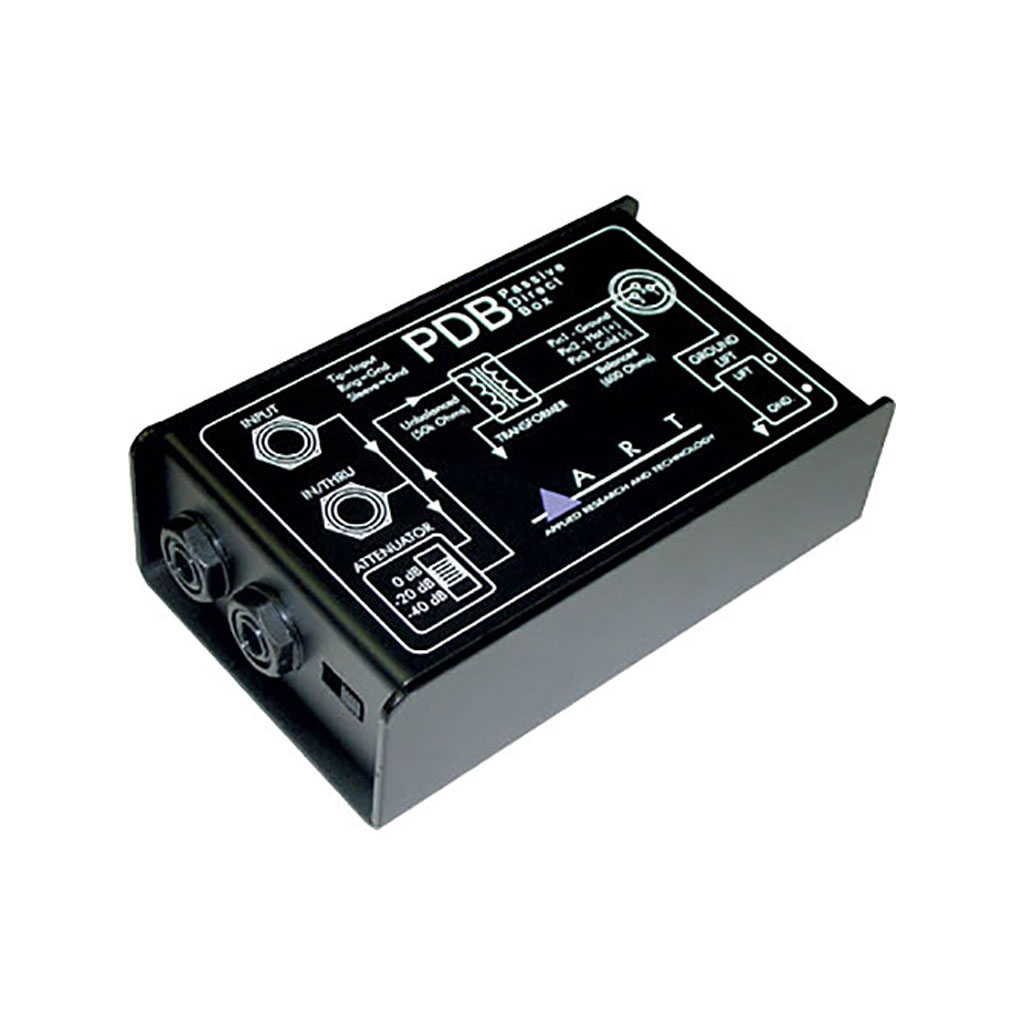

ART PDB Passive Direct Box - Image 2

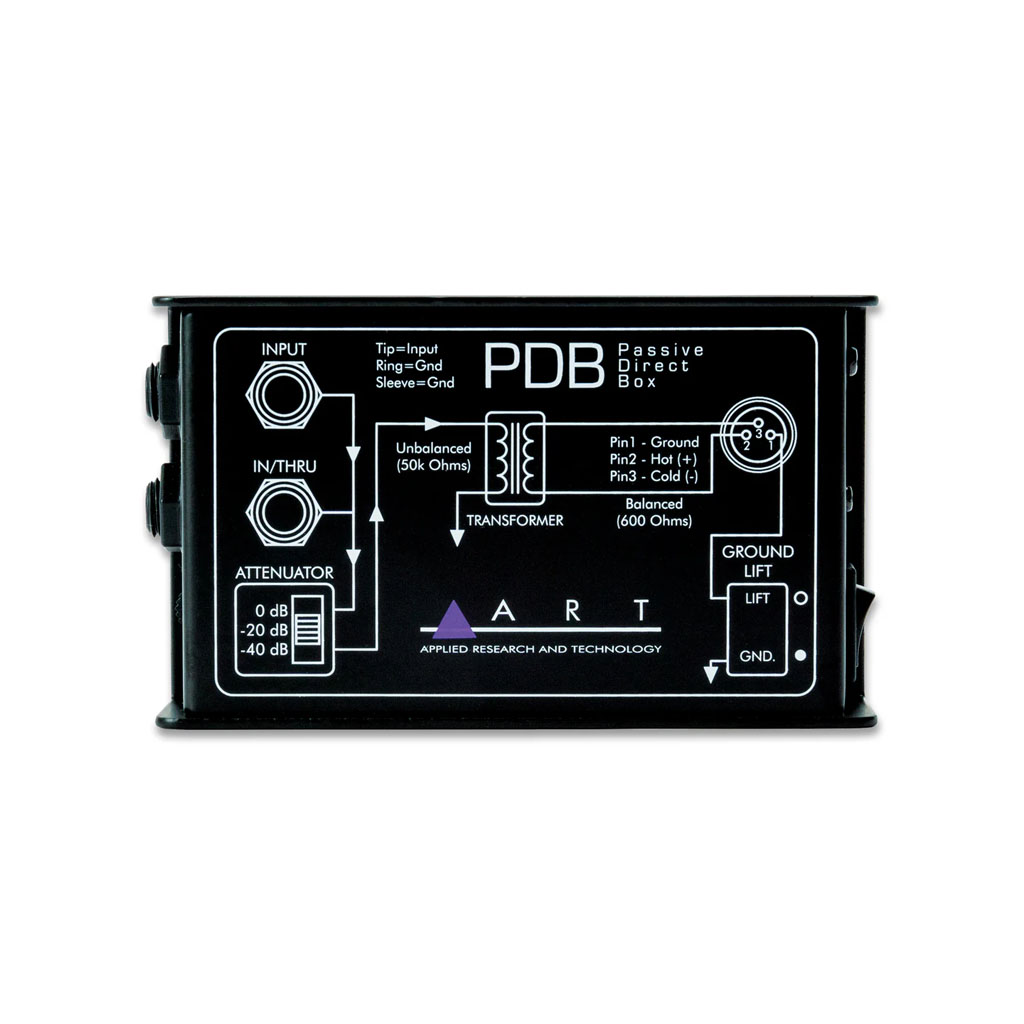

ART PDB Passive Direct Box - Image 3

ART PDB Passive Direct Box

Brands: Art
Brands
  • Passive, solid-state direct box (no power required)
  • Single-channel DI with rugged steel chassis
  • Switchable input attenuation: -20 dB / -40 dB pad

$69.00

The PDB passive direct box from ART is a roadworthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs. It also allows for connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.

The unit features switchable input attenuation, a 50k Ω instrument input, 50k Ω parallel link jack, a 600 Ω XLR output jack and a switchable ground lift. It excels at impedance matching and improving the sound of any instrument plugged into it. Enclosed in a rugged steel chassis, it is designed and manufactured to the highest standards to provide years of quiet, reliable performance.

Electric Guitar and Bass
The high impedance signal from a guitar or bass guitar pickup is translated by the unit into a low impedance balanced signal required by mixing consoles.
Keyboards and Line Level Signals
Automatically balances and matches the line level outputs of modern electronic keyboards. If using a multiple keyboard setup and the keyboards are all plugged into a single instrument amplifier, the PDB can be used to replace individual direct boxes by simply sending the output of the instrument amplifier to the PDB and then to the console.
DJ Console Output Signals
DJ mixers often supply only an unbalanced -10dB signal. The PDB converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
Speaker Level Signals
By accepting speaker level inputs from a power amplifier’s output, the DI allows post-amplifier, post EQ and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.
FEATURES
  • Passive, solid-state direct box (no power required)
  • Single-channel DI with rugged steel chassis
  • Switchable input attenuation: -20 dB / -40 dB pad
  • Ground Lift switch eliminates hum and buzz
  • 50k Ω instrument input with 50k Ω parallel link jack
  • 600 Ω balanced XLR output
  • Converts high-impedance guitar/bass signals to balanced low-impedance
  • Balances and matches keyboard line-level outputs
  • Converts DJ console unbalanced -10 dB signals to balanced line level
  • Accepts speaker-level inputs from power amplifiers
  • Wide frequency response: 10 Hz – 50 kHz (±0.5 dB at +4 dBu)
  • Compact size: 5 x 3 x 2″ (12.7 x 7.62 x 5.08 cm)
  • Lightweight and portable: 1.45 lb
Category: Tags: , Brand:
Brands

Denon DJ
Product Type

All in one DJ System, DJ Controllers

General

Item Type Standard DI
Number of Channels Single-Channel
Active/Passive Passive
Circuitry Solid-State

Preamp

Pad Yes
Ground Lift Yes
Polarity Reverse No

EQ & Tone Shaping

High-Cut/Low-Pass Filter 30 kHz
Low-Cut/High-Pass Filter No

Connectivity

Audio I/O 1x XLR 3-Pin Balanced Input

1x 1/4″ TRS Balanced/Unbalanced Input

1x 1/4″ TRS Balanced/Unbalanced Thru

1x XLR 3-Pin Balanced Output

Performance

Frequency Response 10 Hz to 100 kHz ±0.5 dB (at +0 dBu)
Maximum Input Level +44 dBu

Power

Operating Voltage 48 V (Phantom Power)

9 V (Battery Power)

Physical

Dimensions 4.25 x 3.5 x 1.75″ / 10.79 x 8.9 x 4.45 cm
Weight 0.75 lb / 0.34 kg

Packaging Info

Package Weight 0.91 lb
Box Dimensions (LxWxH) 14 x 7.5 x 3″
