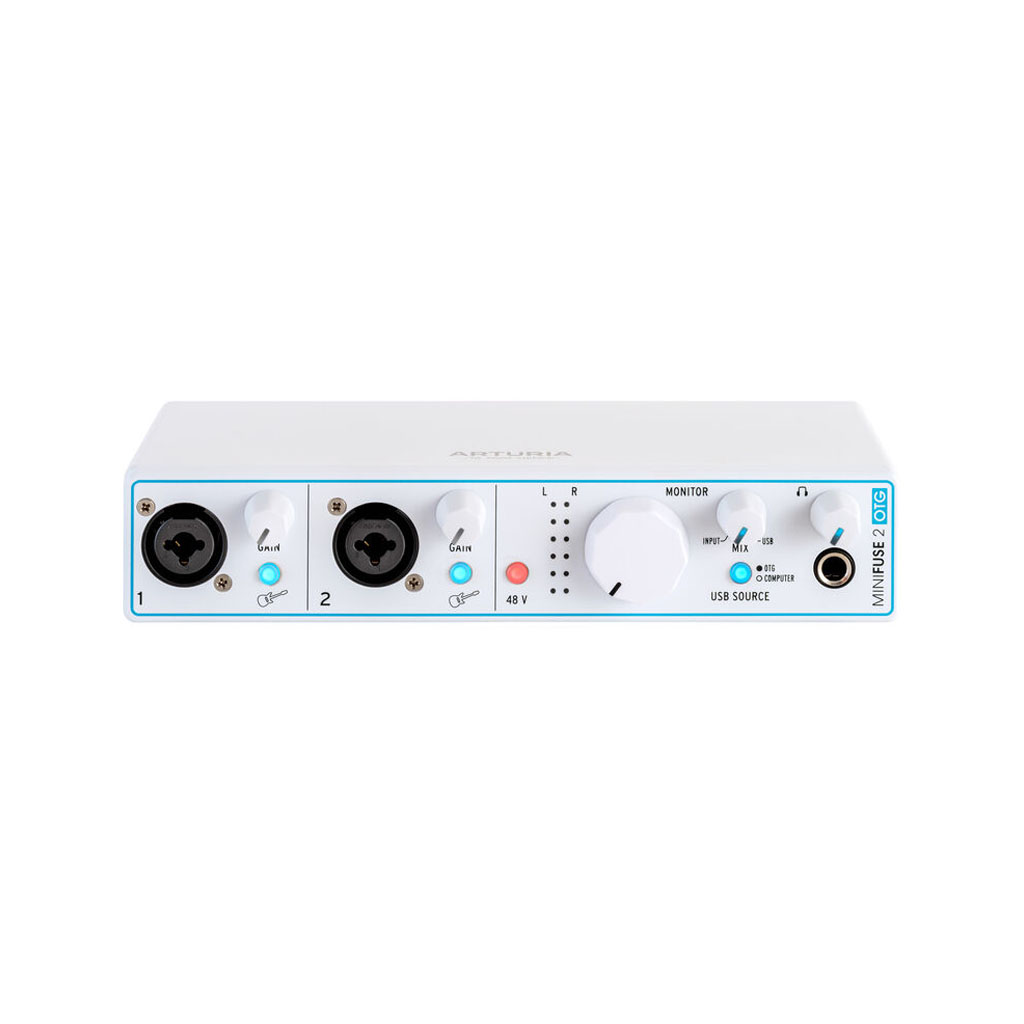

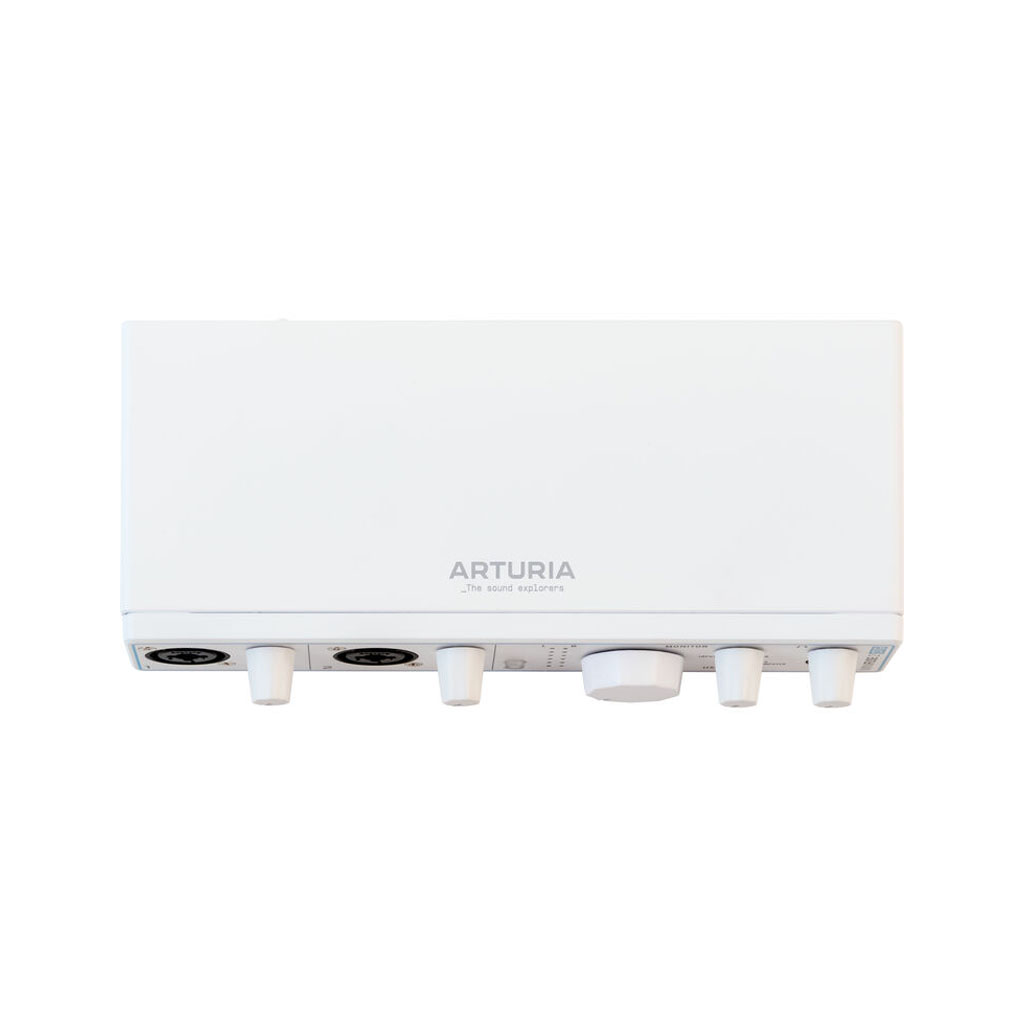

Arturia MiniFuse 2 OTG (White)


Brands: Arturia
Brands
  • For Content Creators and Musicians
  • Two XLR-1/4″ Mic / Line / Hi-Z Inputs
  • USB OTG Port for Mobile Device or 2nd PC
  • Compatible with Portable Power Banks

$259.00

Ideal for content creators, musicians, and educators looking to take powerful audio connectivity with them anywhere, the Arturia MiniFuse 2 OTG is a portable 2-channel USB-C audio interface with a highly compact and lightweight design. With two USB-C ports, including one dedicated to OTG mobile device connections, you can work from your smart devices and take the studio with you anywhere.

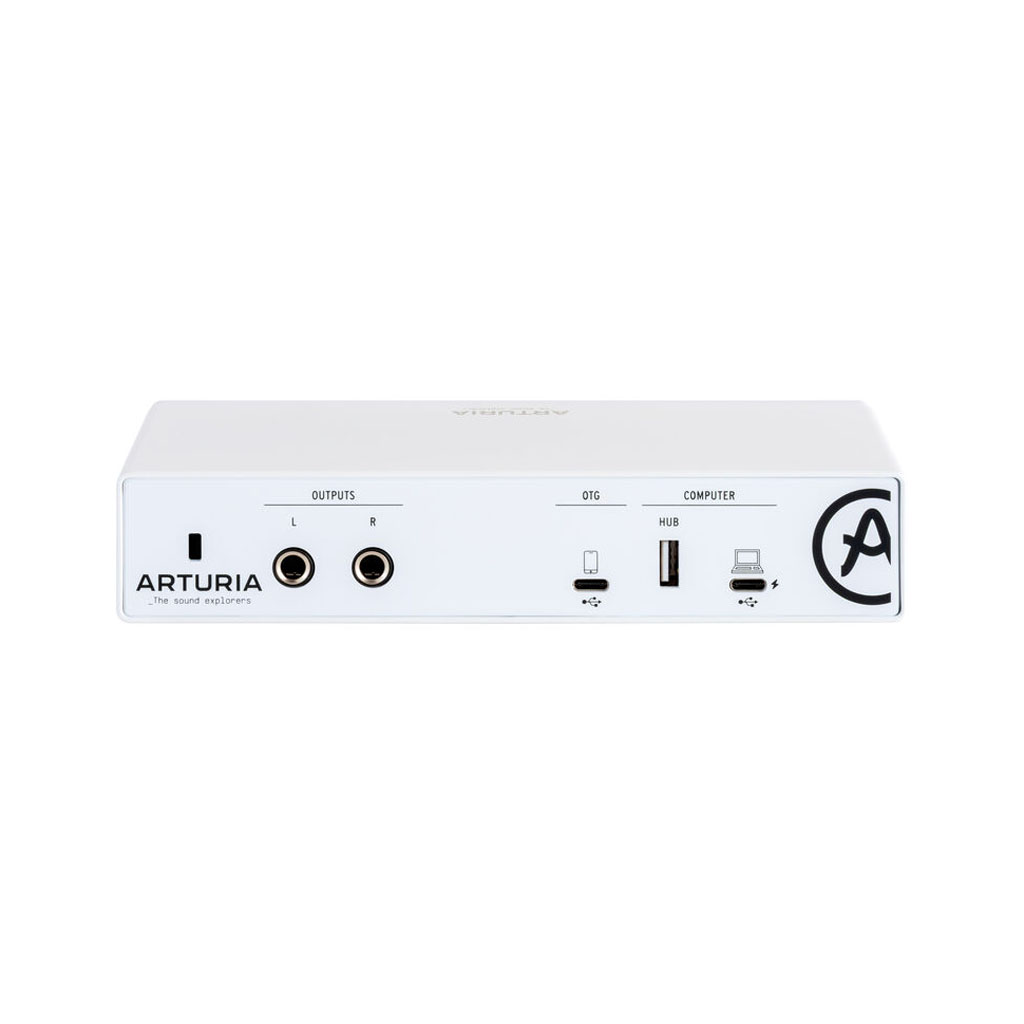

The MiniFuse 2 OTG sports two XLR-1/4″ combo mic / line / Hi-Z inputs for handling whatever sources you want to throw at it and two 1/4″ TRS outputs in the rear for analog connections to speakers and other audio devices. The unit also includes a front-panel headphone output with a dedicated volume control and a USB-A hub port for MIDI, device connections, and charging. You can activate 48V phantom power for active microphones, manually switch on Hi-Z mode on either input, and use the USB Source control to switch between analog input, USB, or a blend of both, as well as select whether to use the OTG or computer USB-C port for host connection duties. The front panel features an LED meter and a backlit gain knob. Loopback functionality makes it easy to use computer audio during a stream or while you’re recording. This audio interface is fully USB bus powered and can be powered by a power bank for field-recording applications. The MiniFuse 2 OTG includes a USB-C cable, a USB-C to USB-A cable, and a suite of powerful audio software.

Capture, Create, Stream

Route audio between multiple devices and external hardware with ease. Whether you’re streaming, producing, or recording, MiniFuse 2 OTG delivers high-quality sound and a mobile-friendly design.

Do More with USB

Record or playback with a mobile device, stream and record with dual USB, record instruments or mics, share audio between two computers, mix with headphones, and monitor speaker outputs.

Ready for Mobile

Compatible with mobile and tablet devices (see arturia.com for detailed compatibility). OTG USB is compatible with 44.1 and 48 kHz sampling rates.

The Fuse Ecosystem

Exclusive tips and tutorials, a dedicated online portal, and complimentary intros to world-class mixing services help you get more from your setup.

Included Software

  • MiniFuse Control Center, control utility companion
  • Analog Lab Intro
  • Chorus JUN-6
  • Delay TAPE 201
  • Pre 1973
  • Rev PLATE 140
  • Ableton Live Lite
  • Steinberg Cubase LE and Cubasis LE
  • Izotope VEA (AI Voice Enhancement Assistant)
  • Hindenburg PRO (1-year subscription)
  • Auto-Tune Unlimited (3-month subscription)
  • Splice Creator Plan (3-month subscription)

FEATURES

  • For Content Creators and Musicians
  • Two XLR-1/4″ Mic / Line / Hi-Z Inputs
  • USB OTG Port for Mobile Device or 2nd PC
  • Compatible with Portable Power Banks
  • Direct Monitoring with USB Source Switch
  • Backlit Gain Knobs with Overload LED
  • Loopback Function for Streaming PC Audio
  • 1/4″ Stereo Line Outputs, Headphone Out
  • USB-A Hub Port for MIDI and USB Devices
  • Includes USB-C and USB-C to USB-A Cables
Channels of I/O
2 Inputs / 3 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4″ TRS Line Output
1x 1/4″ TRS Headphone Output (Front Panel)

Digital Audio I/O
No
Host Connection
1x USB-C (Class-/USB OTG-Compliant)
Power Requirements
USB Bus Power
General
Display
No
Channels of I/O
2 Inputs / 3 Outputs
Built-In DSP
No
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Input Level Adjustment
Knob
Signal Processing
Pad
No
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4″ TRS Line Output
1x 1/4″ TRS Headphone Output (Front Panel)
Phantom Power
48 V
Digital Audio I/O
No
Host Connection
1x USB-C (Class-/USB OTG-Compliant)
Host Connection Protocol
USB 2.0
USB (Non-Host)
1x USB-A (Device Charging, Device Connection)
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
No
Wireless
No
Performance
Frequency Response
20 Hz to 20 kHz
Maximum Input Level
XLR Mic Inputs:
+9 dBu
1/4″ Line Inputs:
+22 dBu
1/4″ Hi-Z Inputs:
+11.5 dBu
Maximum Output Level
1/4″ Line Outputs:
+12 dBu
1/4″ Headphone Outputs:
+11.4 dBu
Headphone Output Power
137 mW into 33 Ohms
Impedance
XLR Mic Inputs:
2.5 Kilohms
1/4″ Line Inputs:
16 Kilohms
1/4″ Hi-Z Inputs:
1.1 Megohms
Dynamic Range
Inputs:
110 dBA
1/4″ Headphone Outputs:
104 dBA
1/4″ Speaker Outputs:
107.5 dBA
THD+N
Mic/Line Inputs:
-100 dBA
Hi-Z Inputs:
-91 dBA
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
No
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: Windows / macOS
Mobile: Android/iOS
Required Hardware
USB Cable
Power
Power Requirements
USB Bus Power
Packaging Info
Package Weight
1.345 lb
Box Dimensions (LxWxH)
8.5 x 5.3 x 2″
