Behringer CU1A

Brands: Behringer
Brands
  • Horizontal Pitch: 6 HP
  • Eurorack Power: None (USB bus powered)
  • Connects Your Modular with Your Computer
  • Inspired by Moog Modular Series Layout

$92.00

2-In / 2-Out USB/Audio Interface Module for Eurorack (6 HP)

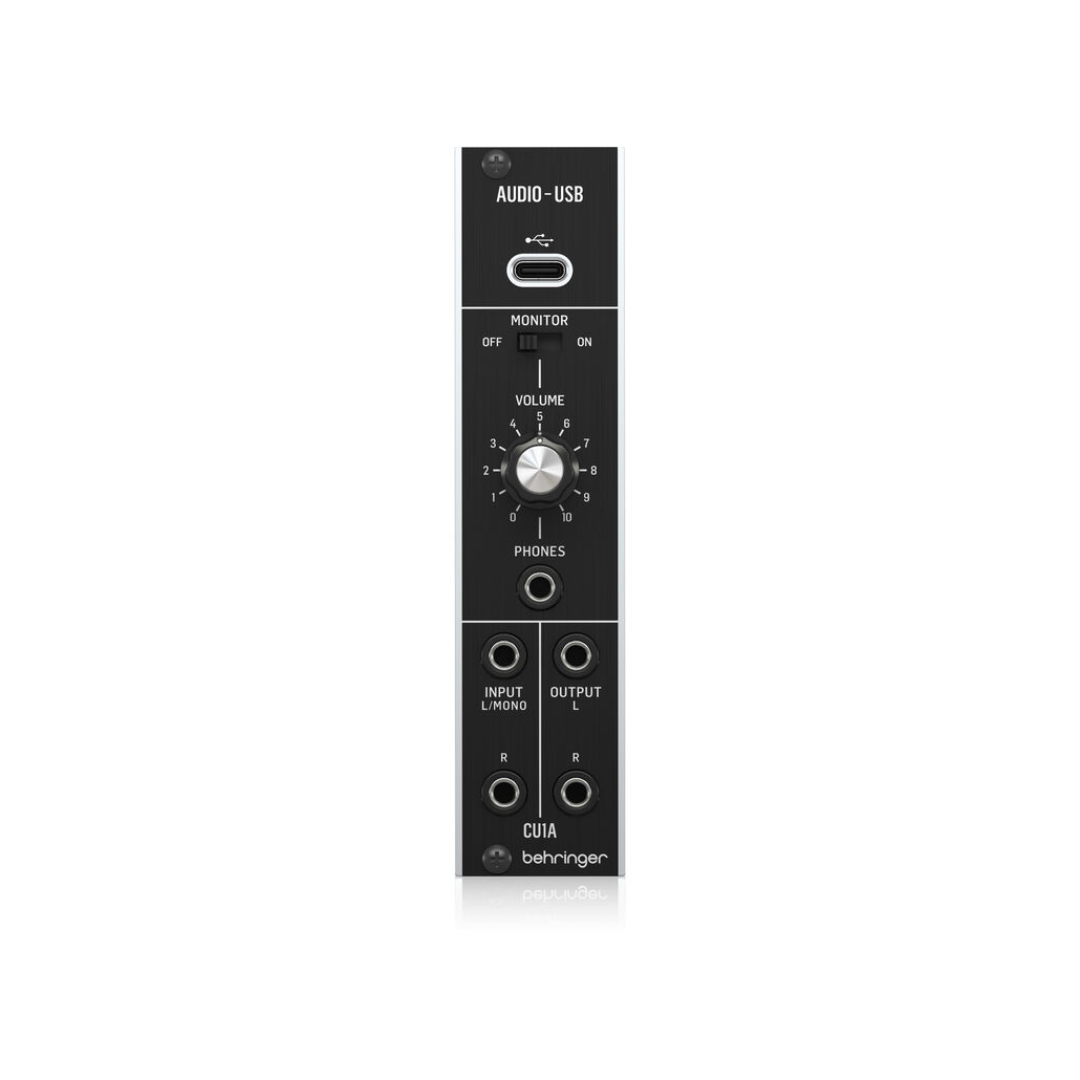

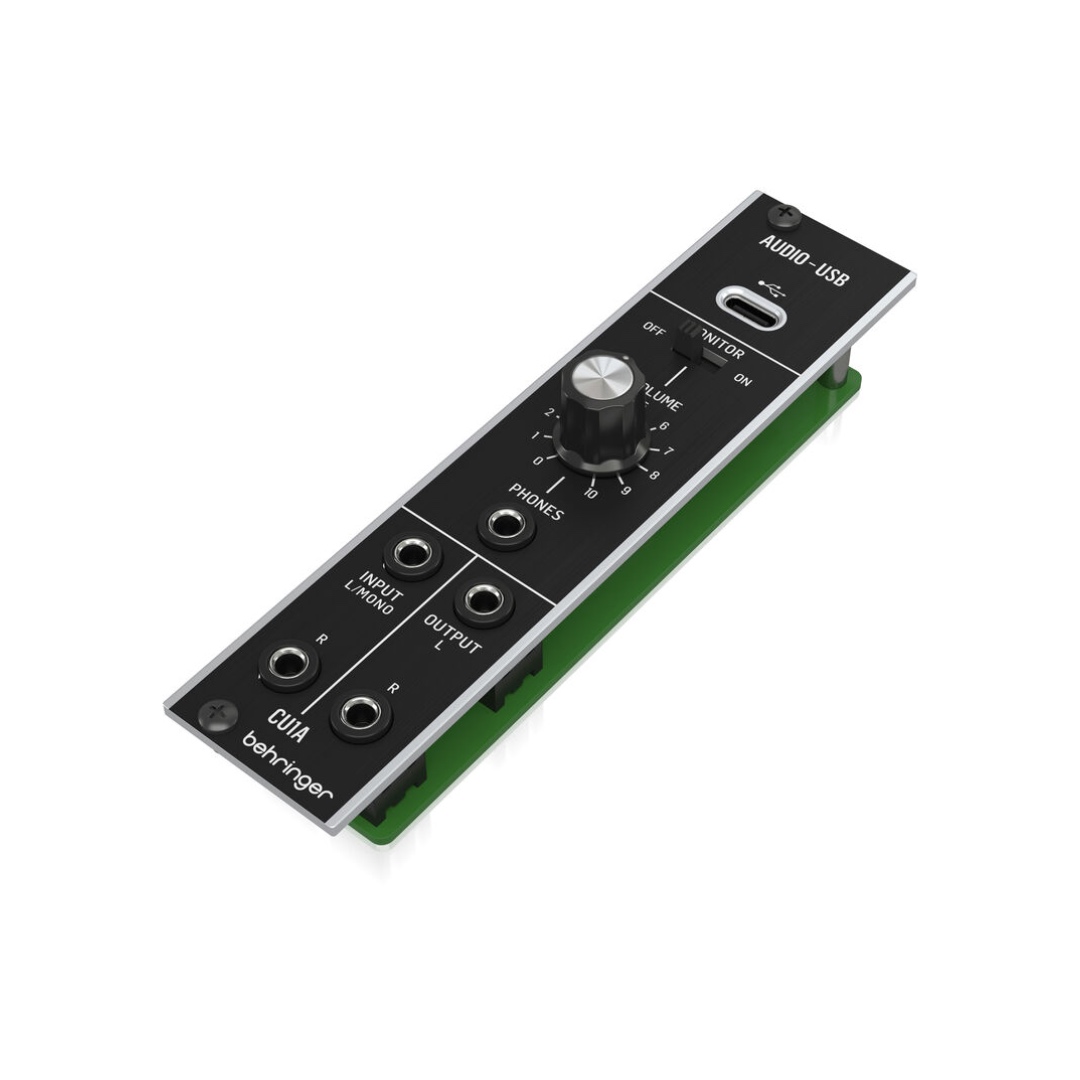

Easily record your modular setup with the Behringer CU1A, an ultralow latency 2-input / 2-output USB/audio interface that works with any Mac or Windows computer. The 6 HP Eurorack module is styled after the Moog Modular series and is completely USB-C bus powered. The device is plug-and-play and with its class compliance, requires no drivers or setup. The stereo 3.5mm TRS with volume control allows you to monitor both the pairs of analog 3.5mm input and outputs.

Benefits
  • Audio interface connects your modular setup with your computer for recording and playback
  • High-resolution 48 kHz converters for high-end audio quality
  • Works with your PC or Mac computer—no setup or drivers required
  • Stereo headphones output with dedicated Level control lets you monitor both input and output
  • Powered via USB-C—no power absorbed from your modular system
Connect and Control
The CU1A comes with a stereo headphone output that you can control with the dedicated level control. The CU1A works with any PC or Mac. No setup of drivers are needed. It works as a send/return, so you can run your modular sounds through your favorite effect plug-in, or send beats, samples, or any other signal into your modular synth for some extremely wild sound experiments.
High-Resolution, Maximum Power
By integrating the CU1A into your setup, you’ll get high-resolution converters that provide the best audio quality for recording and/or playback. The CU1A is also powered via USB-C ensuring that no power is drawn away from your modular synth.
Eurorack Ready
Installing the CU1A is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply, and mount the module using the included screws. This allows for the CU1A to be mixed with other synth modules for a truly unique setup.

FEATURES

  • Horizontal Pitch: 6 HP
  • Eurorack Power: None (USB bus powered)
  • Connects Your Modular with Your Computer
  • Inspired by Moog Modular Series Layout
  • High-Resolution 48 kHz Converters
  • Works w/ Mac or Windows, Class Compliant
  • Stereo Headphone Output w/ Level Control
  • Monitors both Input and Output
  • Powered by USB-C
  • Includes Mounting Screws
Categories: , Tags: , , Brand:
Brands

Roland
Product Type

Module, Production & Groove
Controls
Initial Oscillator Frequency Fader Sets Oscillator Frequency: (10 Oct. Range)
Fine Tune Knob: Oscillator Fine Tune Adjustment (±0.4 Oct.)
Audio (Kybd On) / LF (Kybd Off) Slide Switch: Select Audio Band (10 Hz to 10 kHz) Or LFO (0.03 Hz to 30 Hz)
FM 1 / 2 /3 Faders: Attenuate FM Inputs (-∞ to Unity Gain)
Pulse Width Fader: Pulse Width Adjustment (10% To 90%)
PwM Fader: Pulse Width Modulation Attenuator (-∞ to Unity Gain)
Signal Connectors

Inputs

Keyboard CV
Type: 1 x 3.5 mm TS Jack, DC Coupled
Impedance: 100 Kilohms, Unbalanced
CV Range: 10 V, 1 V/Octave

FM 1 / 2 / 3 CV
Type: 3 x 3.5 mm TS Jacks, DC Coupled
Impedance: 50 Kilohms, Unbalanced
CV range: 10 V, 1 V / Octave

PWM CV
Type 1 x 3.5 mm TS Jack, DC Coupled
Impedance: 75 Kilohms, Unbalanced
CV Range: 10 V, Typically 1 V/10%

Outputs

TRI/SINE/SAW/PULSE
Type: 4 x 3.5 mm TS Jacks, DC Coupled
Impedance: 1 Kilohm, Unbalanced
TRI Level: ±5 V
SINE Level: ±5 V
SAW Level: 0 V / +10 V
PULSE Level: 0 V / +10 V
Power
Power Supply: Eurorack
Current Draw: 140 mA (+12 V), 5 mA (-12 V)
Horizontal Pitch
16 HP
Dimensions
5.1 x 3.2 x 1.7″ / 13.0 x 8.1 x 4.3 cm
Weight
0.4 lb / 0.2 kg
Packaging Info
Package Weight
0.55 lb
Box Dimensions (LxWxH)
6.7 x 4 x 1.9″
