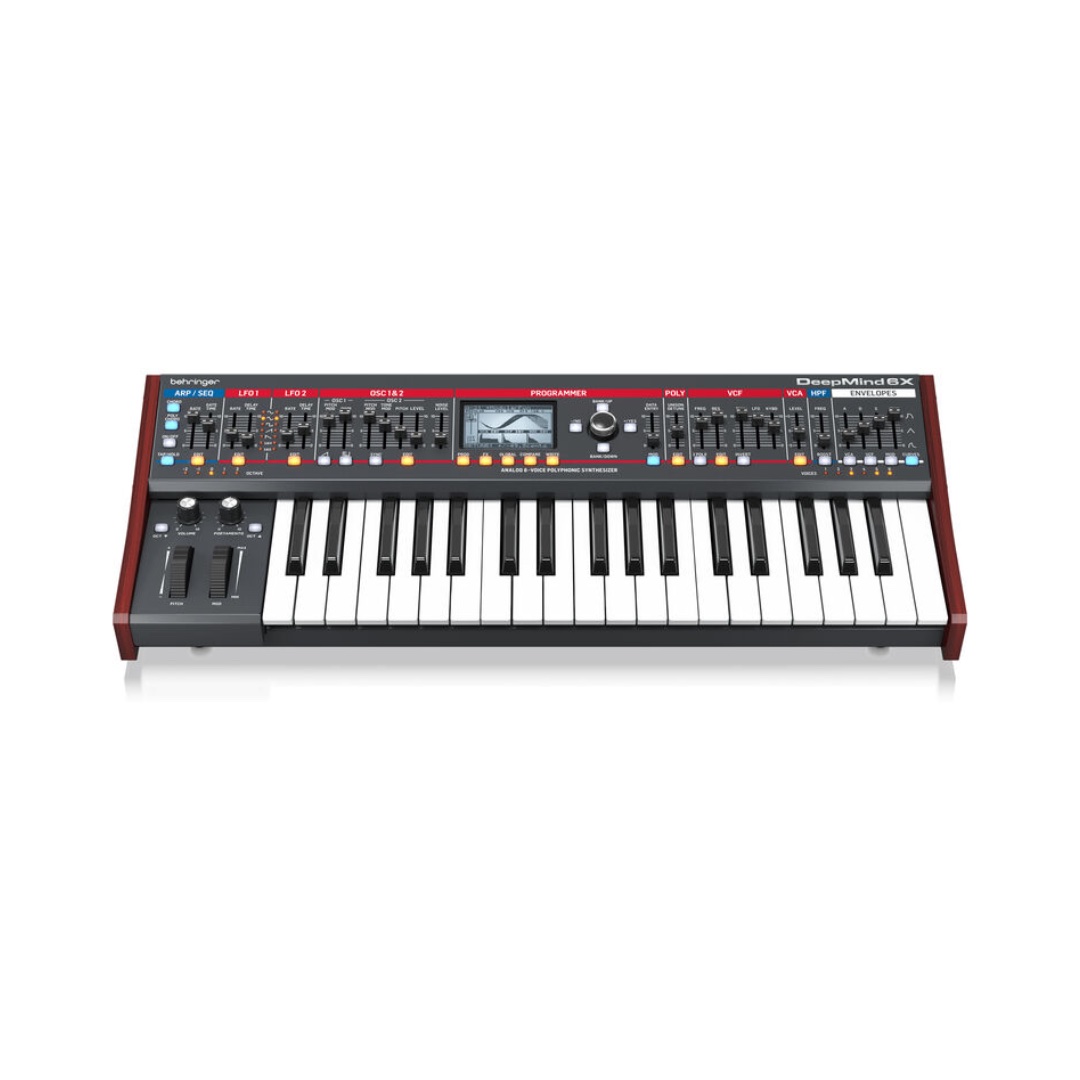

Behringer DEEPMIND 6X

• Upddated look inspired by vintage synthesizers of yesteryear
• Six voices with 2 analog OSCs per voice with oscillator sync mode
• Two LFOs per voice with seven waveform shapes, key sync, MIDI sync and envelope auto-triggering
• Three ADSR generators per voice for control of VCF, VCA, and Mod envelopes
• Flexible eight-channel modulation matrix with 19 sources and over 130 destinations including effects parameters
• 32-step control sequencer with adjustable slew rate and MIDI sync
• Full remote control via iPad/PC/Mac app over USB or MIDI for extended parameter control
• 37 semi-weighted full-size keys featuring velocity sensitivity and aftertouch
• Pure analog signal path based on legendary VCF and VCA design

• OSC 1 generates sawtooth and square/pulse waveforms with pulse width modulation
• OSC 2 generates square/pulse waveforms with tone modulation
• Selectable dual-slope 12/24 dB analog low-pass filter per voice with adjustable resonance
• Envelope faders seamlessly transform individual envelope segments between linear, exponential, and reverse exponential curves
• Powerful unison and poly modes with detune, pan spread and drift parameters featuring up to six voices per note
• Global noise generator dramatically expands waveform generation
• Incredible polyphonic portamento with flexible fixed rate, fixed time, and exponential pitch glide modes
• Sophisticated arpeggiator with tap tempo button and user configurable pattern modes
• Chord and PolyChord memories enable polyphonic performances from monophonic playing styles

• True bypass mode for pure and high-integrity analog tone
• Global variable 6 dB high pass filter with powerful bass boost switch
• 26 sliders and one switch per function give direct and real-time access to all important parameters
• Spring-loaded pitch and assignable modulation wheels provide total hands-on performance
• LCD Display with encoder, navigation switches and data value slider for rapid menu parameter editing and program selection
• 1024 user program memories with compare and match feature to quickly match all analog controls to values stored in program
• Fully servo-balanced stereo outputs for highest signal integrity
• CV/pedal input for connection to modular systems
• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)

• DEEPMIND 6 lets you create stunningly smooth mono and polyphonic chord glissandos that will really get your juices flowing. Options include flexible fixed rate, fixed time, and exponential pitch glide modes of operation.

• The 6 dB high-pass filter (HPF) lets you set the lower cutoff frequency of the output signal. The accompanying Boost switch applies a +12 dB bass boost to the signal path to fatten up the bottom end.

• A very sophisticated Arpeggiator is provided, complete with a tap-tempo button and user-configurable pattern modes. You can choose from 32 preset rhythmic patterns with up to 32 steps and rests, or create and save your own. A wide range of clock options and hold switch latching.are also available.

• DEEPMIND 6X allows you to write extremely complex chords and polychords (up to 6 notes each), save them into memory locations, and perform them with the press of a single key. There is enough storage space onboard for 36 six-note chords, all of which can be mapped to specific trigger keys.

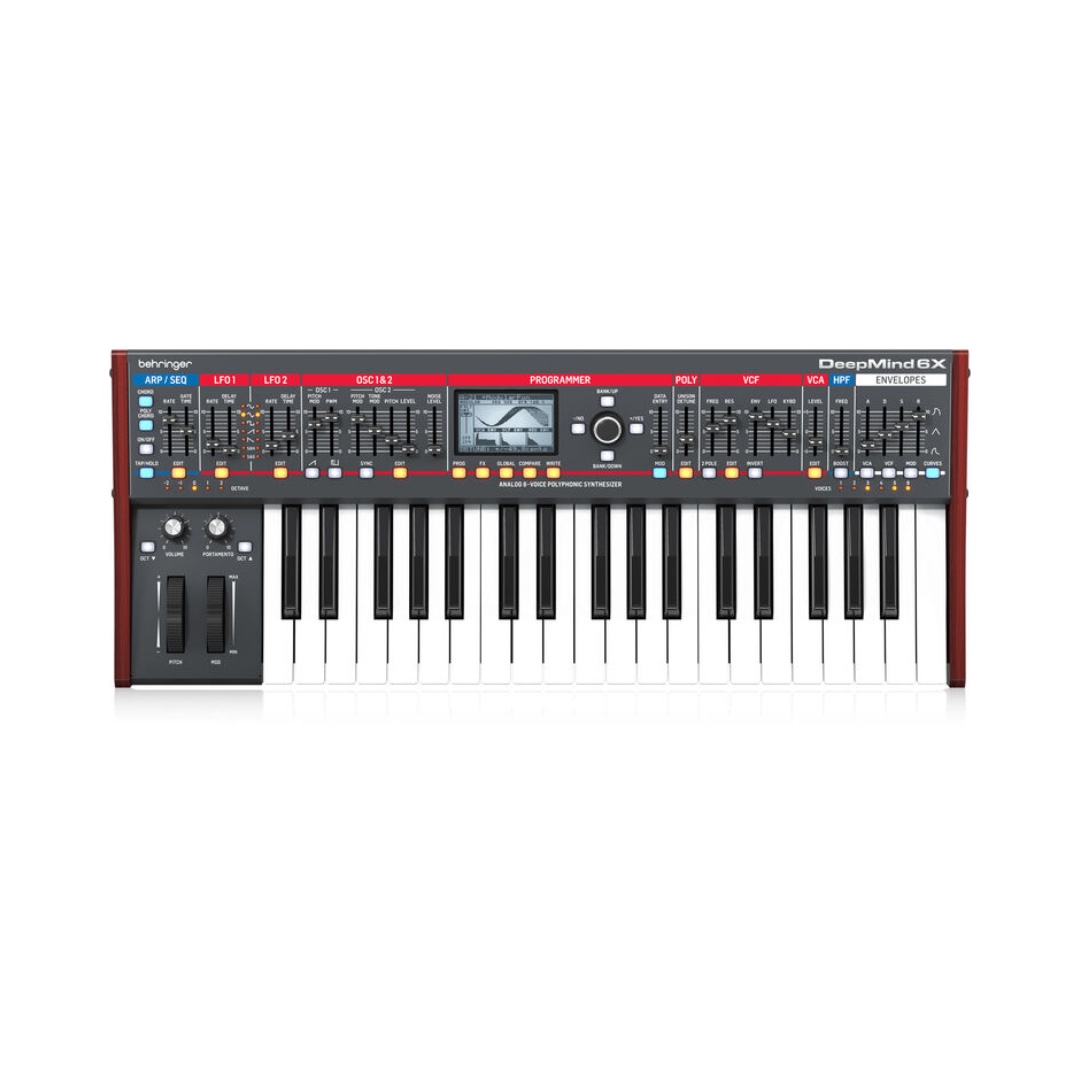

• DEEPMIND 6X has 26 sliders, 33 switches, 1 rotary encoder, 2 knobs, 1 spring-loaded pitch wheel, and 1 assignable spring-loaded modulation wheel. All are laid out in a highly intuitive format that’s easily accessible for live performances.
• The large and easy-to-read LCD screen provides rapid parameter editing and program selection on the fly, for a total hands-on performance with real-time access to all important parameters.

• The patches loaded into DEEPMIND 6X’s memory were designed by some of the world’s finest sound designers, and all of them are available for your modification. Your parameter settings can be stored in one of 1024 available user memory slots, which feature a convenient Compare and Match function that helps you match all analog controls to the values stored in the program.

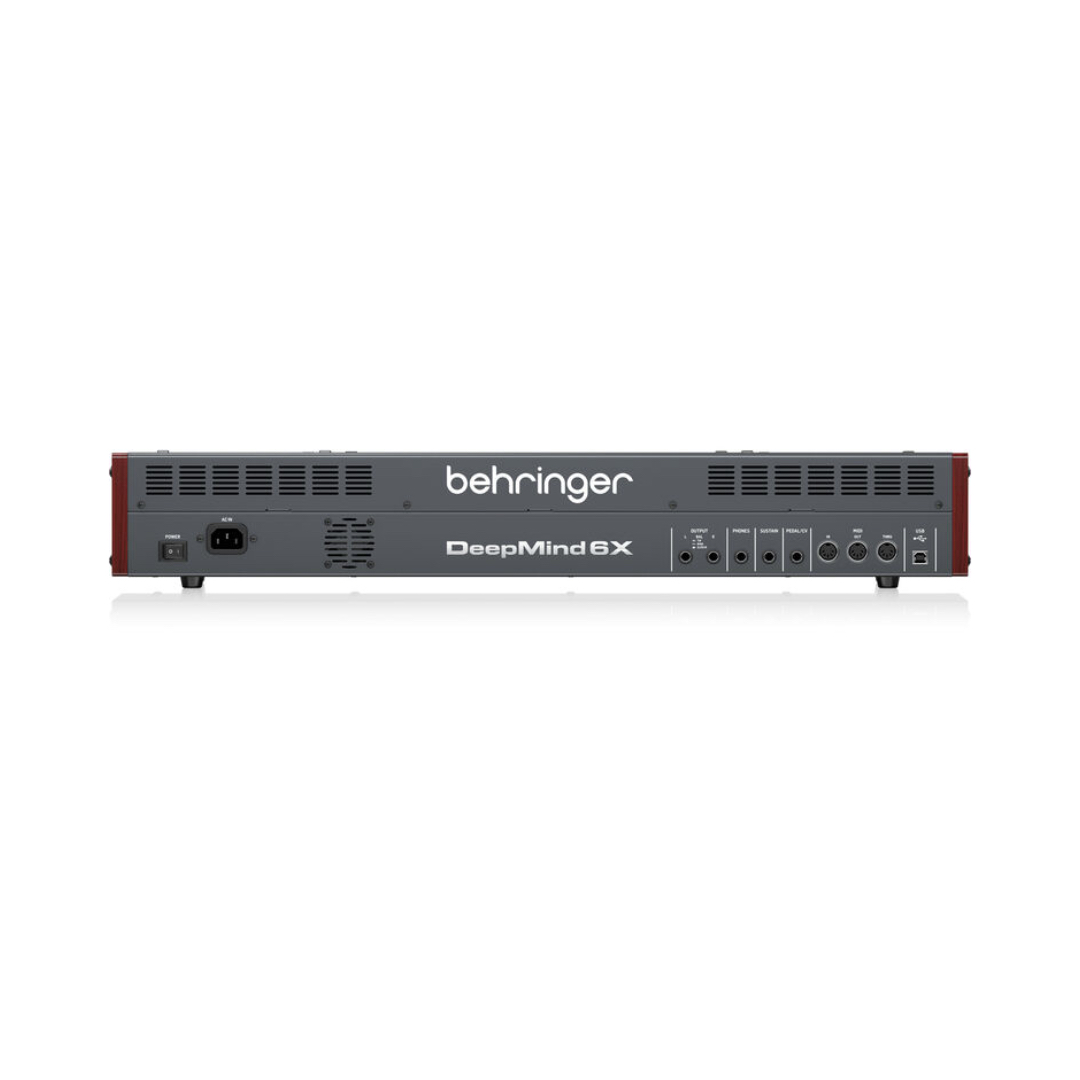

• Extensive connectivity includes fully servo-balanced stereo TRS audio outputs send your audio to mixing consoles/amplifiers, and phones
• Sustain pedal / CV, 5-pin MIDI (in, out, and thru), use as an external device with MIDI USB from your computer, and for firmware updates. The comprehensive MIDI implementation includes NRPN/CC control of virtually all parameters and bulk load/save.

FEATURES

• 6-Voice Analog Synthesizer
• 37 Semi-Weighted Keys
• Velocity Sensitivity and Aftertouch
• 2 Oscillators and LFOs per Voice
• 3 ADSR Generators, 4 FX Engines
• 8-Channel Modulation Matrix
• 26 Sliders , Pitch and Mod Wheel
• 32-Step Control Sequencer, Arpeggiator
• Remote Control via iPad, Windows/Mac
