Behringer Vocoder VC16
Behringer Vocoder VC16 - Image 2

Behringer Vocoder VC16

Brands: Behringer
Brands
  • Amazing Vocoder with powerful oscillators and 3 voices of total polyphony
  • 6 digital oscillators, encompassing analog modeling, noise, FM, and Vox
  • 4 controls for precise vocoder response and sound modeling
  • Specially crafted synthesis models tailored for Vocoder applications

$119.00

High-Resolution 16-Band Vocoder Module for Eurorack

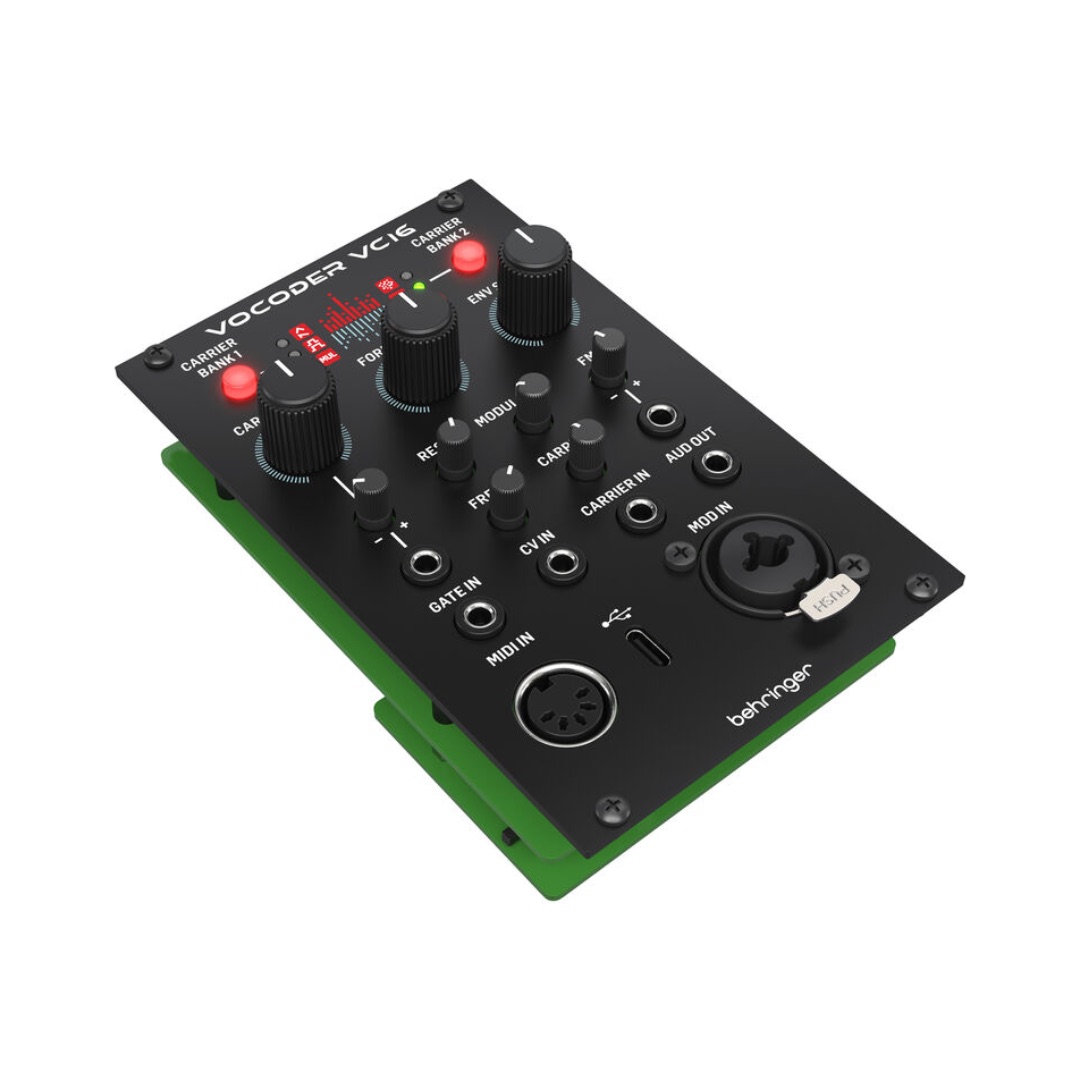

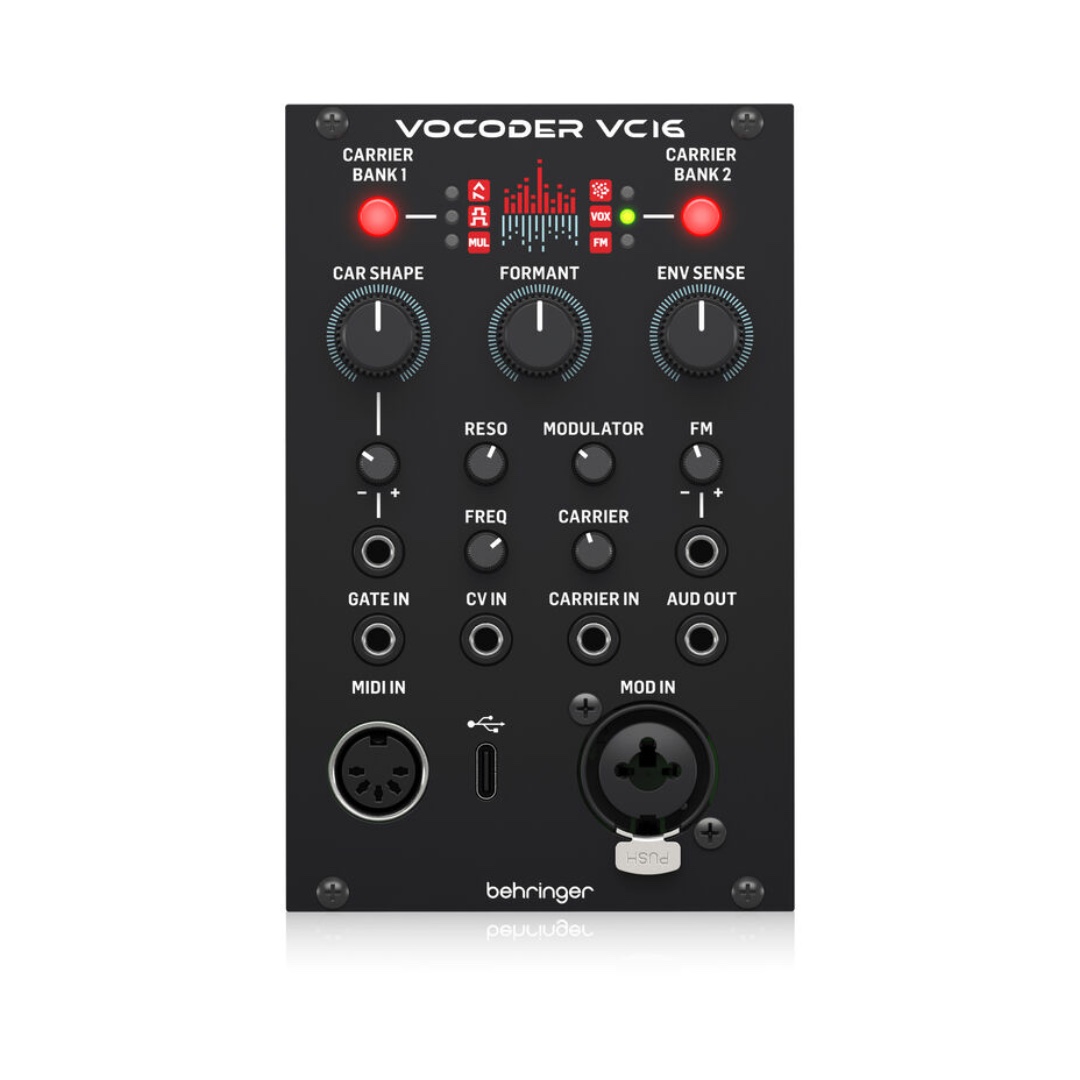

Create rock’in robot voices and more with the Behringer VOCODER VC16, a powerful vocoder module in Eurorack format. The VC16 combines six powerful synthesis engines with 3 voices of polyphony and 6 digital oscillators. The module provides four controls for precise vocoder response and sound modeling. There are external inputs for an external carrier and modulator inputs. The MIDI input allows you to interface with other instruments. The VC16 includes a power ribbon cable and mounting screws.

6 Digital Oscillators
At the heart of the VC16 are its six digital oscillators that include triangle/ramp, square/pulse, multiple wave, noise, vox, and FM, across two carrier banks. These can be tweaked with the Carrier Shape control along with the Shape CV Attenuverter.
Advanced Controls
Additional sound shaping options include:

  • Formant
  • Envelope Sense
  • Resonance
  • Cutoff
  • Modulator
  • Carrier
Ins and Outs
  • MOD IN: 3-pin XLR/1/4” TS jack allows you to plug in a mic or line-level source
  • MIDI IN: For interfacing with other MIDI equipped instruments
  • GATE IN: Trigger the envelope generator from an external source
  • CV IN: Control the carrier frequency from an external source
  • AUD OUT: Output VC16 audio at Eurorack level
Eurorack Ready
VOCODER VC16 is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. Mix VOCODER VC16 with other modules in your setup and start creating unique sequences that add a whole new dimension to your sound.

  • Horizontal pitch: 16 HP
  • Power requirements: 100mA, +12V; 20mA, -12V
FEATURES
  • Amazing Vocoder with powerful oscillators and 3 voices of total polyphony
  • 6 digital oscillators, encompassing analog modeling, noise, FM, and Vox
  • 4 controls for precise vocoder response and sound modeling
  • Specially crafted synthesis models tailored for Vocoder applications
  • Carrier shape control facilitating complex synthesis
  • External carrier input with adjustable level control
  • Line/mic modulator input featuring level control
  • MIDI input for effortless interfacing with other instruments
  • USB connector for seamless firmware updates
  • Six Synthesis Engines
  • 3 Voice Polyphony
  • Precision Vocoder and Sound Modeling
  • Carrier Shape Controls w/ Ext Input
  • Mic/Line Modulator Input
  • Includes Mounting Screws & Power Ribbon
Category: Tags: , Brand:
Brands

Behringer
Product Type

Module
General
Compatibility
Not Specified by Manufacturer
Inputs/Outputs
Inputs/Outputs

Inputs

Slope CV: 3.5 mm TS Jack, -8 V to +8 V Range, Impedance 50 Kilohms
Frequency CV: 3.5 mm TS Jack, -8 V to +8 V Range, Impedance 50 Kilohms
V/Oct: 3.5 mm TS Jack, -3 V to +5 V Range, Impedance 50 Kilohms
Smoothness CV: 3.5 mm TS Jack, -8 V to +8 V Range, Impedance 50 Kilohms
Shape CV: 3.5 mm TS Jack, -8 V to +8 V Range, Impedance 50 Kilohms
Shift/Level CV: 3.5 mm TS Jack, -8 V to +8 V Range, Impedance 50 Kilohms
Trig: 3.5 mm TS Jack, 5 V Peak to Peak, Impedance 50 Kilohms
Clock: 3.5 mm TS Jack, 5 V Peak to Peak, Impedance 50 Kilohms

Outputs

Outputs: 4 x 3.5 mm TS Jack, DC Coupled, Impedance 1 Kilohms
Controls
Controls
Frequency
Shape
Slope
Smoothness
Shift/LevelAttenuverters
Slope
Frequency
Smoothness
Shape
Shift/Level

Buttons
Frequency Range
Mode
Relationship
Power
Power Source
Proprietary Interface
Power Consumption
50 mA (+12 V) / 20 mA (-12 V)
Physical
Color
Black
Dimensions
5.06 x 2.79 x 1.62″ / 128.52 x 70.87 x 41.15 mm
Weight
4.75 oz / 134.75 g
Packaging Info
Package Weight
0.885 lb
Box Dimensions (LxWxH)
8 x 6.1 x 3.7″
