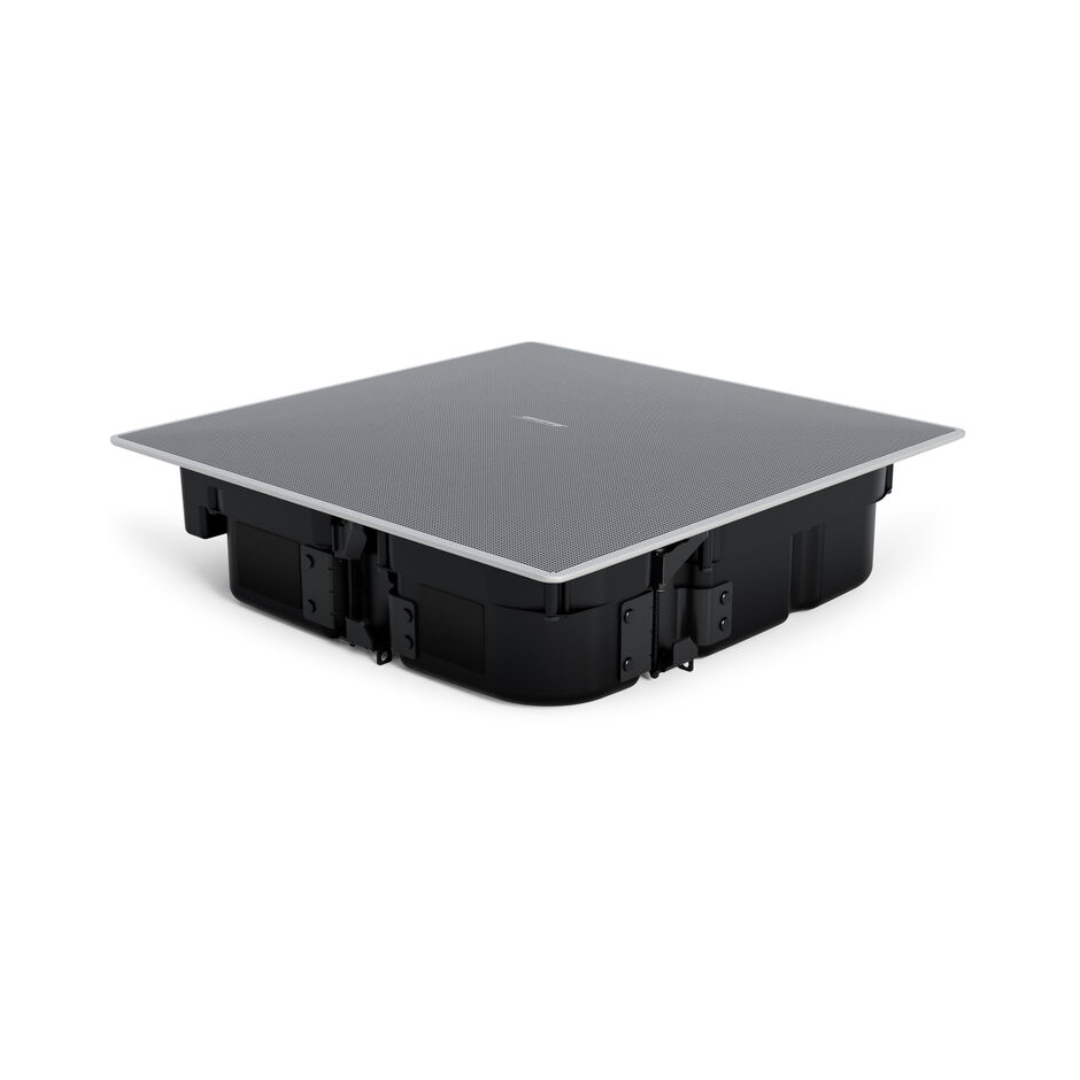

Bose Edgemax In-Ceiling Speaker EM180-LP

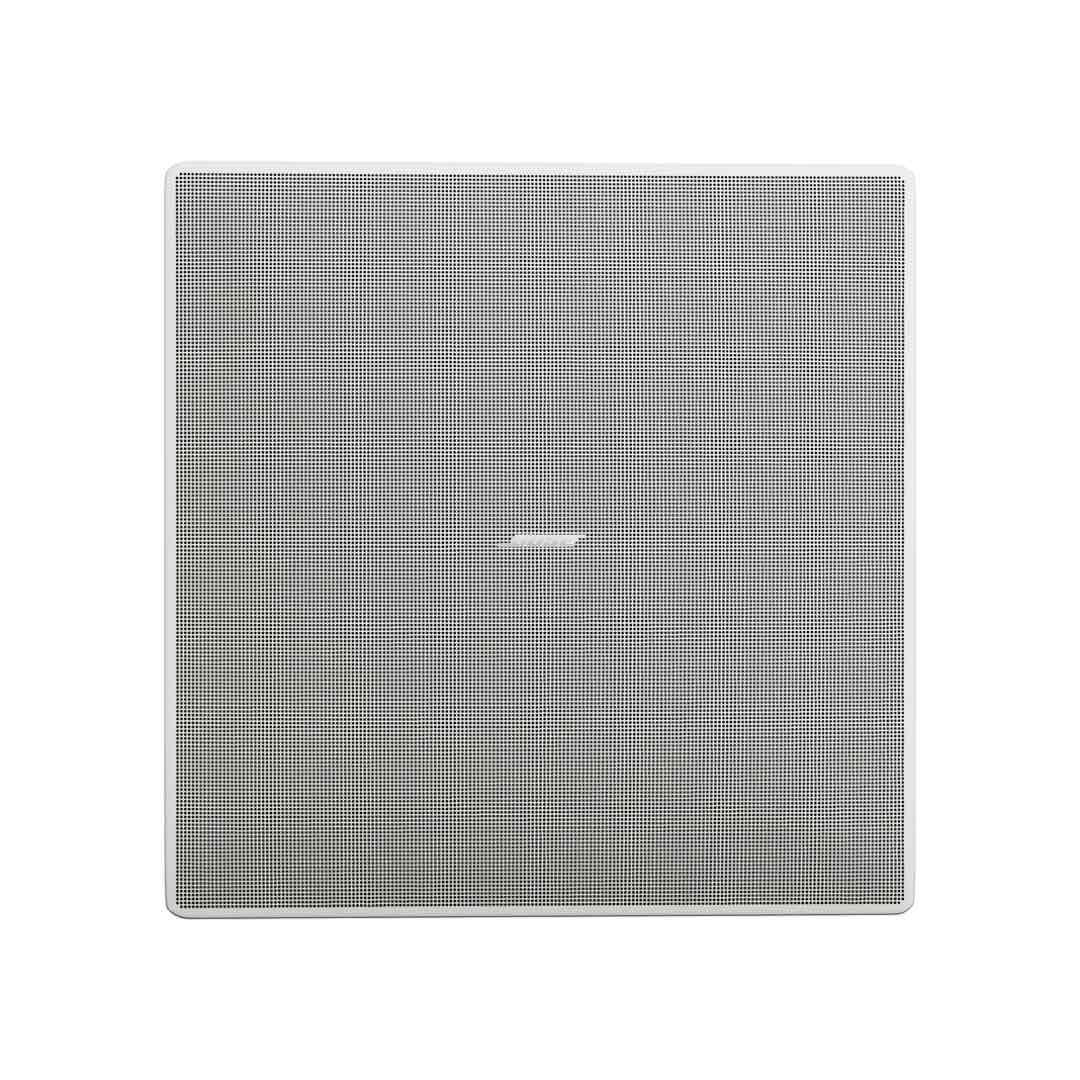

Bose Edgemax In-Ceiling Speaker EM180-LP - Image 2
, ,

Bose Edgemax In-Ceiling Speaker EM180-LP

Brands: Bose
Brands
  • Patented PhaseGuide technology evenly distributes sound throughout the space to ensure all listeners enjoy the same experience—regardless of their location
  • High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
  • In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound
  • Low-profile, lightweight backcan measuring only 4 inches in depth, allowing for easier installation and use in more ceiling constructions

$1,100.00

Designed for spaces with above-ceiling limitations and tighter clearances, the Bose Professional EdgeMax EM180-LP In-Ceiling Loudspeaker creates room-filling coverage patterns typical of larger surface-mount speakers with architect-preferred aesthetics well suited for retail stores, restaurants, bars, concourse, and transportation facilities as well as hospitality venues and resorts, houses of worship, and conference centers.

Designed to mount near wall/ceiling boundaries, the EdgeMax EM180-LP provides improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

PhaseGuide
Patented PhaseGuide technology directs sound asymmetrically into the room, creating coverage found in no other loudspeaker. The 180° horizontal coverage is ideal for wide coverage, while the EM90-LP offers 90° coverage for corner placement. With both speakers, you have both near-field and wide coverage, resulting in remarkable performance, directionality, and voice intelligibility.
Flexible, Room-Filling Coverage
EdgeMax loudspeakers can be installed at the room’s perimeter while still projecting sound inward for room-filling coverage. This means fewer units required compared to typical loudspeakers. And when installed near a wall, boundary-loading delivers impressive bass impact.
EdgeMax LP
The EdgeMax LP models feature a shallow 4″ backcan and wider 80° vertical coverage angle for spaces with above-ceiling limitations and tighter clearances. All EdgeMax models offer the same remarkable speaker quality and signature sound allowing integrators to mix-and-match different speakers for challenging installations with varying dimensions and obstructions.
FEATURES
  • Patented PhaseGuide technology evenly distributes sound throughout the space to ensure all listeners enjoy the same experience—regardless of their location
  • High-frequency compression driver and high-excursion woofer for exceptional audio quality and power
  • In-ceiling installation for minimum visual impact, with fewer units required to deliver uniform sound
  • Low-profile, lightweight backcan measuring only 4 inches in depth, allowing for easier installation and use in more ceiling constructions
  • In-ceiling mounting near room edges and corners (80° vertical coverage and 180° horizontal coverage)
  • Wall-boundary loading for greater bass response and performance
  • 2-way passive crossover with bypassable 70/100V transformer
  • Consistent voicing across the EdgeMax family
  • QuickHold spring-loaded mounting system for easy installs
  • Magnetically attached grille for quick access to wiring and tap settings
Categories: , , Tags: , , Brand:
Brands

Bose
Product Type

PA Speakers, Speakers, Ceiling Speakers
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
40 W RMS
80 W Program
160 W Peak
Constant Voltage / Transformer Taps
70 V
32 / 16 / 8 / 4 W or 8 Ohms Bypass
100 V
32 / 16 / 8 W or 8 Ohms Bypass
Impedance
8 Ohms
HF Driver
1x 1″ / 25.4 mm Asymmetrical Horn Compression Driver
LF Driver
1x 5.25″ / 133.35 mm
Frequency Range
45 Hz to 19 kHz -10 dB
Color
White
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
40 W RMS
80 W Program
160 W Peak
Constant Voltage / Transformer Taps
70 V
32 / 16 / 8 / 4 W or 8 Ohms Bypass
100 V
32 / 16 / 8 W or 8 Ohms Bypass
Impedance
8 Ohms
Drivers
HF Driver
1x 1″ / 25.4 mm Asymmetrical Horn Compression Driver
HF Voice Coil
1.3″ / 33.02 mm
LF Driver
1x 5.25″ / 133.35 mm
LF Voice Coil
1.5″ / 38.1 mm
Performance
Frequency Range
45 Hz to 19 kHz -10 dB
Frequency Response
50 Hz to 18 kHz ±3 dB
Maximum SPL
107 dB SPL (Continuous)
113 dB SPL (Peak)
Sensitivity
91 dB SPL
Coverage Angle
180° H x 80° V
Crossover
1 kHz
Connectivity
Inputs/Outputs
1x Block 6-Pin Speaker Input (Locking)
Physical
Certifications
UL
Color
White
Mounting
1x Ceiling Tile
Cutout Depth
3.9″ / 99.1 mm
Cutout Size
13.6 x 13.6″ / 345.4 x 345.4 mm
Dimensions
15.4 x 15.4 x 3.9″ / 391.2 x 391.2 x 99.1 mm
Weight
16.7 lb / 7.6 kg (with Grille)
Packaging Info
Package Weight
24.955 lb
Box Dimensions (LxWxH)
19.1 x 18.9 x 8.9″
