Electro Voice ELX200-12P

12″ Active Loudspeaker

The black Electro-Voice ELX200-12P is a 12″ 2-way 1200W powered speaker designed to provide dependable amplification, flexible installation, and convenient control for sound engineers and performers in live stage applications, theaters, DJ setups, and mobile rigs. It features 1200W of Class-D amplification, which drives a 12” woofer and a 1” titanium high-frequency compression driver, yielding a frequency range of 51 Hz to 20 kHz.

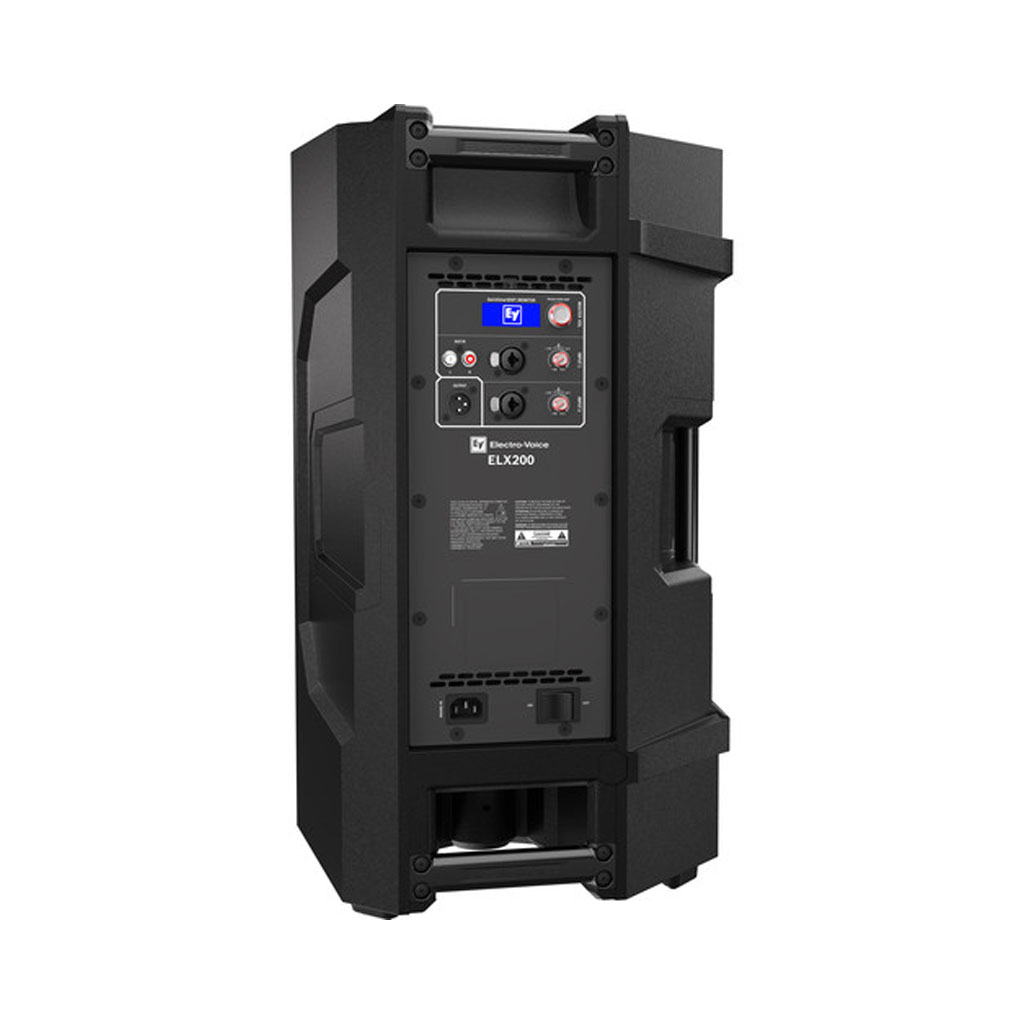

Connect balanced sources via two XLR-1/4” combo jack inputs; route an unbalanced stereo signal to the two RCA coaxial input jacks. Rear-panel knobs are provided for input levels and master volume. Onboard DSP offers four easy-setup presets, five user-programmable presets, 3-band EQ, and metering. Adjust parameters via the single-knob interface and LCD, or control the speaker via Bluetooth.

Its polypropylene enclosure and steel grille ensure a combination of durability and light weight. Three carry handles allow easy loading and unloading at gigs. Integrated pole mounts and three M10 suspension points enable versatile mounting and orientation. The ELX200-12P ships with a power cable.

FEATURES

• 12″ woofer, 1″ titanium high-frequency compression driver
• 51 Hz to 20 kHz frequency range
• 1200W of Class-D power amplification
• SST (Signal Synchronized Transducer) waveguide contributes to 90° x 60° coverage
• Two XLR-1/4″ combo jack inputs and a stereo RCA coaxial input
• Input level controls and master volume
• Onboard DSP functions include four easy-setup presets, five user-programmable presets, 3-band EQ, sub/top system-match crossovers, and metering
• Single-knob user interface with LCD
• Supports wireless control and monitoring via Bluetooth
• Polypropylene enclosure with steel grille
• Integrated carry handles, pole mounts, and suspension points
