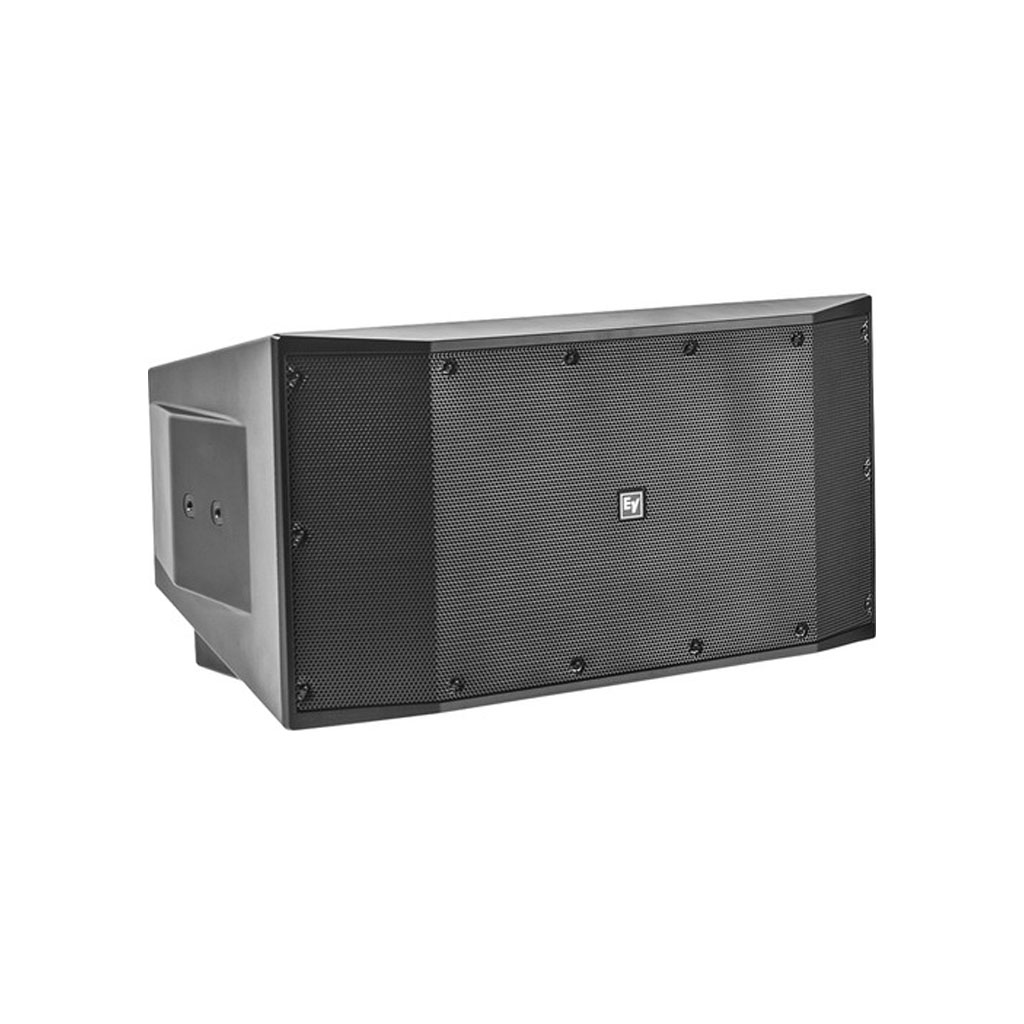

Electro-Voice EVID-S10.1D (Black)

Surface Mount Subwoofer

The black Electro-Voice EVID-S10.1D is a 2×10” subwoofer designed to provide low-end reinforcement for system designers, installers, and audio engineers configuring systems for background and foreground music in stores, clubs, eateries, schools, and more. It is IP54-certified for weather-resistant use outdoors and includes weather port covers that can be installed for compliance with IP65 standards. Installation versatility is offered via integrated U-bracket mounting points and M8 safety and flying points.

Removable, locking 4-pin Euroblock connectors allow for compatibility with commercial amplifiers and speakers. The two 10” high-excursion woofers yield a frequency response of 33 to 500 Hz and a 120 dB maximum SPL. A rear-panel switch allows for mono or stereo operation.

Dual 10″ high-excursion woofers yield a frequency response of 33 to 500 Hz

IP54-certified for enhanced weather resistance

Install supplied weather port covers for compliance with IP65 standards

1600W peak (400W continuous) power handling for 120 dB maximum SPL (126 dB peak)

Removable, locking 4-pin Euroblock connectors accept up to 12 AWG (2.5mm) wire size

Integrated U-bracket mounting points

Built-in M8 flying points and safety point

Logo can be replaced to match speaker orientation

Crossover and transformer input panels (available separately) may be installed for enhanced functionality with 8 Ohms or 70/100V systems

FEATURES

• Dual 10″ High-Excursion Woofers
• IP54-Certified for Weather Resistance
• IP65 with Supplied Cover Installed
• High Maximum SPL
• 33 to 500 Hz Frequency Response
• Removable Locking Euroblock Connectors
• Mono/Stereo Switch
• Integrated U-Bracket Mounting Points
• Built-In M8 Safety and Flying Points
