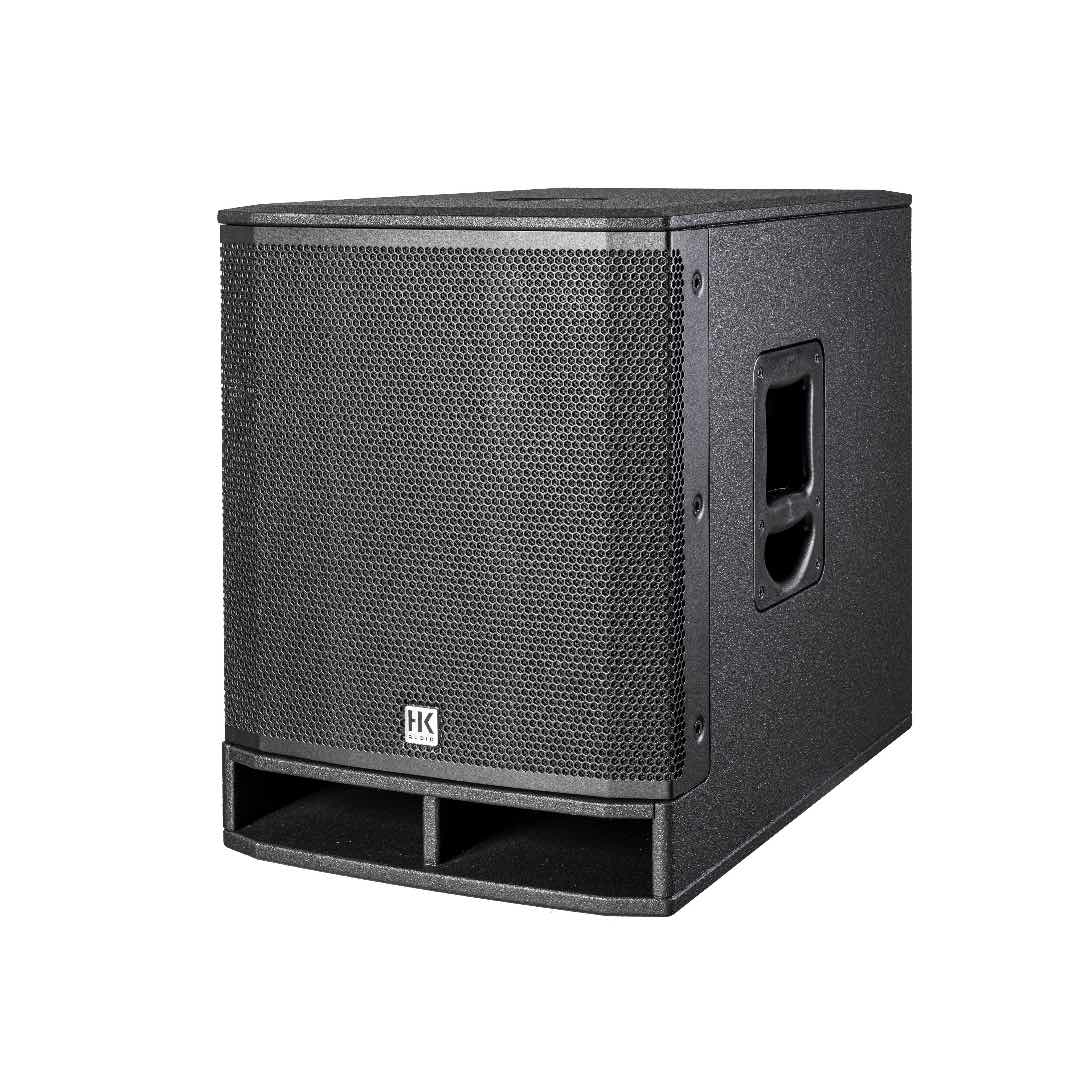

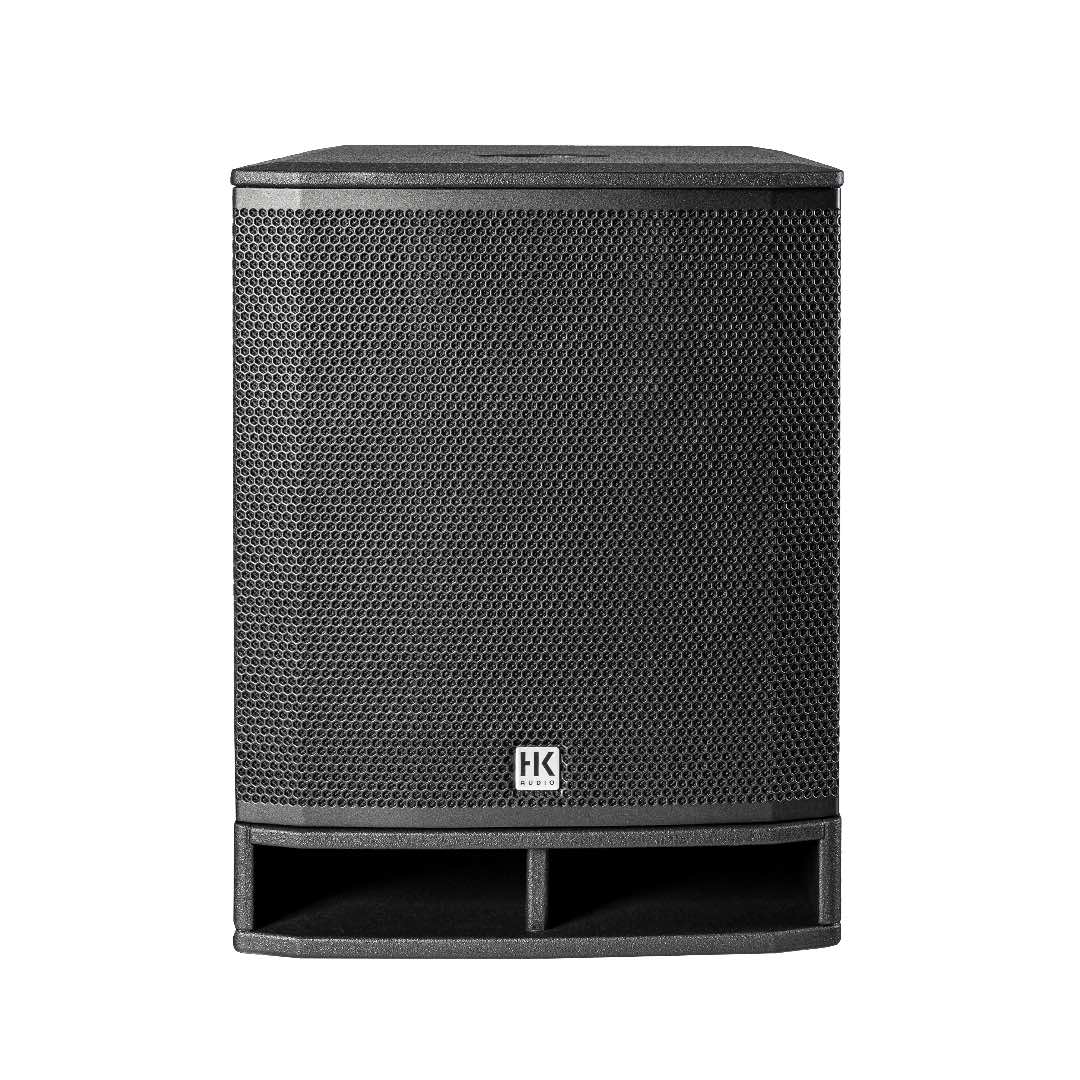

HK Audio PORTABLE SUB 115 A
Availability:
Out of stock
Brands: HK Audio
- Preset-based system adaptation for optimal integration
- Perfect extension for LUNAR, POLAR and SONAR systems
- 1,400 watts peak power, max. sound pressure level: 131 dB
- 15″ woofer for precise and punchy bass reproduction
$1,559.00
Out of stock
The PORTABLE SUB series delivers powerful, precise bass and a thoroughly thought-out system design. Developed as the perfect complement to the HK Audio LUNAR, POLAR and SONAR series, it excels wherever flexible integration, rapid deployment and reliable performance are required. With preset selection, the subwoofer adapts perfectly to different setups and ensures perfectly coordinated interaction – without any additional configuration effort.
FEATURES
- Preset-based system adaptation for optimal integration
- Perfect extension for LUNAR, POLAR and SONAR systems
- 1,400 watts peak power, max. sound pressure level: 131 dB
- 15″ woofer for precise and punchy bass reproduction
- 24-bit DSP for optimised performance and impulse response
- Integrated stereo preamp for 2.1 systems
- Input/Thru connections for flexible signal routing
- Gain control and polarity switch
- Robust wooden cabinet in a professional design
- Ergonomic MultiGrip carrying handles
- Made in Germany
- 5-year manufacturer’s warranty (upon registration)
| Brands | HK Audio |
|---|---|
| Product Type | PA Subwoofers, Speakers |
| Speaker Size | 15" |
| Analog input | 2 x XLR/jack combo symm. |
| Concept | Active subwoofer |
| Filter presets | LUNAR, SONAR, POLAR, General LPF 100 Hz |
| Max. SPL peak | 129 dB |
| Power amplifier output peak | 1400 W |
| Specification | Details |
|---|---|
| Product Type | Active Subwoofer |
| Cabinet Principle | Bass Reflex |
| Max. SPL Peak | 129 dB |
| Crossover Frequency | 100 Hz / 80 Hz (depends on preset) |
| Frequency Range (-6 dB) | 42 Hz – X-Over |
| Frequency Range (-10 dB) | 38 Hz – X-Over |
| Low-Frequency Driver | 1 × 15″ with 3″ Voice Coil |
| Crossover | X-Over with 24 dB/oct. |
| Index | 1 × Subwoofer @ 1 m, 10% THD, half space |

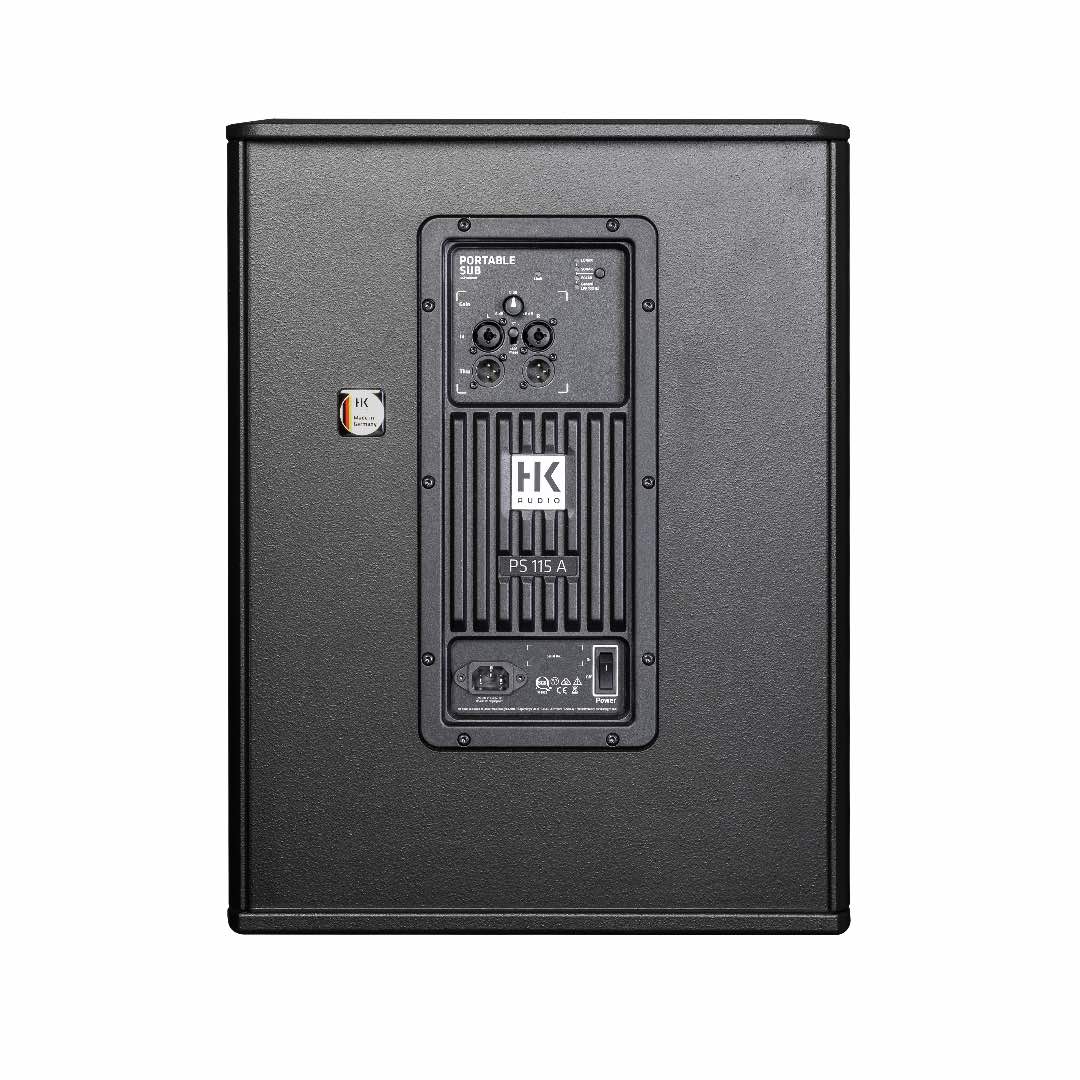

Connections
| Specification | Details |
|---|---|
| Power Supply | 1 × IEC Connector |
| Analog Input | 2 × XLR/Jack Combo, Balanced |
| Analog Output | 2 × XLR Thru, Balanced |
Electronic Data
| Specification | Details |
|---|---|
| Preamplifier | Stereo Preamp |
| Power Amplifier | Class D – Biamped |
| Power Amplifier Output (RMS) | 700 W |
| Power Amplifier Output (Peak) | 1,400 W |
| Power Consumption | 0.5 A / 220–240 V AC @ 1/8 output power; 0.9 A / 100–120 V AC @ 1/8 output power |
| Maximum Input Level | 20 dBu |
| Speaker Protection | Subsonic Filter, Peak and RMS Limiter |
| Sample Rate | 48 kHz |
| Latency | 2 ms – 3.3 ms (depends on preset) |
| Filter Presets | LUNAR, SONAR, POLAR, General LPF 100 Hz |
Mechanical Data
| Specification | Details |
|---|---|
| Cabinet Features / Rigging | 1 × M20 Pole Mount |
| Carrying Handles | 2 × MultiGrip |
| Cabinet Material | MDF |
| Cabinet Surface | Acrylic Enamel |
| Color | Jet Black (RAL 9005) |
| Front Grille | Steel Front Grille, Backed with Acoustic Foam |
| Dimensions (W × H × D), Metric | 43 × 56.5 × 63.8 cm |
| Dimensions (W × H × D), Imperial | 16-59/64 × 22-7/32 × 25-3/32 inches |
| Weight, Metric | 32.8 kg |
| Weight, Imperial | 72.32 lbs |
