JBL GSF3 (Hunter Green)


Brands: JBL
Brands
  • 0.8″ titanium dome tweeter with neodymium magnet assembly and Kapton voice coil
  • 3″ woofer with polypropylene cone and 1″ aluminum voice coil
  • Wide 74 Hz to 20 kHz frequency range
  • Can be paired with JBL GSB8 and GSB12 landscape subwoofers for extended bass response

$379.00

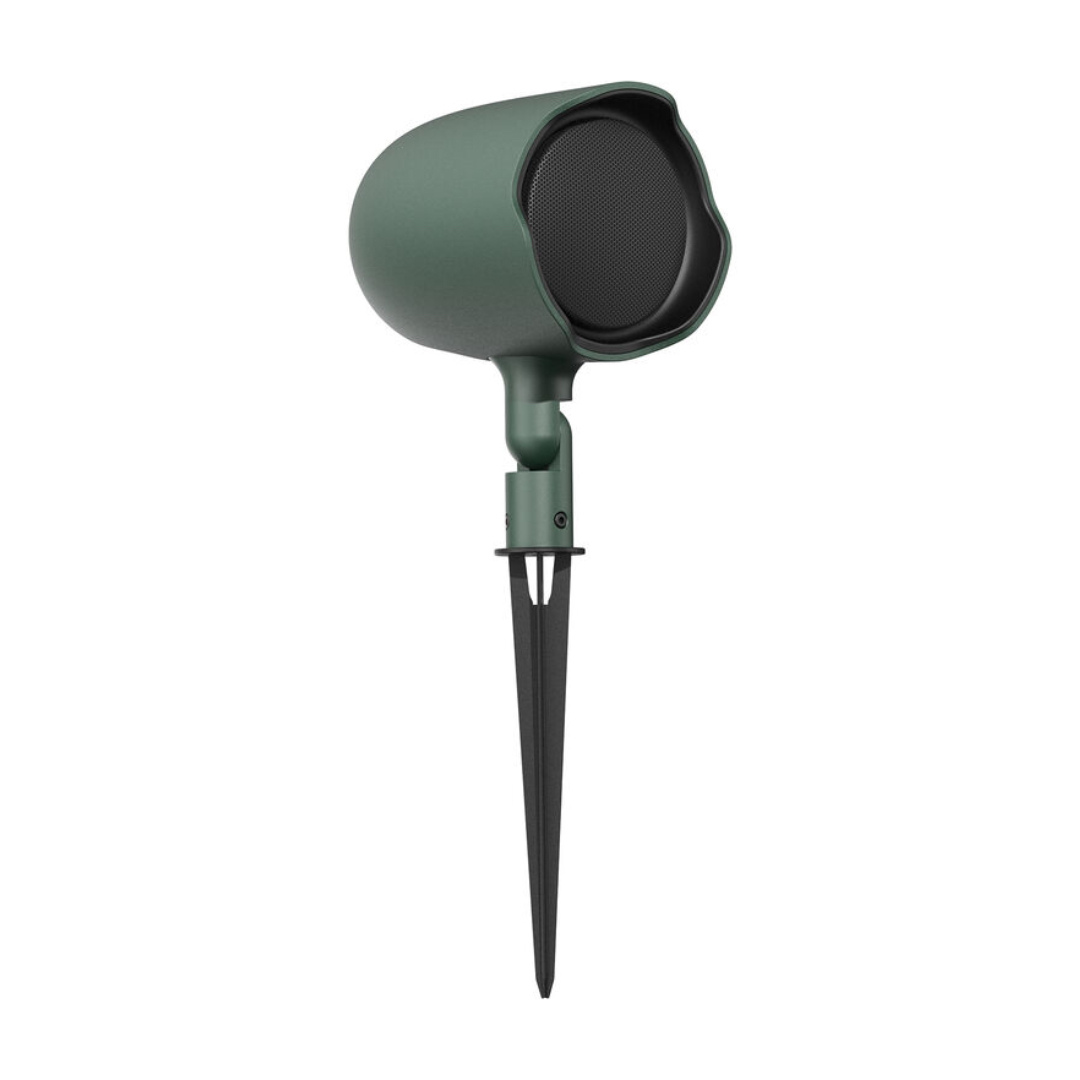

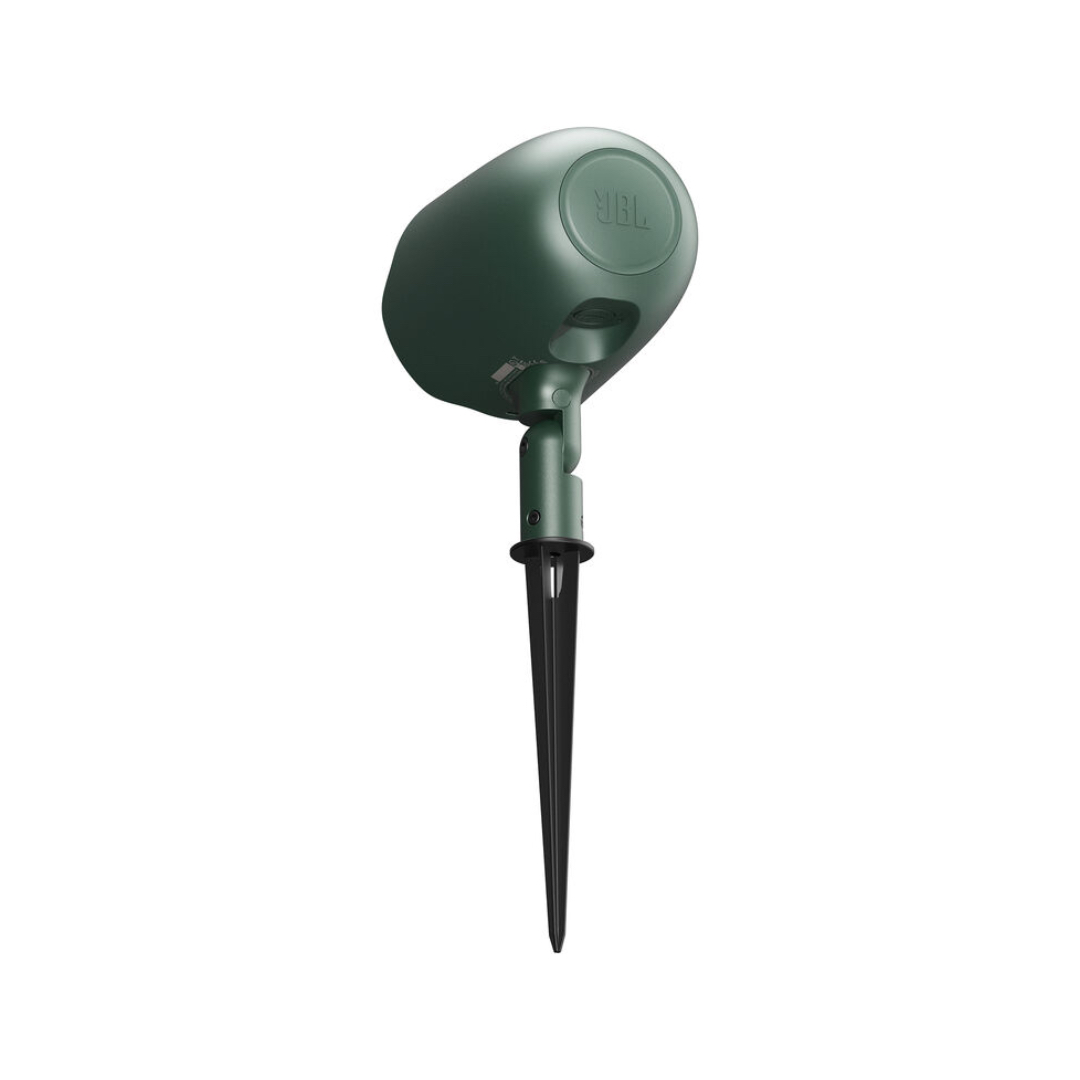

120W 3″ Ground-Stake Landscape Loudspeaker (Hunter Green)

When you need superior sound quality in a fixed, outdoor environment, look no further than the hunter green GSF3 Ground-Stake Landscape Loudspeaker from JBL, a two-way, coaxial, full-range outdoor loudspeaker with a 60W RMS power handling and a 15W multitap transformer that supports 8-ohm or 70/100V operation in distributed audio systems. With an IP66 weather rating for dust and water protection, a MIL-810STD protection from humidity, salt spray, temperature, and UV, and a clever drip hole below the drivers for water drainage, you never have to worry about leaving this speakers in virtually any outdoor environment.

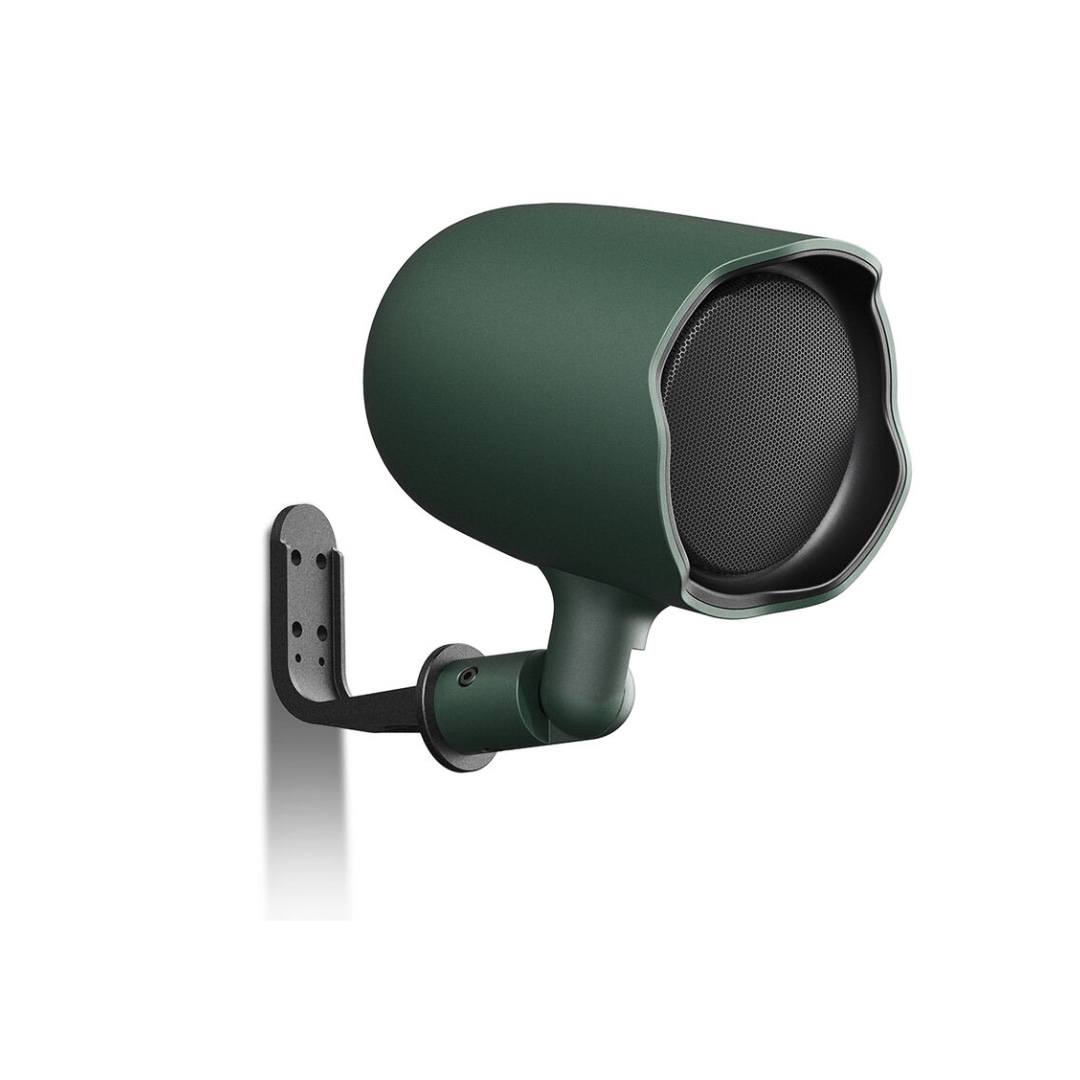

The GSF3 provides wide coverage of your environment, with 90° conical coverage, and can be aimed at desired targets via an adjustable hinge for ideal coverage. This discrete speaker is perfect for theme and public parks, shopping malls, sports venues, hospitality venues, and much more thanks to its robust build quality and high-fidelity sound. This loudspeaker includes a ground stake for easy mounting into the ground, and an L-bracket for convenient wall mounting.

Powerful Transducers
The GSF3 features versatile, quality drivers for optimal sound quality in any outdoor space.

FEATURES

  • 0.8″ titanium dome tweeter with neodymium magnet assembly and Kapton voice coil
  • 3″ woofer with polypropylene cone and 1″ aluminum voice coil
  • Wide 74 Hz to 20 kHz frequency range
  • Can be paired with JBL GSB8 and GSB12 landscape subwoofers for extended bass response
  • For Malls, Parks, and Sports Venues
  • Discrete Outdoor Loudspeaker
  • 60W Continuous Program, 120W Peak
  • 8-Ohm or 70/100V Operation
  • IP66 Rating for Dust and Water Ingress
  • Bottom Drip Hole for Drainage
  • Wide Coverage, Full-Range Sound
  • Can Be Aimed via Adjustable Hinge
  • Includes Ground Stake and L-Bracket
Categories: , Tags: , Brand:
Brands

JBL

Product Type

Speakers

Key Specs
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
60 W RMS
120 W Peak
Constant Voltage / Transformer Taps
70 V
15 / 7.5 / 3.8 W or 8 Ohms Bypass
100 V
15 / 7.5 W or 8 Ohms Bypass

Impedance
6.5 to 8 Ohms
HF Driver
1x 0.8″ / 2 cm Titanium Dome Tweeter
LF Driver
1x 3″ / 7.6 cm Polypropylene Woofer
Frequency Range
74 Hz to 20 kHz -10 dB
Color
Green
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
2-Way
Power Handling
60 W RMS
120 W Peak
Recommended Amplifier Power
15 to 120 W Peak
Constant Voltage / Transformer Taps
70 V
15 / 7.5 / 3.8 W or 8 Ohms Bypass

100 V
15 / 7.5 W or 8 Ohms Bypass
Impedance
6.5 to 8 Ohms
Transformer Wattage
15 W
Enclosure Type
Sealed
Drivers
HF Driver
1x 0.8″ / 2 cm Titanium Dome Tweeter
LF Driver
1x 3″ / 7.6 cm Polypropylene Woofer
LF Voice Coil
1″ / 2.5 cm
Magnet
HF:
Neodymium
Performance
Frequency Range
74 Hz to 20 kHz -10 dB
Frequency Response
120 Hz to 15 kHz ±3 dB
Maximum SPL
103 dB (Peak)
97 dB (Continuous)
Sensitivity
82 dB
Coverage Angle
90° (Conical)
Directivity
7.9 (Directivity/Q Factor)
9 dB (Directivity Index)
Connectivity
Inputs/Outputs
1x Wire Lead Speaker Input
Maximum Wire Gauge
18 AWG
Physical
Environmental Resistance
Dust/Water-Resistant (IP66 / MIL-STD-810)
Color
Green
Mounting
1x Bracket Point (Bottom)
Construction Material
ABS, Aluminum, Polycarbonate
Dimensions
6.6 x 5.2″ / 16.8 x 13.2 cm
Weight
3.8 lb / 1.7 kg
