JBL Pasion 10


Brands: JBL
Brands
  • Passive 3-way, bass-reflex full-range karaoke loudspeaker
  • 10” low-frequency woofer, dual 3” high-frequency tweeters and dual 3” mid-range tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Rated power of 200W and sensitivity of 90db offer unmatched output and sound quality

$966.00

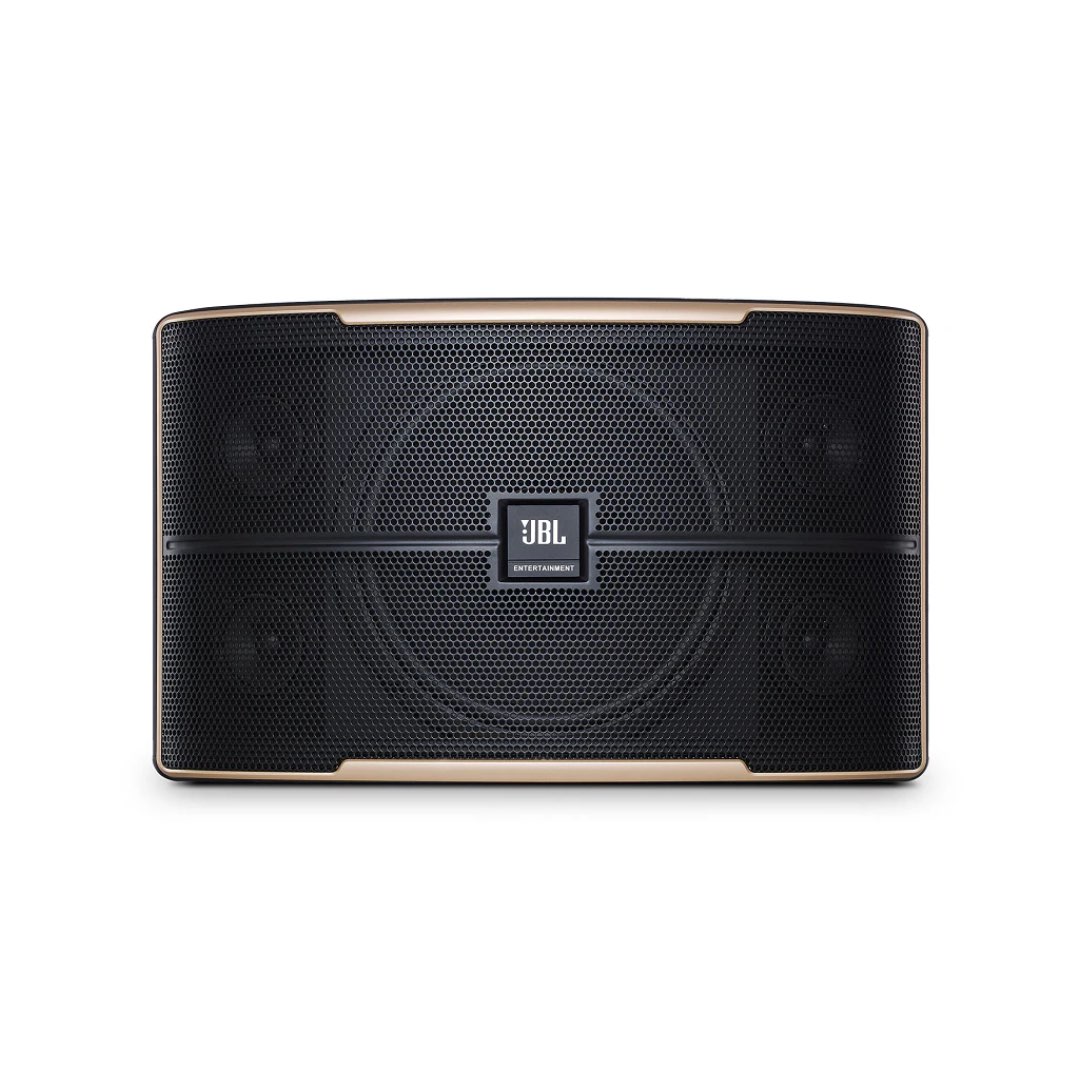

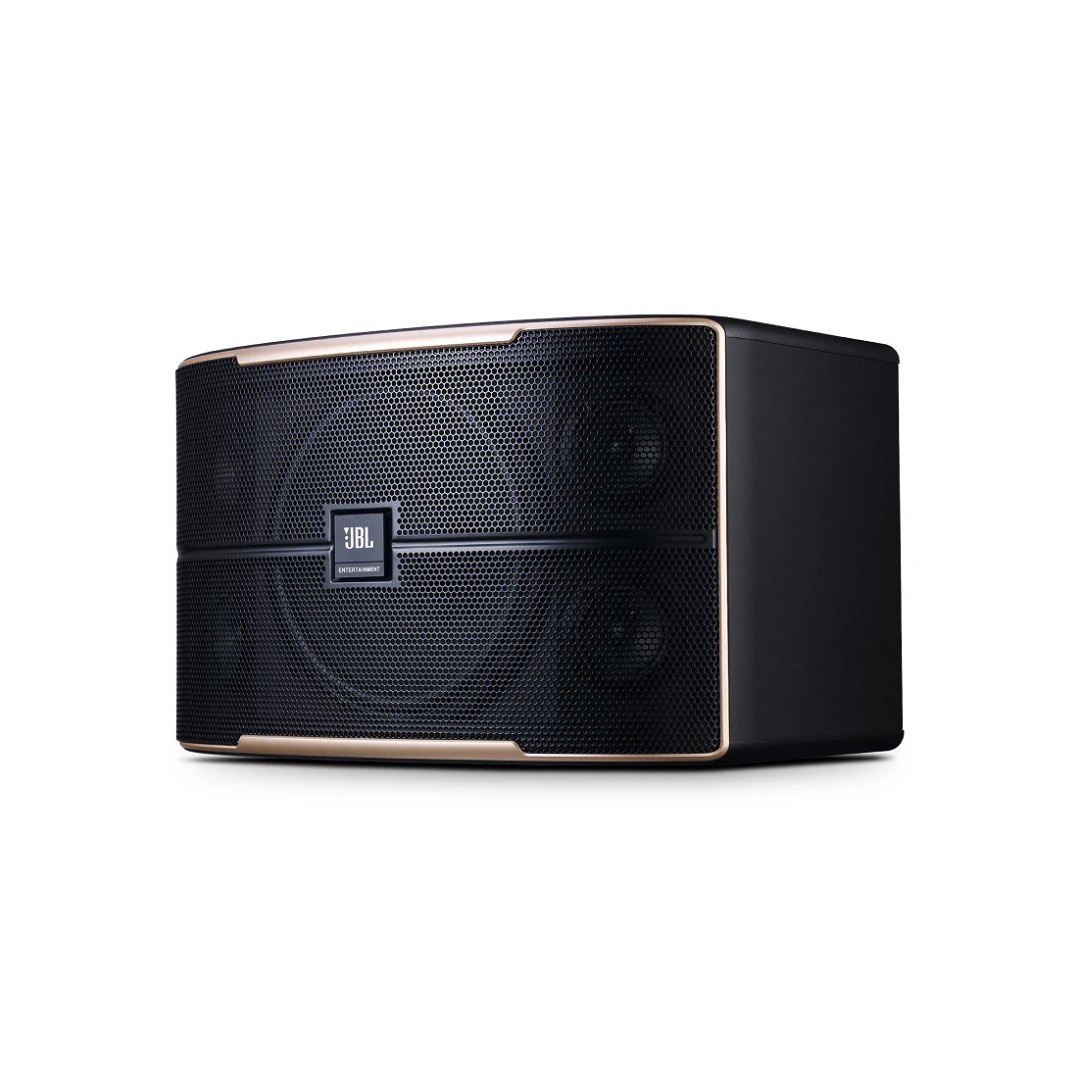

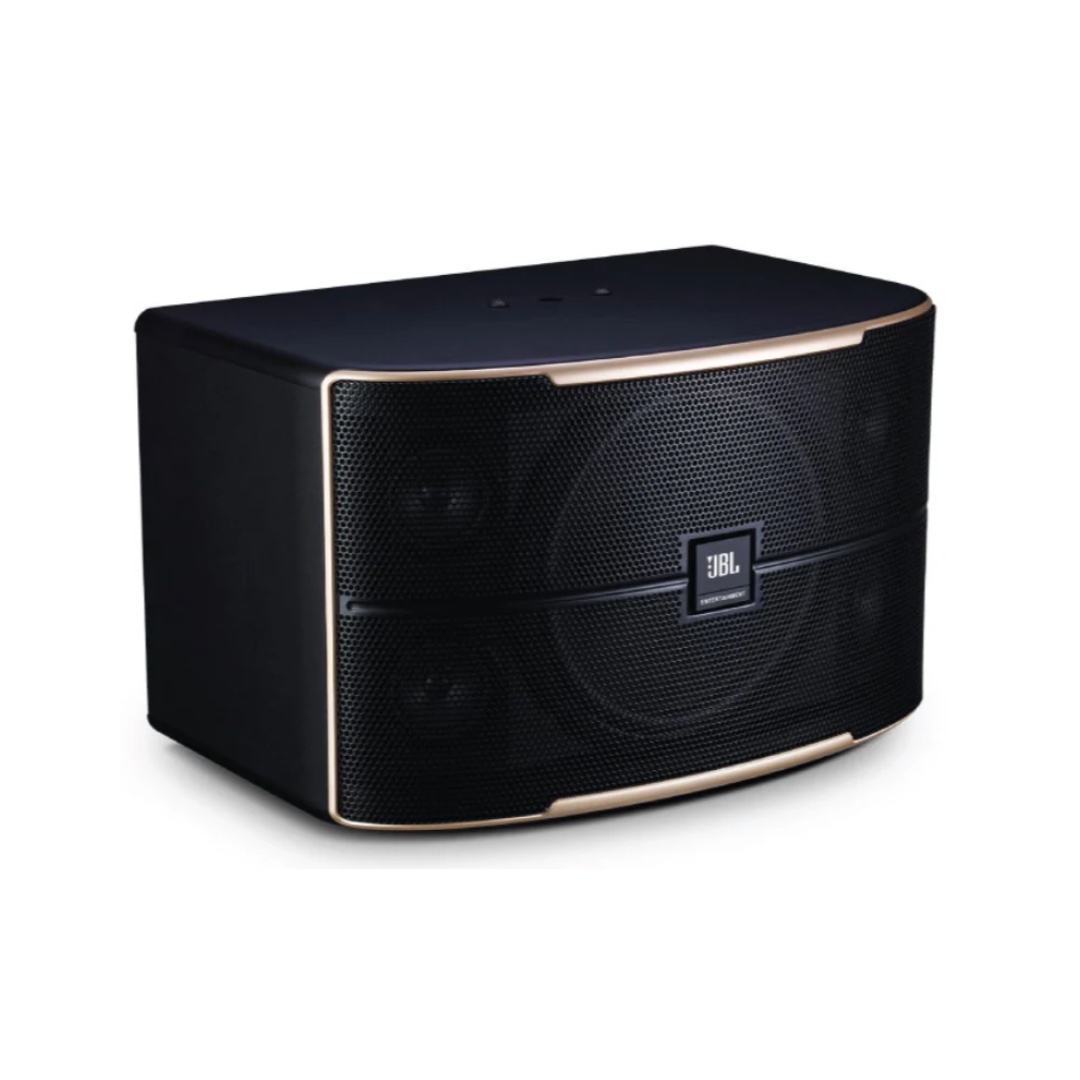

Passive 10” Full-Range Karaoke Loudspeaker

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 10 is a passive 10” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 10 continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 10 is perfect for a wide array of karaoke venues and applications. The Pasión 10 features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features four 3” high-efficiency tweeters that provide crystal-clear highs and mids, while the specially-designed 10” woofer offers high-power handling, low distortion and minimum power compression.

In addition to unmatched audio performance, the Pasión 10 features a premium, sleek design. Adding to the stylish look and feel, the loudspeaker features an illuminated JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 10 enhances KTV venues and provides karaoke-goers a memorable karaoke experience.

FEATURES

  • Passive 3-way, bass-reflex full-range karaoke loudspeaker
  • 10” low-frequency woofer, dual 3” high-frequency tweeters and dual 3” mid-range tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Rated power of 200W and sensitivity of 90db offer unmatched output and sound quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
  • PSL (Passive Sound Lighting) Technology illuminates the JBL Entertainment logo
Categories: , , Tags: , Brand:
Brands

JBL

Product Type

PA Speakers, Speakers

Speaker Size

10"

  • SYSTEM TYPE: 10″, 3-way, bass-reflex
  • FREQUENCY RANGE (-10 dB)1: 50 Hz – 17 kHz
  • FREQUENCY RESPONSE (±3 dB)1: 65 Hz – 14 kHz
  • SENSITIVITY (1W@1M)1: 90 dB
  • NOMINAL IMPEDANCE: 8 Ohms
  • MAXIMUM SPL2: 113 dB (119 dB peak)
  • POWER RATING3 (CONTINUOUS/PROGRAM/PEAK): 200 W/400 W/800 W
  • COVERAGE PATTERN: 120° × 90° (H × V)
  • DIMENSIONS (H × W × D): 292 mm × 521 mm × 320 mm 11.5 inch × 20.5 inch × 12.6 inch
  • NET WEIGHT: 11 Kg (24.3 lbs)
  • LF DRIVER: 1 × 10″ Woofer
  • HF DRIVER: 4 × 3″ Tweeter

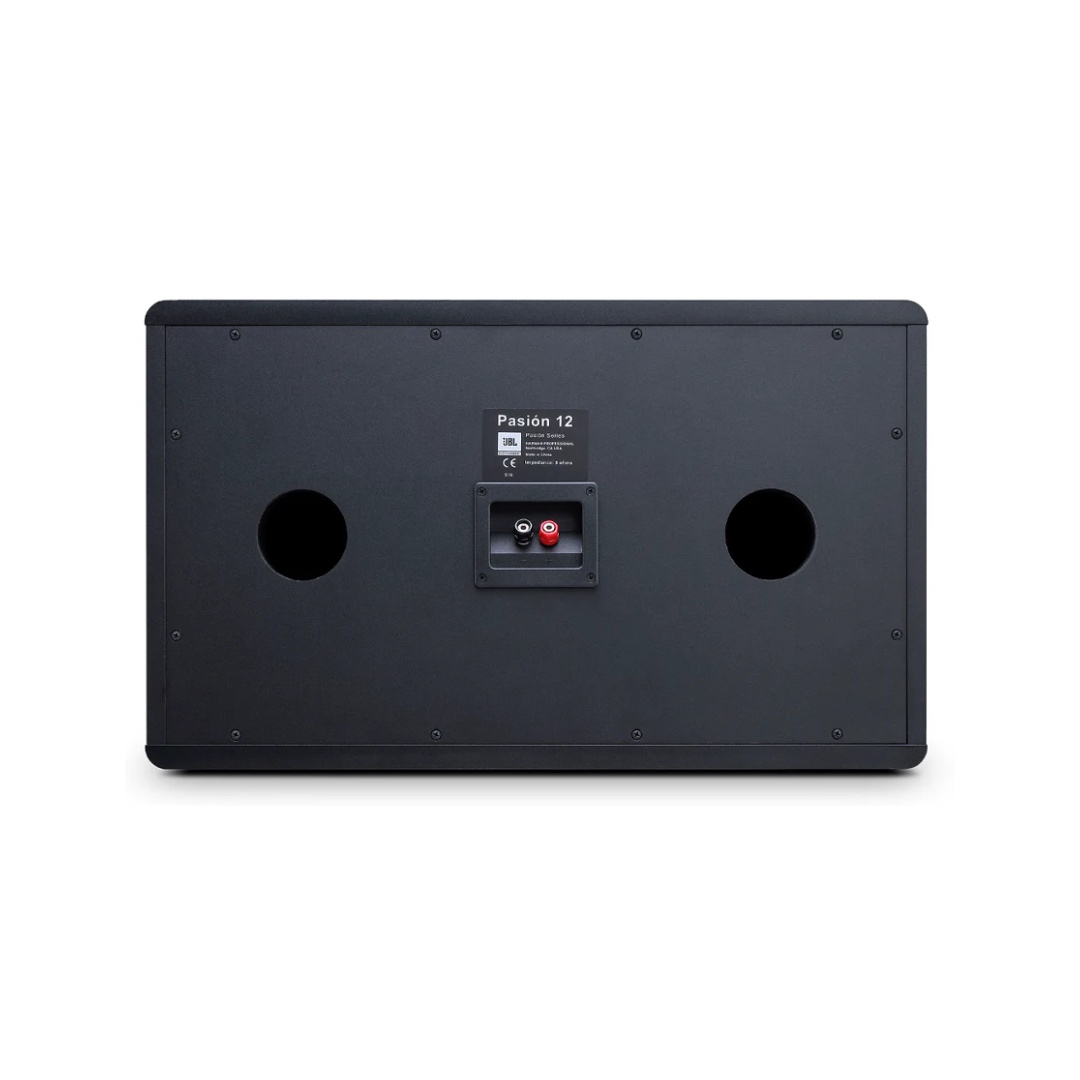

  • INPUT CONNECTORS: Binding Post
  • ENCLOSURE CONSTRUCTION: Vinyl covered MDF
