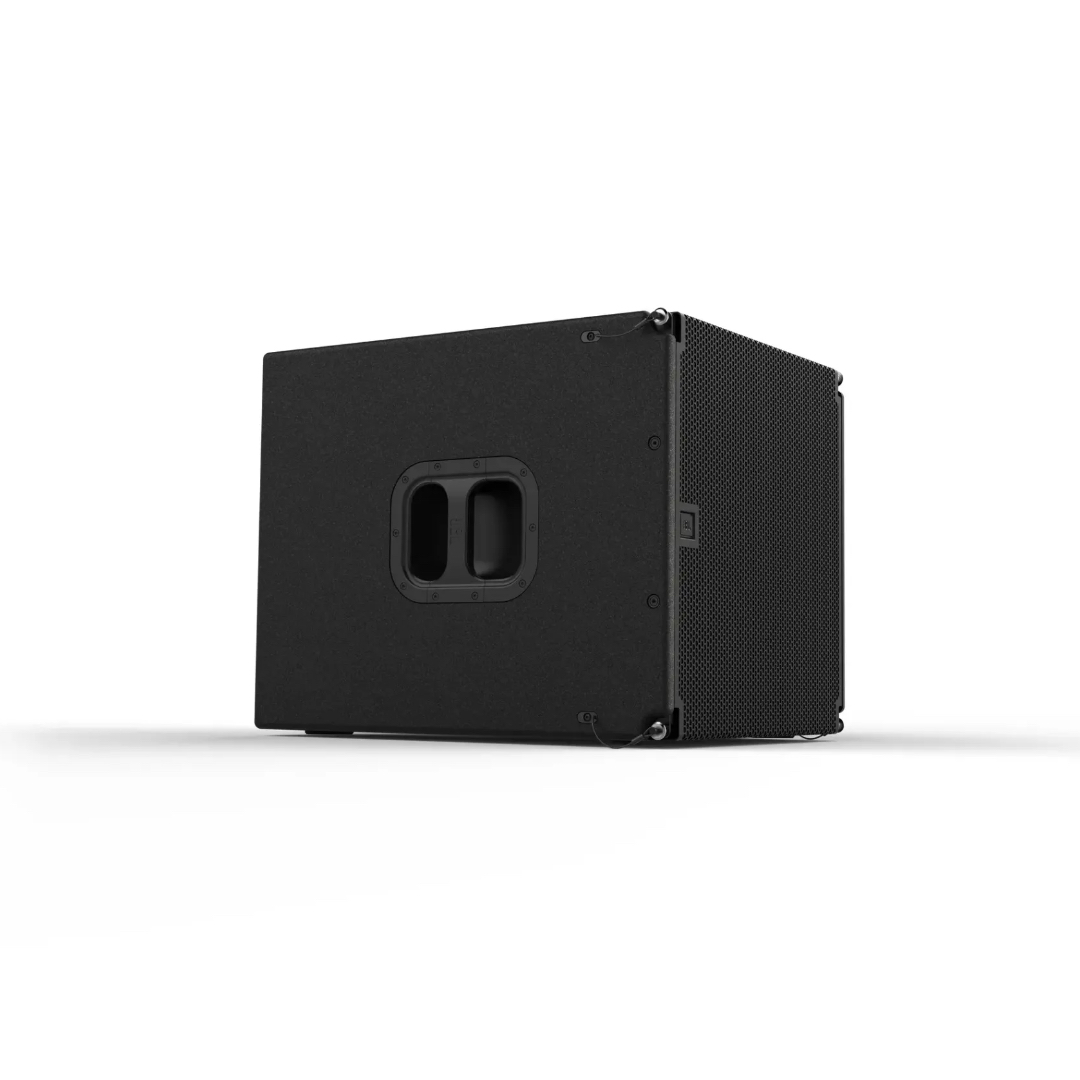

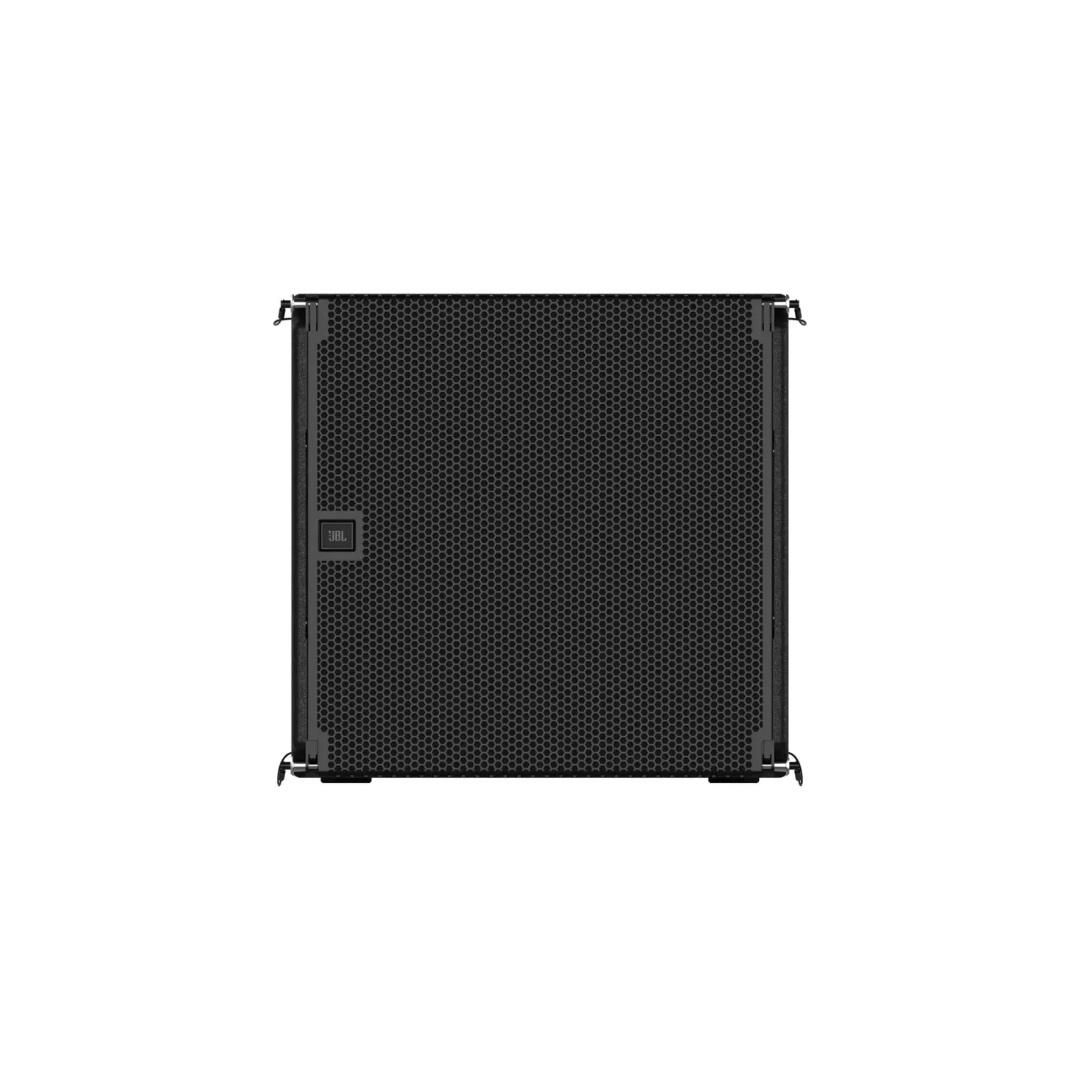

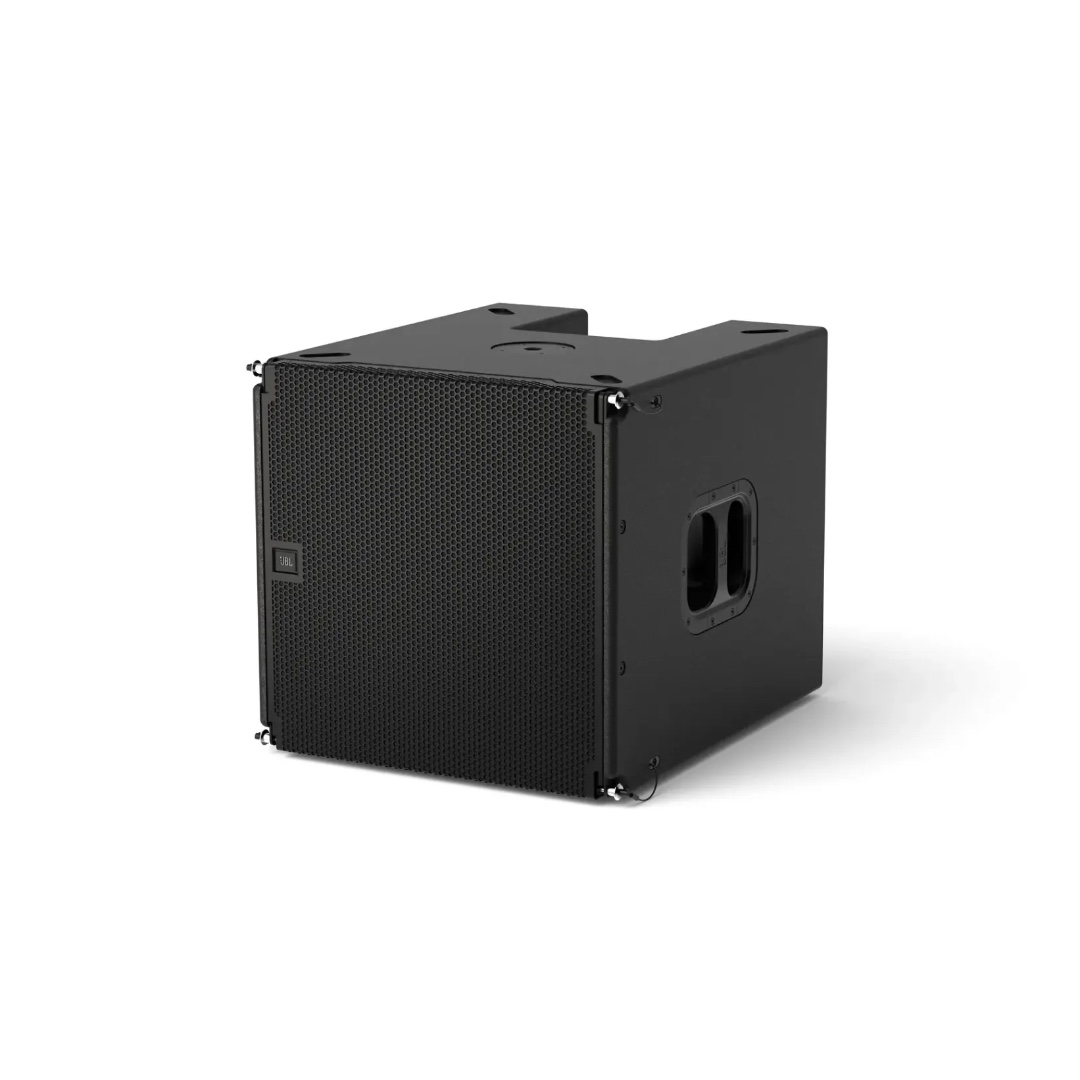

JBL Pro SRX915SF
JBL Pro SRX915SF - Image 2
JBL Pro SRX915SF - Image 3
, ,

JBL Pro SRX915SF

Brands: JBL
Brands
  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors

$6,129.00

15-inch Powered Flyable Subwoofer

The SRX915SF is a powered, flyable, single 15-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX915SF allows units to be suspended in standalone arrays or in combination with SRX906LA cabinets in mixed-array configurations.

The subwoofer houses a JBL 2276H 15-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world.

The SRX915SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS.

FEATURES

  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Complete control and configuration with JBL Performance software over HARMAN’s HControl protocol
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers
  • Rear-panel LCD provides access to control features
  • Reinforced birch plywood enclosures
  • M20 threaded mount for pole mounting or ground stacking full range components
  • Integrated three-point rigging system
Categories: , , Tags: , Brand:
Brands

JBL
Product Type

PA Subwoofers, Speakers
Speaker Size

15"
Key Specs
Frequency Range/Response
31 Hz to 100 Hz (-10 dB)
39 Hz to 80 Hz (-3 dB)
Speaker Type
Active Line Array Subwoofer
Enclosure Type
Bass-Reflex
Total Output Power
1100 W RMS / 2500 W Peak
Amplifier Class
Class-D
Drivers
LF Driver
2x 18″ / 45.7 cm Woofer
Voice Coil: Dual 3″ / 76.2 mm
Magnet: Ferrite
Performance
Frequency Range/Response
31 Hz to 100 Hz (-10 dB)
39 Hz to 80 Hz (-3 dB)
Maximum SPL
140 dB (Peak)
Signal Processing
EQ & Filters
No
Alignment Delay
Up to 2000 ms (2200′ / 670.56 m)
Digital Signal Processing
Delay, FIR Filter (Adjustable via Optional Software)
Connectivity
Audio I/O
2x XLR 3-Pin Line Input/Output
Network I/O
2x etherCON/RJ45 (Ethernet)
USB I/O
No
Wireless
No
Mobile App Compatible
No
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x powerCON TRUE1 Input
1x powerCON TRUE1 Output
Current Consumption
120 VAC: 4.8 to 18.2 A
240 VAC: 2.1 to 7.3 A
Physical
Color
Black
Mounting
Integrated Rigging
Handles
2x Each Side
Construction Material
Aluminum, Perforated Metal Grille, Plywood
Environmental Resistance
No
Dimensions
47.4 x 26.8 x 22.2″ / 1204 x 680.7 x 563.9 mm
Weight
155 lb / 70.3 kg
