Klark Teknik DN100V2
Klark Teknik DN100V2 - Image 2
Klark Teknik DN100V2 - Image 3
,

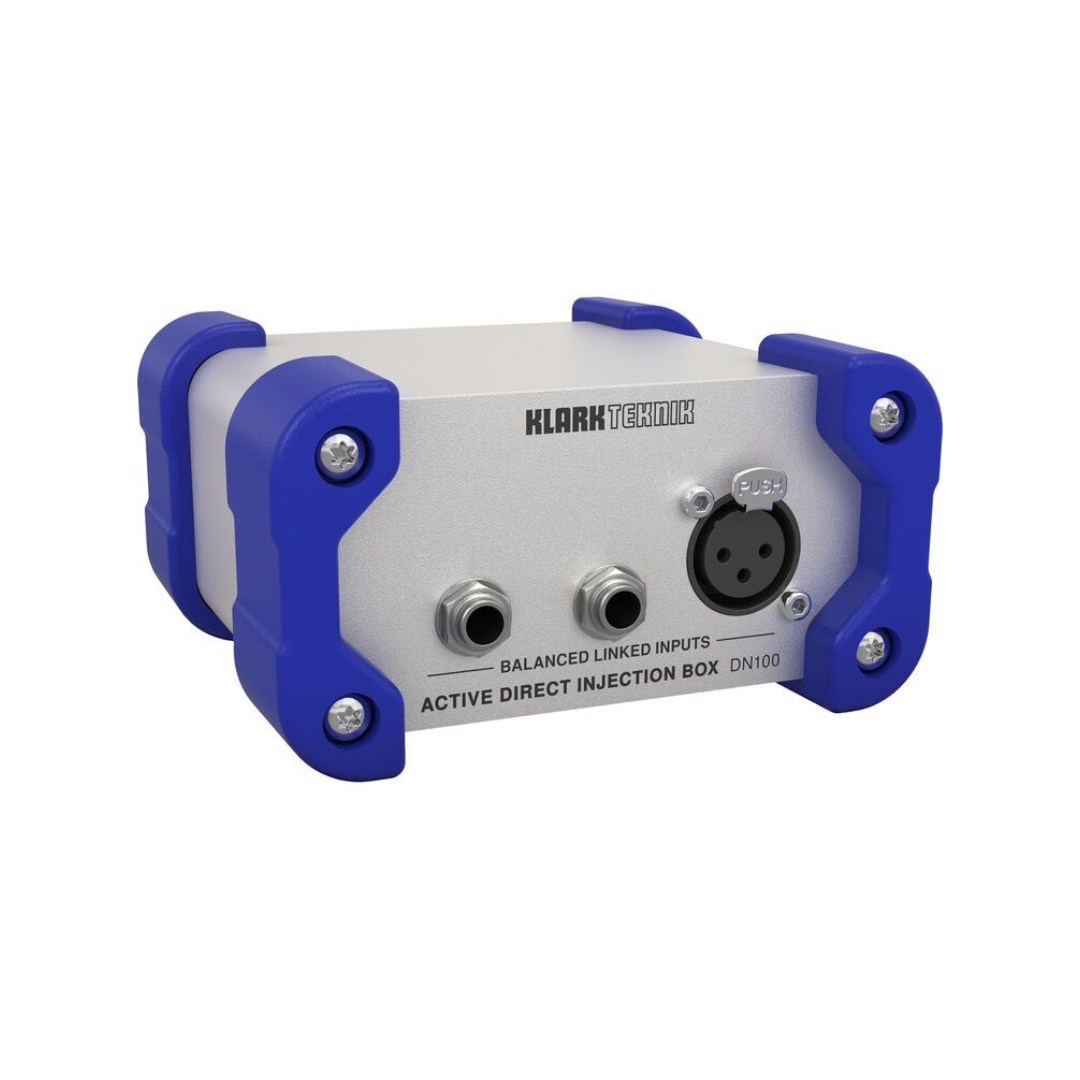

Klark Teknik DN100V2

Brands: Klark Teknik
Brands
  • For Professional Applications
  • 48V Phantom-Powered Operation
  • XLR and 1/4″ TRS Balanced Linked Inputs
  • 1/4″ TS Link-Through to Amplifier

$131.00

Active Mono Direct Box with Extended Dynamic Range

Instantly recognizable by its purple color scheme, the popular Klark Teknik DN100 V2 is an active mono DI box essential to any audio tool box for sound professionals working live onstage or in the studio. The DN100 V2 is intended for professional applications where +48V phantom power is a standard feature on all mixing consoles. Its innovative design results in a significantly higher clipping point than with traditional, active DI boxes, providing +10 dBu output into a 2 kilohms load.

With its high headroom, dynamic response, and sonic clarity, the DN100 faithfully reproduces the character of electric and acoustic instruments, and captures all the details of your musical performances. Built to handle the rigors of life on the road, the unit features a thick aluminum housing and tough bumper-type silicone rubber sleeves to protect the electronics.

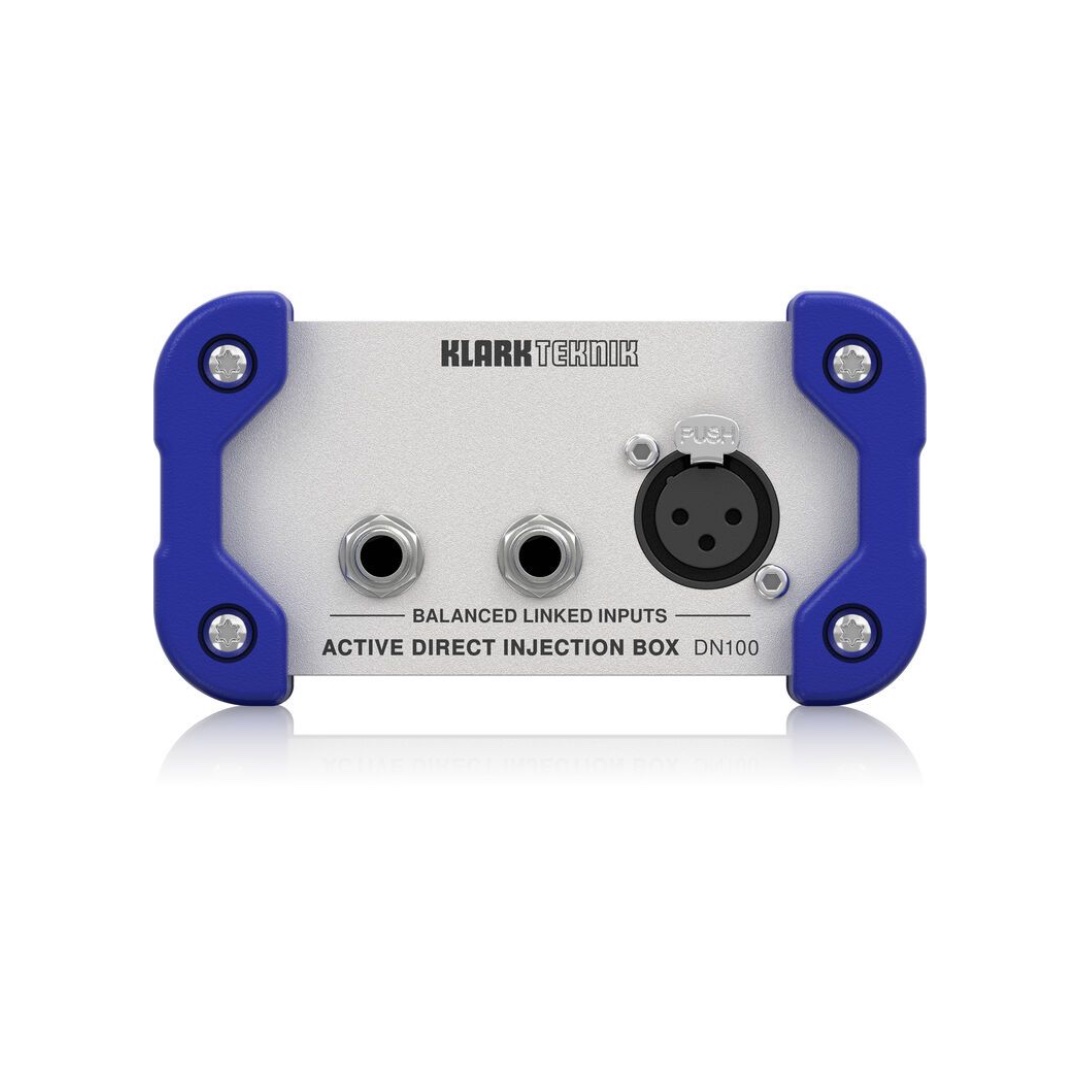

Balanced Linked Inputs
  • The DN100 V2 features one parallel-connected XLR and two 1/4″TRS inputs, one which may also be used as a link output for connection to a guitar or bass amplifier.
  • Connect line-level equipment to either the ¼” TRS or XLR inputs, which have an input impedance of 20 kilohms and offer low-noise performance.
  • When only the XLR input is used, an impedance of 20 kilohms optimizes use with line-level sources, otherwise a nominal impedance of 1 megohm is ideal for instrument pickups.
  • The other ¼” connector can be used as a link-through to pass the signal to an amplifier
Balanced Transformer-Isolated Output with Ground Lift
  • Care was taken in the design of the DN100 to avoid audio-transformer core saturation.
  • A fixed high-pass filter has been included in the signal path to roll off frequencies below those that are musically important (DN100 V2 still maintains a frequency response of ±0.5 dB at these lowest musical notes).
  • DN100 V2 also features a transformer to isolate the power rails to the input circuit from the phantom-power supply sourced from the output XLR connector.
  • When used in conjunction with the ground-lift switch, this full galvanic isolation of input and output interfaces ensures that any risk of ground loops is avoided when taking a direct feed from stage backline equipment.
Dual-Impedance Inputs
  • A custom instrumentation-grade input circuit was designed for the DN100 V2 using an advanced analog design to create the correct input impedance required by passive guitar and bass pickups, while keeping the actual component values low to minimize noise.
  • This design delivers a very low noise floor, which combined with the high clipping point creates an impressive dynamic range for a +48V phantom-powered DI Box.

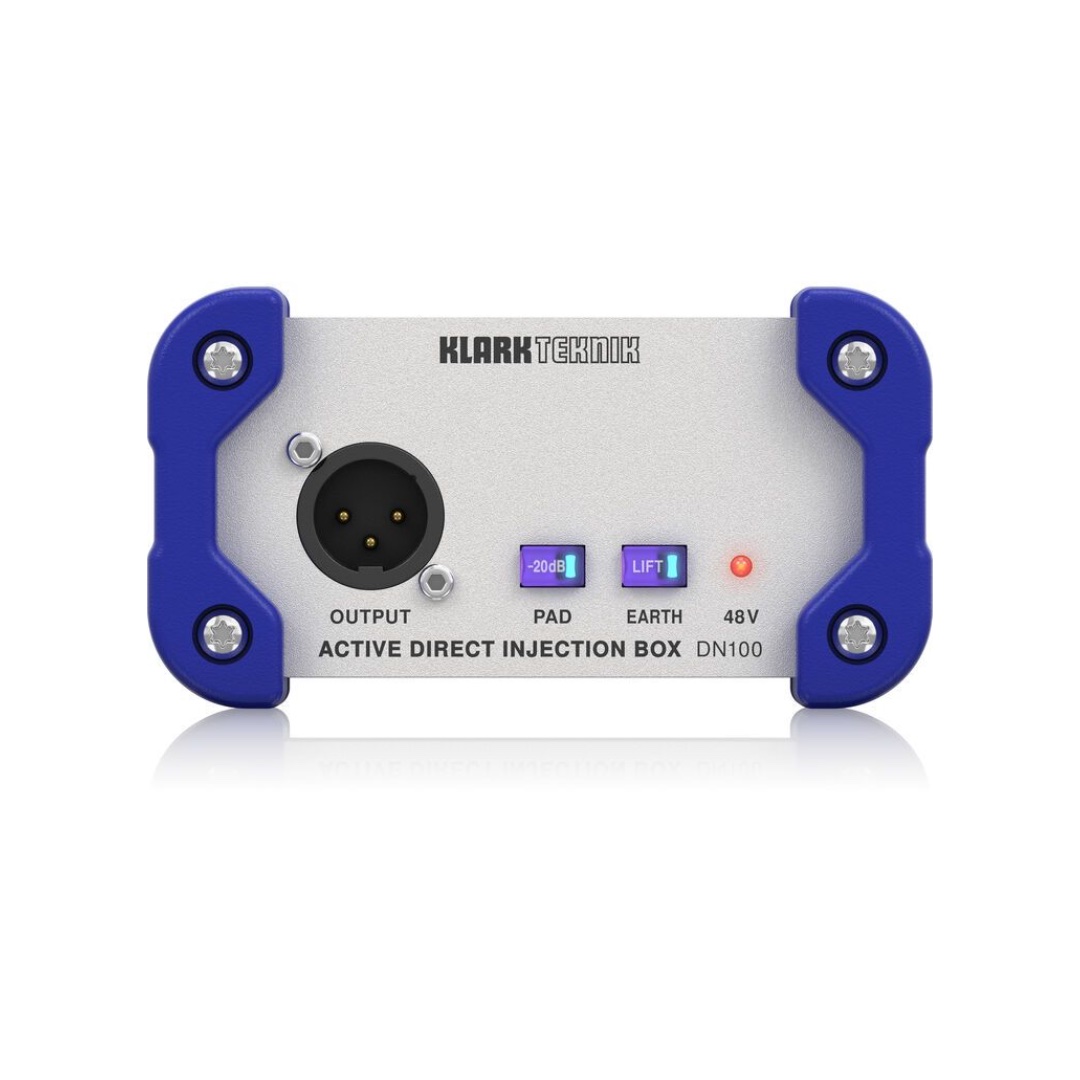

Illuminated 20 dB Pad and Ground Lift Switches
  • DN100 features illuminated Pad and Ground Loop switches, which along with the +48V phantom power indicator LED, provide at-a-glance status display, even at wide distances and viewing angles.
  • When used in conjunction with the ground-lift switch, this full galvanic isolation of input and output interfaces ensures that any risk of ground loops is avoided when taking a direct feed from stage backline equipment.

FEATURES

  • For Professional Applications
  • 48V Phantom-Powered Operation
  • XLR and 1/4″ TRS Balanced Linked Inputs
  • 1/4″ TS Link-Through to Amplifier
  • Balanced, Transformer-Isolated XLR Out
  • -20 dB Pad, Ground Lift
  • Durable, Thick Aluminum Housing
  • Protective Silicone Rubber Bumpers
Categories: , Tags: , Brand:
Brands

Klark Teknik
Product Type

DI Box
General
Item Type
Standard DI
Number of Channels
Single-Channel
Active/Passive
Active
Circuitry
Solid-State
Preamp
Pad
-20 dB
Ground Lift
Yes
Polarity Reverse
No
EQ & Tone Shaping
Low-Cut/High-Pass Filter
No
Connectivity
Audio I/O
1x XLR 3-Pin Balanced Input
1x 1/4″ TRS Balanced/Unbalanced Input
1x XLR 3-Pin Balanced Output
1x 1/4″ TS Unbalanced Thru
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB (10 Kiloms Load)
Maximum Input Level
+35 dBu
Input Impedance
1 Megohm (Balanced/Unbalanced)
20 Kilohms (XLR Only)
Output Impedance
50 Ohms
Signal-to-Noise Ratio
-103 dBu (22 Hz to 22 kHz Unweighted, with Input Terminated by 10 Kiloms Resistor)
Power
Operating Voltage
48 V (Phantom Power)
Physical
Dimensions
4.7 x 4.4 x 2.5″ / 11.9 x 11.2 x 6.4 cm
Weight
0.97 lb / 0.44 kg
Packaging Info
Package Weight
1.065 lb
Box Dimensions (LxWxH)
5.5 x 4.8 x 2.8″
