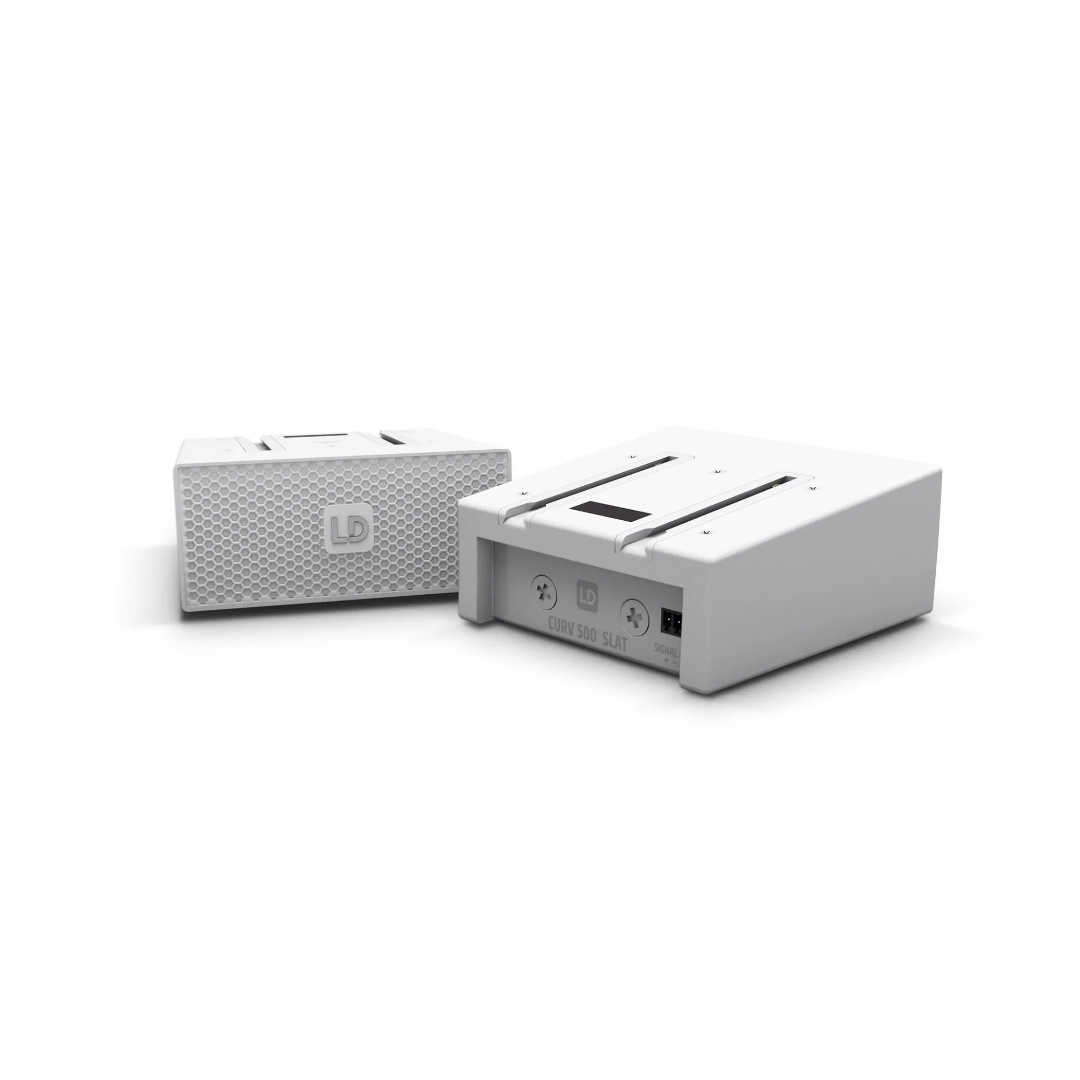

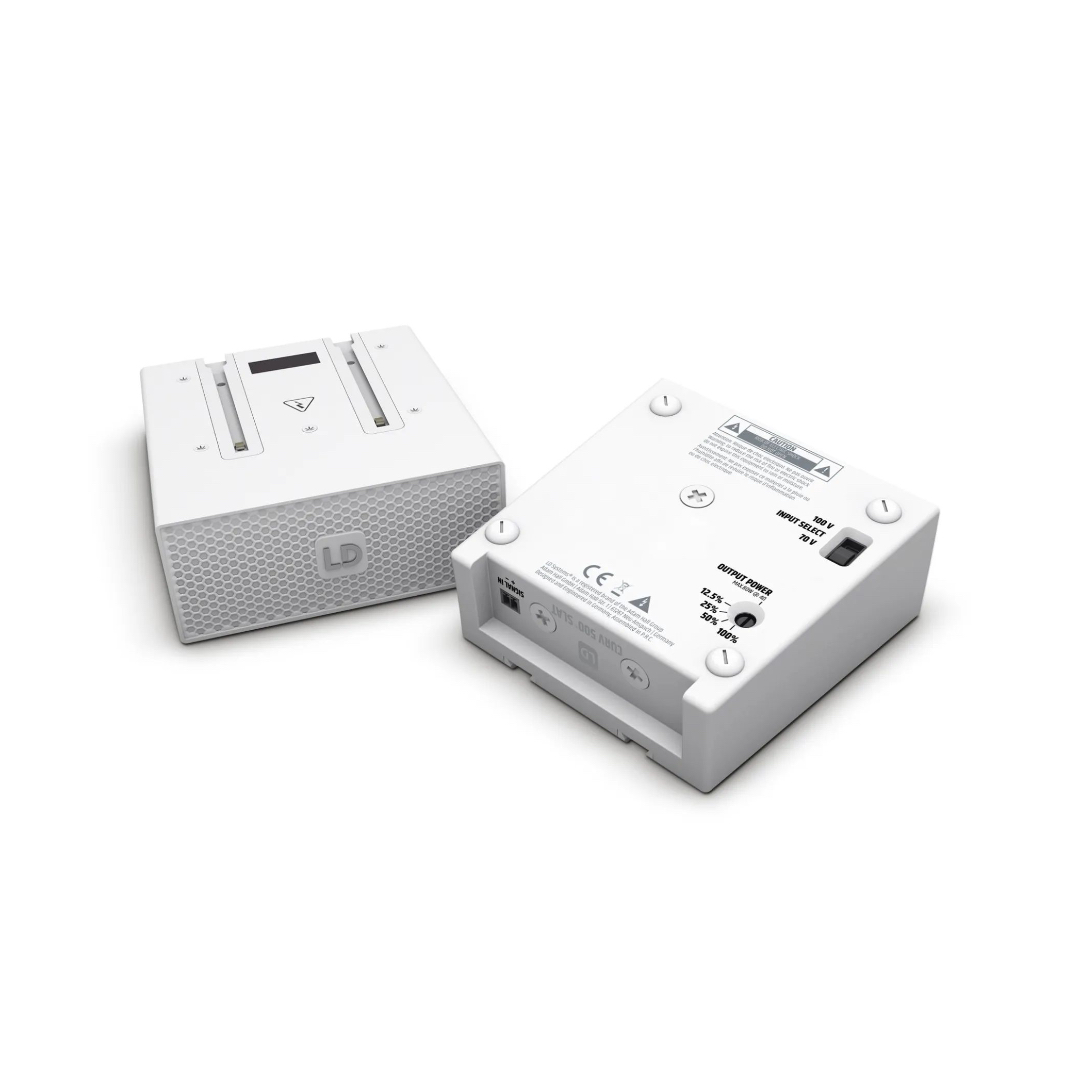

LD Systems CURV 500 SLA T (White)
LD Systems CURV 500 SLA T (White) - Image 2
,

LD Systems CURV 500 SLA T (White)

Brands: LD System
Brands
  • 70 / 100 V SmartLink® adapter for up to 6 LD CURV 500® satellites.
  • Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
  • 2-pin input for screw connector
  • Switchable for 70 or 100 V operation

$209.00

This version of the SmartLink® adapter allows up to 6 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.

FEATURES

  • 70 / 100 V SmartLink® adapter for up to 6 LD CURV 500® satellites.
  • Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
  • 2-pin input for screw connector
  • Switchable for 70 or 100 V operation
  • Special accessories for mounting on walls and ceilings
Categories: , Tags: , , Brand:

Specifications

Brands

LD System
Color

White
Specification Details
Product Type PA Complete Systems Accessory
Type SmartLink® Adapter
Model / Item No. LDCURV500SLAWT
System LD Systems CURV 500®
Application 70 / 100 V ELA installation
Compatible Satellites Up to 4 CURV 500® satellites
Transformer Integrated
Output Taps 10 W / 20 W / 40 W / 80 W @ 4 Ω
Voltage Operation Switchable 70 V / 100 V
Input 2-pin screw / plug-in terminal
Material Die-cast aluminium
Surface Powder-coated
Color White
Width 122 mm
Height 57 mm
Depth 122 mm
Weight 1.15 kg
Mounting 2 × M6 threads for optional wall/truss mounting
Desktop Use 4 rubber feet
SmartLink® System Yes
