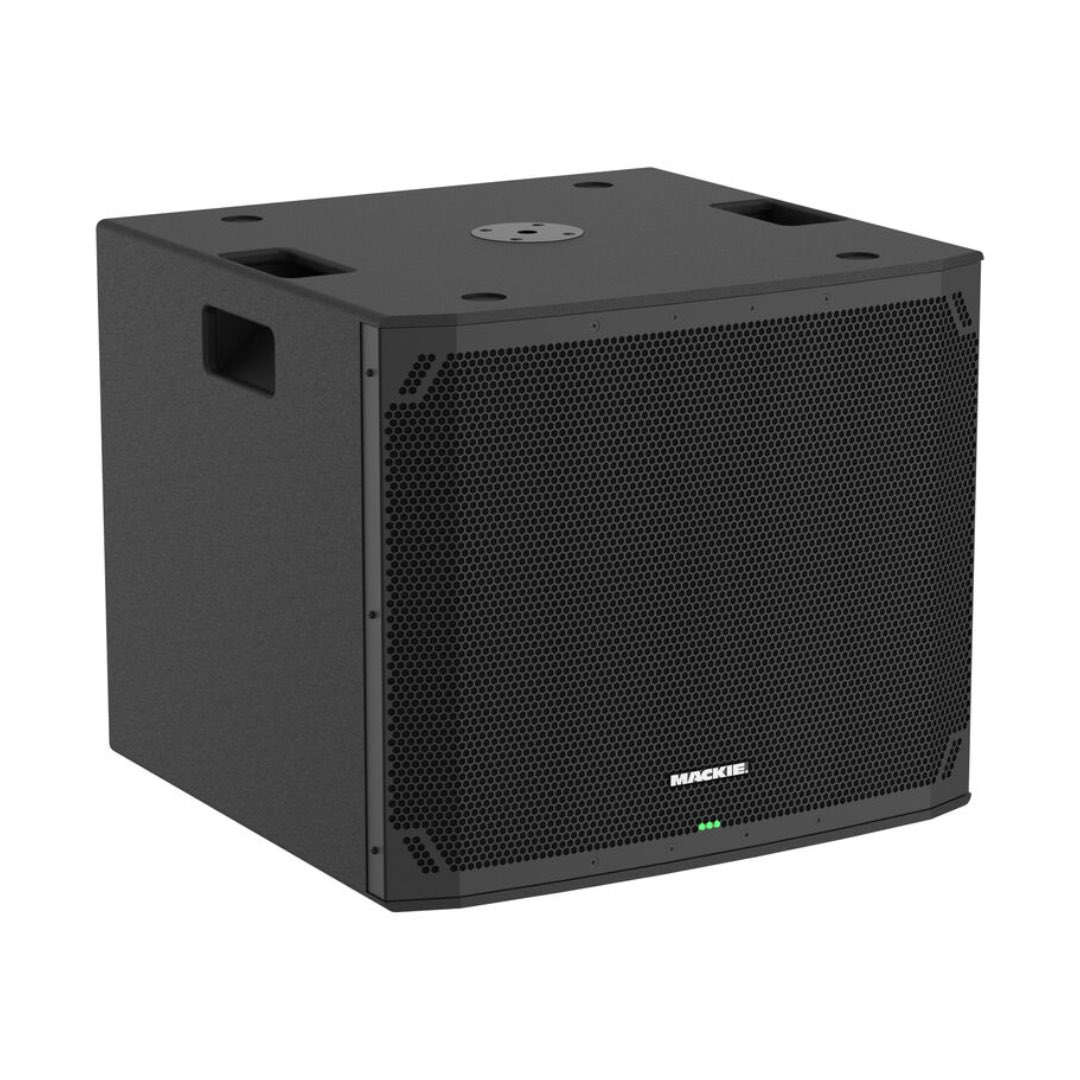

Mackie Thump18Sv4 18"

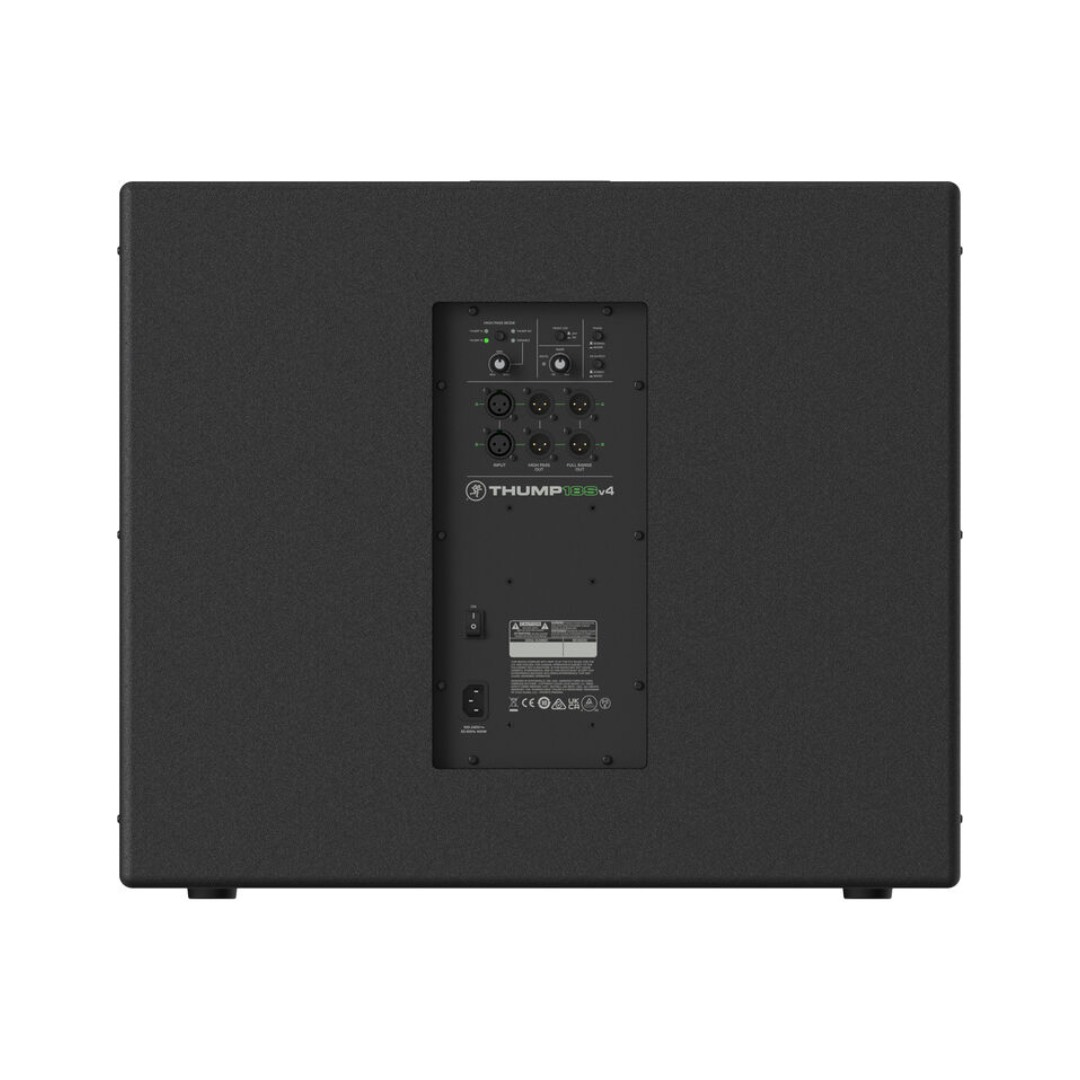

Mackie Thump18Sv4 18" - Image 2

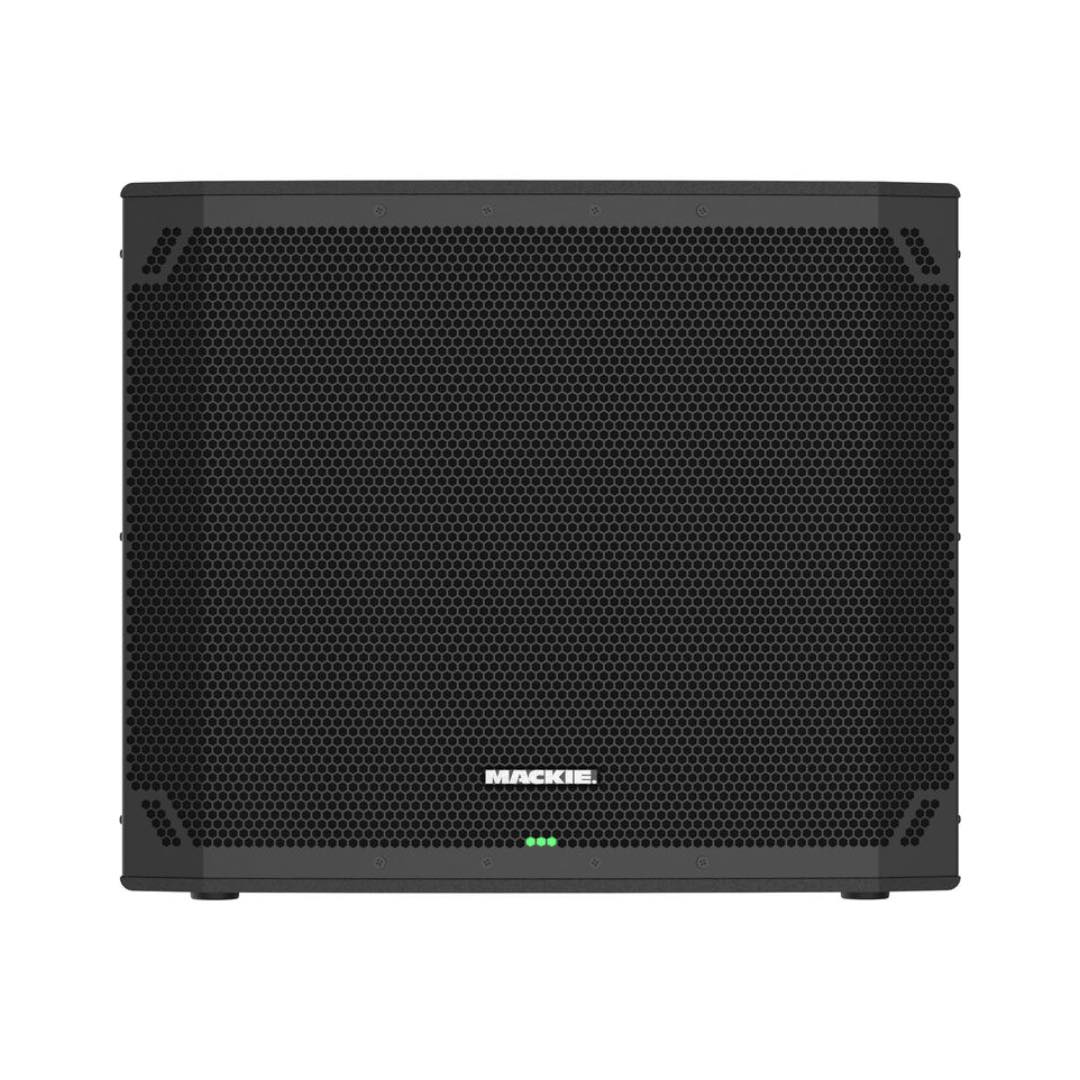

Mackie Thump18Sv4 18" - Image 3
, ,

Mackie Thump18Sv4 18″

Brands: Mackie
Brands
  • Portable Subwoofer
  • Two XLR Inputs
  • Two High-Pass XLR Outputs
  • Two Full-Range XLR Outputs

$1,285.00

Professional 1400W Powered Subwoofer

Shake the floorboards while generating massive bass with the Mackie Thump18Sv4, a professional 18″ powered subwoofer well suited for any sound application requiring deep, full-range sound with visceral low end. Feel the difference of a professional subwoofer that brings music alive with complex bass lines and punchy kicks.

Thump18Sv4 integrates perfectly with Thump loudspeakers, with high-pass modes that tailor the sound to match the size of your speakers. You can also set the crossover manually for more control over your sound. Built-in carry handles make Thump18Sv4 portable enough to add to your touring rig or gigging setup.

Benefits
  • 1400W ultra-efficient Class-D amplifier
  • 18” high-performance woofer
  • High pass modes tailor the bass to your speakers
  • Fully mutable level control
  • Stereo XLR inputs for your audio source
  • Stereo high-pass XLR outputs for loudspeakers
  • Stereo full-range XLR outputs with mono button for chaining more subs
  • Built-in ergonomic carry handles
  • M20 mounting thread for SPM400 speaker pole (sold separately)
High-Pass Modes
Connect loudspeakers to high-pass outputs and select from four modesAll modes include 1.4 ms alignment delay

  • Thump 12: Thump12v4 loudspeakers (140 Hz crossover)
  • Thump 15: Thump15v4 loudspeakers (110 Hz crossover)
  • Thump GO: Thump GO loudspeakers (150 Hz crossover)
  • Variable: Set crossover manually to match any loudspeakers
Additional Details
  • Phase invert switch
  • Defeatable front LED
  • Stereo or mono summing for single or dual subwoofer deployment
  • Variable level control (Muted to +6 dB)
  • Front LED On/Off
Versatile Inputs and Outputs
  • Stereo XLR inputs: Connect to DJ controller, mixer, or other source
  • Stereo XLR high-pass outputs: Connect to loudspeakers and select your high-pass mode
  • Stereo XLR full-range outputs: Chain the full, unaltered signal to the next subwoofer
Versatile Configuration Options
Integrated M20-threaded pole mount (works with optional SPM400 speaker pole)
FEATURES
  • Portable Subwoofer
  • Two XLR Inputs
  • Two High-Pass XLR Outputs
  • Two Full-Range XLR Outputs
  • High-Pass Modes for Any Speaker
  • Front-Panel LED On/Off Button
  • Phase Invert: 0 or 180°
  • Stereo or Mono Summing for 1 or 2 Subs
  • Integrated M20-Threaded Pole Mount
  • Includes Power Cord
Categories: , , Tags: , Brand:
Brands

Mackie
Product Type

PA Subwoofers, Speakers
Speaker Size

15"
Frequency Range/Response
25 Hz to 160 Hz (-10 dB)
33 Hz to 160 Hz (-3 dB)
Speaker Type
Active Subwoofer
Enclosure Type
Bass-Reflex
Total Output Power
1400 W Peak
Amplifier Class
Class-D
Drivers
LF Driver
1x 18″ / 45.7 cm Woofer
Performance
Frequency Range/Response
25 Hz to 160 Hz (-10 dB)
33 Hz to 160 Hz (-3 dB)
Maximum SPL
132 dB SPL
Protections
Output Limiter, RMS, Signal Limiter, Thermal
Signal Processing
Crossover Frequency
80 to 160 Hz
EQ & Filters
No
Dynamic Processing
Peak Limiter
Alignment Delay
No
Digital Signal Processing
User Settings
Connectivity
Audio I/O
2x XLR 3-Pin Line Input
4x XLR 3-Pin Line Output
Network I/O
No
USB I/O
No
Wireless
No
Mobile App Compatible
No
Power
AC Input Power
100 to 120 VAC, 50 / 60 Hz
AC Power I/O
1x IEC Input
Power Consumption
400 W
Physical
Color
Black
Mounting
1 x M20-Threaded Pole Socket (Top)
Handles
1x Each Side
Environmental Resistance
No
Dimensions
24.8 x 23.8 x 21.3″ / 629.9 x 604.5 x 541 mm
Weight
70.4 lb / 31.9 kg
