Neumann TLM 107 Studio Set


Brands: Neumann
Brands
  • Low self-noise of 10 dB-A
  • Maximum sound pressure level of 141 dB SPL, can be increased to 153 dB SPL with pad
  • Low cut and pad are controlled via navigation
  • Pad and low cut status displayed by LED

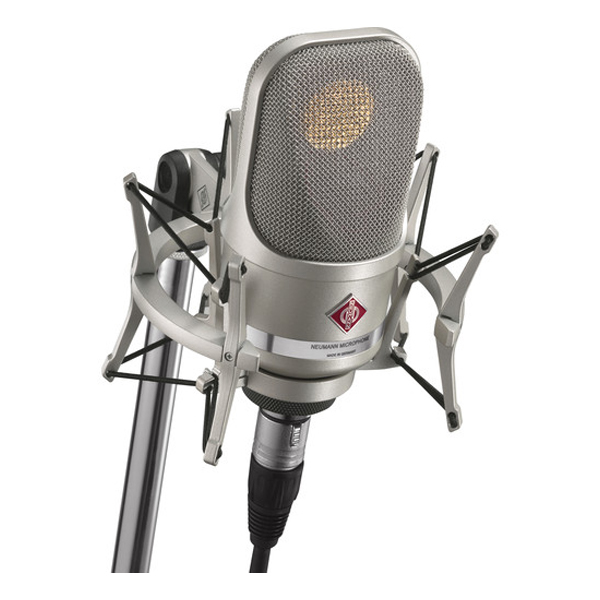

Styled in nickel, The Neumann TLM 107 Studio Set provides you with a Neumann TLM 107 microphone, a stand mount, a wooden box, and an EA 4 Elastic Suspension Shockmount to isolate the mic from stand-associated rumble. The microphone provides five polar patterns, transformerless circuitry, two selectable high-pass filters, two selectable pads, and more. The Elastic Suspension Shockmount provides a 5-8″-27 female thread and a thread adapter for 1/2″-3/8″ stands.

Neumann TLM 107 Multi-Pattern Large Diaphragm Condenser Microphone (Nickel)

The nickel Neumann TLM 107 is a high-quality, flexible large diaphragm condenser microphone with five selectable polar patterns that is designed to accommodate a wide variety of professional studio, broadcast and demanding home recording applications.

The TLM 107 is engineered with a transformerless design that permits a high degree of linearity and a large dynamic range. Featuring selectable omnidirectional, wide angle cardioid, cardioid, hypercardioid and figure-8 polar patterns, this microphone is suitable for a wide range of miking techniques and configurations.

The mic also features -6dB and -12dB pads that can be engaged for recording louder sound sources such as brass or guitar amplifiers. Additionally, it has selectable high-pass filters at both 40 Hz and 100 Hz for filtering out unwanted low frequencies to save you time when mixing.

FEATURES



  • Low self-noise of 10 dB-A
  • Maximum sound pressure level of 141 dB SPL, can be increased to 153 dB SPL with pad
  • Low cut and pad are controlled via navigation
  • Pad and low cut status displayed by LED
  • Illuminated polar pattern display
  • Indicator light displays are turned off automatically after 15 seconds
  • ncludes Nickel TLM 107
  • Transformerless Circuitry
  • 5 Polar Patterns
  • Two Selectable High-Pass Filters
  • Two Selectable Pads
  • Includes Nickel Elastic Shockmount
Brands

Neumann

Product Type

Condenser Microphones, Microphones

Color

Silver

Microphone

Operating Principle Pressure Gradient
Capsule Condenser
Polar Pattern Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid/Wide Cardioid
Pattern Selection Switched
Pad -6 dB

-12 dB

Performance

Frequency Range 20 Hz to 20 kHz
Maximum SPL 141 dB SPL
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 11 mV/Pa at 1 kHz into 1 Kilohms
Signal-to-Noise Ratio 72 dB CCIR

84 dB A-Weighted

Equivalent Noise Level 22 dB CCIR

10 dB A-Weighted

THD < 0.5%

Connectivity

Output Connectors (Analog) 1 x XLR 3-Pin

Power

Operating Voltage 48 V ± 4 V
Operating Current Consumption 3.2 mA

Physical

Dimensions ø: 2.52 x L: 5.71″ / ø: 64 x L: 145 mm
Weight 15.7 oz / 445 g
