Pioneer DJ DJM-V10


Brands: Pioneer DJ
Brands
  • Elite Sound Quality
  • 6 Channel with a wide Range of inputs
  • 4-Band EQ and Compressor
  • Effects for more  Creative Expressions

$5,499.00

CRAFT YOUR SOUND

Introducing the 6-channel DJM-V10; a new breed of professional DJ mixer, built to enable DJs to craft new soundscapes from multiple audio sources.

NATURAL WARMTH

When we started developing the DJM-V10, we challenged ourselves to create a versatile sound that would bring out the best in all genres of music. The audio had to be delicately balanced, offering both warmth and clarity. While building numerous prototypes we tried out various components and performed test after test, making refinements every time until we achieved something special. Every detail in the music can be heard and, because the sound is deep and warm, you can listen for hours without getting ear fatigue – no matter what kind of music you play.

TAKING CONTROL

For the first time ever, we built in a 4-band EQ to enable you to independently control distinct elements of the music, e.g. kick drums and bass. We setup a club-style sound system for testing the audio as we built each frequency band from scratch, using a variety of music styles for reference. Listening to feedback from DJs, we carefully adjusted the curve of each band and created highs and lows that you can fully kill, and two sharpened mid ranges.

FREEDOM TO CREATE

To help DJs assemble custom setups and get creative with external hardware during their sets, we built an expanded send/return section. The design is tailored to work seamlessly with instruments and guitar pedals as well as FX units. We also added built-in Send/Return FX which are perfect for making nuanced adjustments to the audio, so you can create sounds that naturally blend with the music. After much research and testing, we decided on a selection of FX that work well for live remixing, enhancing sounds from external equipment without overpowering them or feeling unnatural.

ENERGY ON THE

DANCEFLOOR

Once you’ve carefully sculpted your mix using the fader and 4-band EQ on each channel, you can drastically change or make fine adjustments to the whole sound using the new master isolator. During in-depth analysis we examined not only the finished sound when you settle on your final mix, but also how the sound changes as you tweak each range. The oversized dials express the dynamism of the feature, so you can grab them and hype up the crowd with dramatic changes to the music.

Disable

PURE CONCEPT, SIMPLE DESIGN

The DJM-V10 is packed with professional features, but we wanted it to be easy to use. So, we adjusted the thickness of the printed lines by 0.1mm, and we grouped many of the controls into clear sections to make the features intuitive to use. Our aim was to create a “blank canvas” that gives you creative freedom by providing a variety of features in a clean, lean layout. Despite its simple look, we were obsessive about every tiny detail of the design because we wanted the mixer to embody the warm audio it produces. Finally, we achieved this by unifying its look with warm colors.

CRAFT YOUR SOUND

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.

This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.

FEATURES

  • Elite Sound Quality

Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to  produce a full low-end, vibrant mids, and precise highs.

  • 6 Channel with a wide Range of inputs

You’re free to create your perfect setup with 6 channels and a host of different input types.

  • 4-Band EQ and Compressor

Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

  • Effects for more  Creative Expressions

The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless

  • 3-Band Master Isolator

Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.

  • Dual Headphones Output and Booth EQ

The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

  • Lockable power cable

A lockable power cord is included for added reliability and to avoid accidental disconnections.

*In selected regions, a non-lockable power cable is supplied instead.

  • DJM-REC compatible

Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions.

  • rekordbox

Make full use of rekordbox’s low-latency DVS feature for intuitive, smooth scratching.

  • Serato DVS-ready

Use Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately – Serato DJ Pro compatibility is coming soon).

  • TRAKTOR DVS-ready

Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.

  • ShowKontrol

The DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.

MIDI Control Full assignable MIDI controls
ProDJ Link Yes
Booth EQ Yes
P-LOCK Fader Caps Yes
Auto Standby Yes
DVS Control
  • rekordbox
  • Serato DJ Pro
  • TRAKTOR PRO 3
What’s in the box
  • DJM-V10
  • Power Cord
  • Warranty (for some regions)
  • Quick Start Guide
  • Precautions for Use

Specifications

Width 17.23 in
Height 4.25 in
Depth 18.39 in
Weight 26.24 lb
Frequency Range 20 – 40000 Hz
Sampling Rate 96 kHz
A/D Converter 32 bit
D/A Converter 32 bit
S/N Ratio Line 105 dB
S/N Ratio Phono 88 dB
S/N Ratio Mic 79 dB
Distortion < 0.005 % (LINE)

Channels

EQ 4 band
EQ Range [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP Yes

Performance Control

Channels 6
Filter
  • HPF
  • LPF
SEND
  • Short Delay
  • Long Delay
  • Dub Echo
  • Reverb
  • 2 Externals (1/4-inch TS jack)
MULTI I/O
  • 1/4-inch jack
  • USB (Type A)
Beat FX
  • Delay
  • Echo
  • Ping Pong
  • Spiral
  • Helix
  • Reverb
  • Shimmer
  • Flanger
  • Phaser
  • Filter
  • Trans
  • Roll
  • Pitch
  • Vinyl Brake
FX Frequency Yes
X-PAD Yes
rekordbox Quantize Yes
Master Isolator Yes

Crossfader

Crossfader Type Magvel Fader
CURVE Assignable Yes
Fader Curve 3

Mic

Mic Connection
  • XLR / 1/4-inch Jack Combo
  • 1/4-inch TRS Jack
Talkover 3 Position Switch
Talkover Attenuator Yes

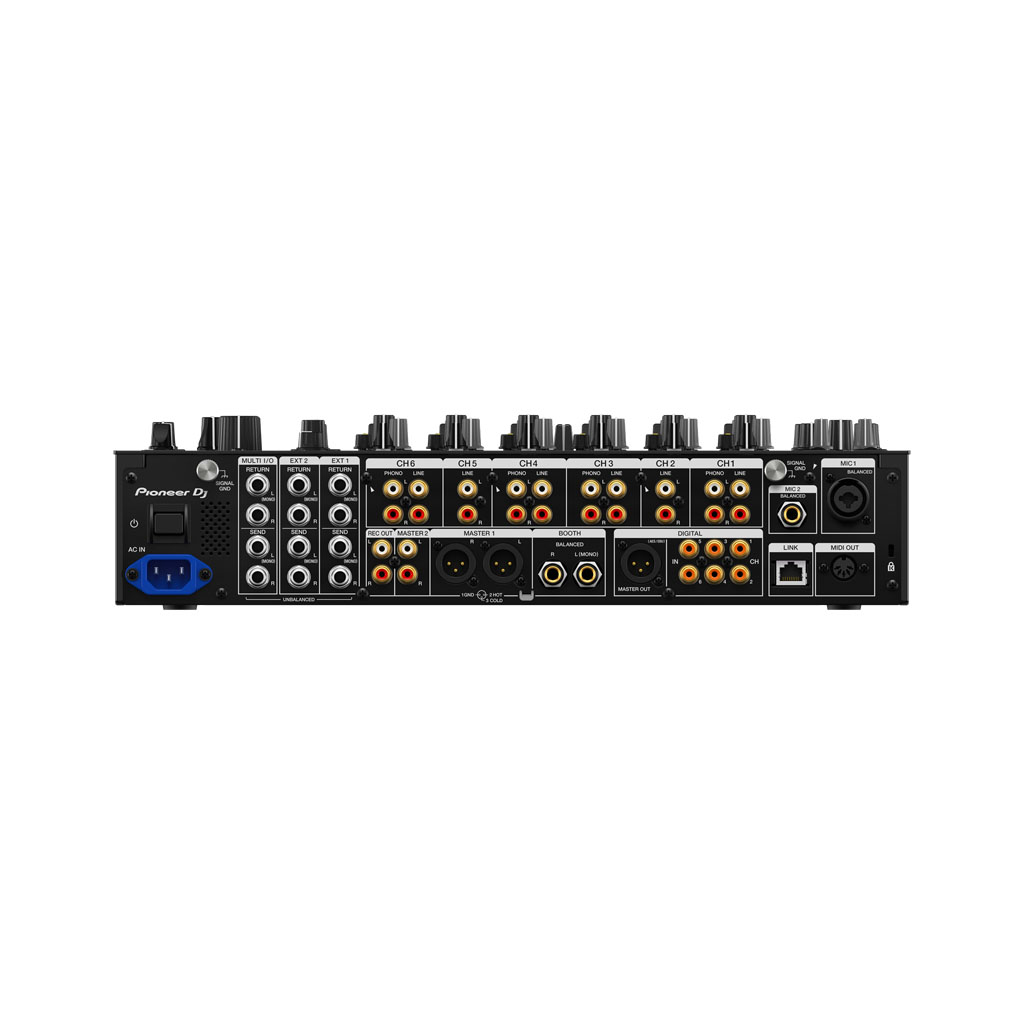

Terminals

Inputs
  • 6 DIGITAL (Coaxial)
  • 6 LINE (RCA)
  • 4 PHONO (RCA)
Send/Return
  • 3 SEND (1/4-inch TS jack)
  • 3 RETURN (1/4-inch TS jack)
LAN 1
USB
  • 2 USB B ports
  • 1 USB A port
Outputs
  • 2 MASTER (XLR, RCA)
  • 1 BOOTH (1/4 inch TRS Jack)
  • 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
  • 1 REC OUT (RCA)
  • 1 DIGITAL (AES/EBU)
  • 1 MIDI (DIN)
