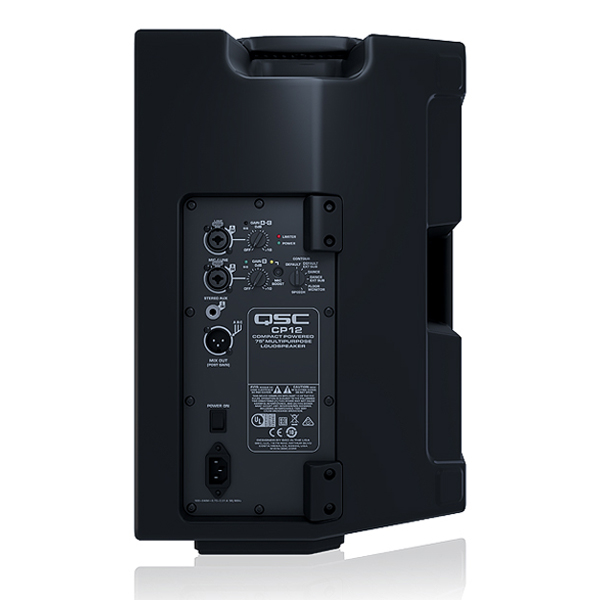

QSC CP12

Brands: QSC
Brands
  • Compact and powerful performance
  • 1000 Watt peak power Class-D amplifier module
  • Easily selected contours for commonly-used applications
  • Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection

High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

FEATURES

  • Compact and powerful performance
  • 1000 Watt peak power Class-D amplifier module
  • Easily selected contours for commonly-used applications
  • Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
  • Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
  • Light weight and highly portable
  • Professional appearance looks great in any application
  • Use for main PA, stage monitor, or instrument amplifier
  • 35 mm pole socket
  • Optional yoke, tote, and outdoor cover accessories
  • Complete EASE and CAD information available online
Categories: , , Tags: , ,
Brands

QSC
Size

12"
Product Type

PA Speakers,
Configuration Two-way active loudspeaker
LF Transducer: 305 mm (12 in), cone
HF Transducer: 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB) 49 – 20 kHz
Frequency Range (-10 dB) 47 – 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL1: 126 dB
Amplifier: Class D

Peak: 800 W (LF), 200 W (HF)
Controls: Power

2 × Gain

Mic Boost Push Switch

6-way Contour Selection Switch
Indicators: Power LED

2 × Input Signal LED

Input B MIC selected LED

Limiter active LED
Connectors: 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)

1 × 3.5 mm TRS (Stereo Input)

1 × XLR/M (Mix Output)

1 × IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 0.75A – 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M8 threaded insert
Color: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel
Speaker Dimensions (H×W×D): 516 × 350 × 323 mm

20.3 × 13.8 × 12.7 in
Carton Dimensions (H×W×D): 430 × 430 × 604 mm

17 × 17 × 23.8 in
Net Weight: 13.7 kg / 30.3 lb
Shipping Weight: 16.5 kg / 36.4 lb
Regulatory: EMC, UL, CB
Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke
