Rode NT1 + Al-1 Complete Studio Kit


Brands: Rode
Brands
  • High-Speed USB Audio Interface
  • 24-Bit / 96 kHz
  • Premium Discrete Headphone Amplifier
  • Cardioid Condenser Microphone

Microphone Complete Studio Kit with AI-1 Audio Interface, SMR Shockmount, and Cables

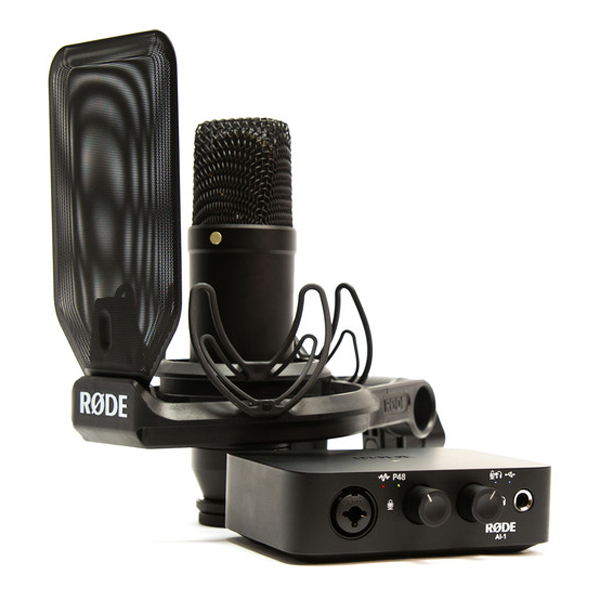

The Rode Complete Studio Kit combines the AI-1 USB audio interface with the NT1 cardioid condenser microphone, the SMR advanced shockmount with pop filter, a premium XLR cable, a USB cable, and a copy of Ableton Live Lite to create an all-in-one solution for recording vocals and instruments in a project studio or while on the go.

Rode AI-1 Studio-Quality USB Audio Interface

The Rode AI-1 is a studio-quality audio interface well suited for recording vocals, instruments, and voice-overs into your Mac or Windows computer. The interface features a single, combo XLR-1/4″ input with phantom power, two balanced 1/4″ monitor outputs, and a single, discrete, studio-quality headphone output and level control. The device can operate in zero-latency monitoring mode, which connects the preamp directly to the headphone output for delay-free performance while recording. With the headphone input engaged, the two monitor outputs are bypassed. To engage the monitor outputs, simply remove the headphone plug from the jack.

The rugged aluminum body is finished with a satin black finish and features large rubber feet, which prevents the desktop interface from sliding about when engaged. The class compliant AI-1 requires no drivers and features a USB-C connector, which not only connect to your computer, but also provides powers as well. The Rode AI-1 ships with a USB cable and a license for Ableton Live Lite.

  • Desktop USB audio interface with low-noise Class-A discrete preamplifier
  • Sampling rate of up to 96kHz/24-bit
  • One combo XLR-1/4″ combo input
  • Two balanced 1/4″ monitor outputs
  • One discrete, studio-quality headphone output
  • Phantom power for condenser microphones
  • Zero-latency monitor mode
  • USB bus powered
  • USB Type-C connector for future proof operation
  • Rugged body with Satin Black Finish
  • Class compliant—no drivers required
  • Includes Ableton Live Lite
  • Includes USB cable

Rode NT1 Cardioid Condenser Microphone (Microphone Only)

The NT1 Cardioid Condenser Microphone from RODE is a large-diaphragm cardioid condenser microphone that features RODE’s HF6 1″ capsule. The HF6 is designed to provide a detailed midrange response with smooth highs and warm bass. The capsule itself is seated in a Rycote Lyre internal shockmount to help reduce vibration and handling noises.

The microphone’s electronics were designed from the ground-up for quiet performance, and allow the NT1 to have a low, 4.5 dB of self-noise. The body of the mic is machined from nickel-plated aluminum that is then coated in a ceramic layer that is electrostatically applied for a scratch-resistant finish. The NT1 includes the RM2 mic clip and has a 1-year limited warranty that extends to 10-years after registration with RODE.

Rode SMR Advanced Shock Mount for Large Diaphragm Condenser Mics

The Rode SMR is a professional-grade shock mount for large diaphragm condenser mics. Featuring a double-Lyre suspension system, the SMR enhances Rycote’s Lyre system by using a smaller inner Lyre to act as a tensioning element.

The SMR’s removable all-metal pop filter provides an integrated solution for plosive protection, that is washable and designed to last as long as the shock mount and microphone. The SMR’s clamping system design utilizes a large surface area, allowing for ample friction and weight handling, without the need for over-tightening of the locking thread. With the load distributed over a greater surface area, the clamping system is designed to better withstand the wear and tear of repeated use.

The SMR’s frame is made from an engineering grade reinforced polymer. Vibration force is evenly distributed around the outer frame via the wide mounting rails, increasing the effectiveness of the Lyre system.

A base nut is also included, suitable for all compatible Rode microphones.

FEATURES

  • High-Speed USB Audio Interface
  • 24-Bit / 96 kHz
  • Premium Discrete Headphone Amplifier
  • Cardioid Condenser Microphone
  • HF6 1″ Capsule
  • Low Self-Noise for Quiet Operation
  • Professional-Grade Shockmount
  • Rycote’s Double-Lyre Suspension System
  • Pop Filter
  • Premium XLR Cable Included

Rode AI-1 Studio-Quality USB Audio Interface Specs

Form Factor Tabletop
Channels of I/O 1 Input / 2 Output
Max Sample Rate/Resolution 96 kHz / 24-Bit
Number of Mic Preamps 1

Connectivity

Analog Audio I/O 1 x Combo XLR-1/4″ TRS Mic/Line Input

2 x 1/4″ TRS Balanced Line Output

1 x 1/4″ TRS Headphone Output

Phantom Power +48 V
Digital Audio I/O None
Host Connection / USB USB Type-C
MIDI I/O None

Performance

Frequency Response 20 Hz to 20 kHz ±1 dB
Gain/Trim Range Inputs:

0 to 45 dB

Max Output Level Monitor Outputs:

-6 dBu

Headphone Output Power 24 mW into 32 Ohms

245 mW into 300 Ohms

Impedance Hi-Z Inputs:

0.9 Megohm

Mic Inputs:

1.3 Kilohms

Dynamic Range 104 dBu
EIN -128 dBA

Digital Audio

Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Bit Depths 24-Bit
Latency Zero-Latency Direct Monitoring

Compatibility

OS Compatibility macOS 10.10 or Later

Windows 7 or Later

Physical

Dimensions 4.9 x 3.9 x 1.5″ / 124 x 100 x 38 mm
Weight 19.8 oz / 561.3 g

Packaging Info

Package Weight 1.155 lb
Box Dimensions (LxWxH) 7 x 5.1 x 2.55″

Rode NT1 Cardioid Condenser Microphone (Microphone Only) Specs

Microphone

Operating Principle Pressure Gradient
Capsule Condenser
Diaphragm 1″ / 25.40 mm
Polar Pattern Cardioid

Performance

Frequency Range 20 Hz to 20 kHz
Maximum SPL 132 dB SPL
Impedance 100 Ohms
Sensitivity -29 dB
Equivalent Noise Level 4 dB A-Weighted
THD 1%

Connectivity

Output Connectors 1 x 3-Pin XLR

Power

Operating Voltage 24 V

48 V

Physical

Length 7.36″ / 187 mm
Diameter 1.97″ / 50 mm
Weight 0.97 lb / 440 g

Packaging Info

Package Weight 1.75 lb
Box Dimensions (LxWxH) 9.1 x 5.5 x 3.4″

Rode SMR Advanced Shock Mount For Large Diaphragm Condenser Mics Specs

Physical

Dimensions 9 x 8.3 x 5″ / 220 x 210 x 130 mm
Weight 9.2 oz / 260 g
