Samson XPDm

Brands: Samson
Brands
  • For presenters, educators, and interviewers
  • Discreet cardioid lavalier microphone
  • Digital audio technology for natural voice sound
  • Fast to set up and easy to operate with 1-button operation

Samson makes wireless easier than ever with the XPDm Lavalier Digital Wireless System, a unique wireless microphone solution that is ideal for presenters, educators and interviewers. This digital wireless system operates on the 2.4GHz license-free frequency and offers simple setup and professional full-range audio and 100’ of wireless operation at an unbeatable value.

Simple Addition

Easily integrate the XPDm Lavalier System into your audio setup with a lightweight and portable RXD1M receiver that has XLR, 1/4” and 1/8” outputs. Simply pair the handheld PXD1 transmitter to the receiver via the pair button for straightforward synching.

Digital Wireless Technology

The XPDm Lavalier System delivers high-quality audio using 2.4GHz digital transmission. This wireless technology allows the microphone transmitter to send an uncompressed signal to the receiver and offers a greater signal-to-noise when compared to traditional wireless systems.

Clip-On, Clip-Off

The PXD1 beltpack transmitter allows for 100’ of wireless range and provides up to 20 hours of use on two AA batteries. The LM7 Unidirectional Lavalier Microphone connects with the beltpack transmitter and captures vocals with absolute clarity. A lightweight mic clip is included for low-profile microphone placements on ties, lapels and other articles of clothing as well as a windscreen to reduce P-pops and other unwanted noise.



FEATURES

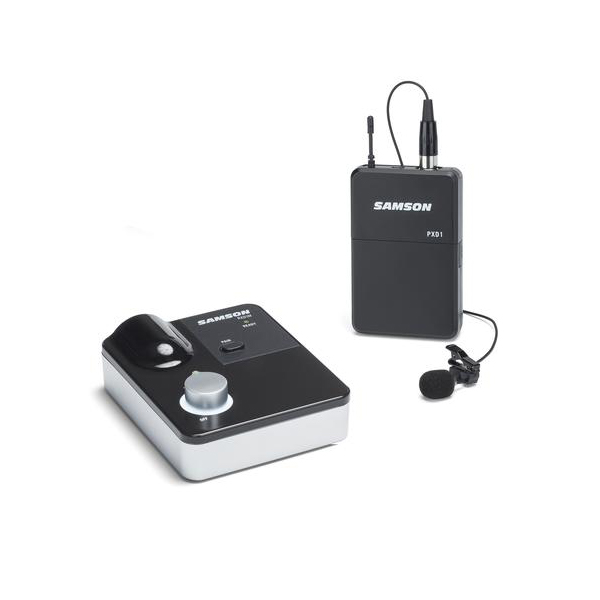

XPDm Lavalier Digital Wireless System

  • Dual-channel, high performance digital wireless system
  • Operates on 2.4GHz License-free frequency

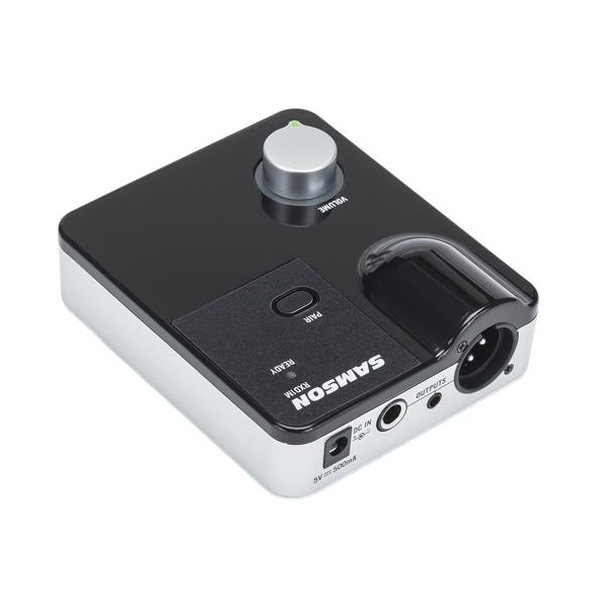

RXD1M Tabletop Receiver

  • Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs
  • One-touch pairing button
  • Rotary volume knob with integral power switch

PXD1 Beltpack Transmitter

  • Includes LM8 Omnidirectional Lavalier Microphone
  • Offers up to 20 hours of battery life using two AA batteries
  • 300’ operating range

RXD1M Digital Receiver

  • Simultaneous Systems: 2
  • Working Range: 100′ (30m) line of sight
  • Working Frequency:  2.404~2.476GHz
  • Modulation type: GFSK
  • Audio Frequency Response: 20Hz–16KHz
  • T.H.D.: <0.1% (@ 1KHz, -10dBu)
  • Signal to Noise: >85dB
  • Audio Output Level
    • 1/8″ (3.5mm) & 1/4″ Jack (unbalanced): 5dBu
    • XLR Jack (balanced): 5dBu
  • Audio Output Impedance
    • 1/8″ (3.5mm) & 1/4″ Jack (unbalanced): 2KΩ
    • XLR output jack (balanced): 4.5KΩ
  • RF Sensitivity: -78dBm/20dB SINAD
  • Operating Voltage: 5V/500mA
  • For presenters, educators, and interviewers
  • Discreet cardioid lavalier microphone
  • Digital audio technology for natural voice sound
  • Fast to set up and easy to operate with 1-button operation
  • Bodypack transmitter provides up to 20 hours of continuous use with two AA batteries at a maximum range of 100′
  • XLR, 1/4″, and 3.5mm output connectors
  • Operates on the 2.4GHz license-free frequency band
Categories: , Tags: , ,
Brands

Samson
Product Type

Wireless Mircophones

System

Wireless Transmission Digital 2.4 GHz
Included Transmitters 1 x Bodypack
Diversity Non-Diversity
Max Operating Range 100′ / 30.5 m
Max Systems per Setup 2
Modulation GFSK

Receiver

Form Factor Tabletop
Mounting Options Tabletop
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output

1 x 1/4″ TS Female Unbalanced Output

1 x 1/8″ / 3.5 mm TS Female Unbalanced Output
Frequency Response 20 Hz to 16 kHz
Impedance XLR Output:

4.5 Kilohms

1/4″ Output:

2 Kilohms

1/8″ / 3.5 mm Output:

2 Kilohms
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 5 VDC at 500 mA (Included)
Dimensions 4.3 x 3.7 x 1.5″ / 110 x 95 x 39 mm
Weight 5.4 oz / 152 g

Transmitter 1

Transmitter

Form Factor Bodypack
RF Output Power < 10 mW (EIRP)
Audio I/O 1 x TA3/Mini XLR 3-Pin Male Input (Lockable)
Auto-Level Control No
Sync Method Proprietary
Antenna 1 x External, Fixed
Power Requirements Battery
Battery Type 2 x AA
Approx. Battery Life 20 Hours (Alkaline)
Display & Indicators 1 x LED (Battery Status)
Dimensions 2.8 x 3.8 x 0.7″ / 70 x 96 x 18 mm
Weight 3.3 oz / 93 g

Microphone

Form Factor Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 12 kHz
Maximum SPL 125 dB SPL
Sensitivity -45 dBV/Pa at 1 kHz
Output Connectors 1 x TA3/Mini XLR 3-Pin Female
Cable Length 3.94′ / 1.2 m
Operating Voltage 1.5 to 12 V
Weight 0.07 oz / 2 g
