Sennheiser EW-DX 835-S SET


Brands: Sennheiser
Brands
  • For Two Presenters or Performers
  • 2 Handheld Transmitters, e-Ink Displays
  • 2 MMD 835 Dynamic Cardioid Mic Capsules
  • 2-Channel Diversity Receiver

$3,299.00

Digital Dual Wireless Handheld Microphone System

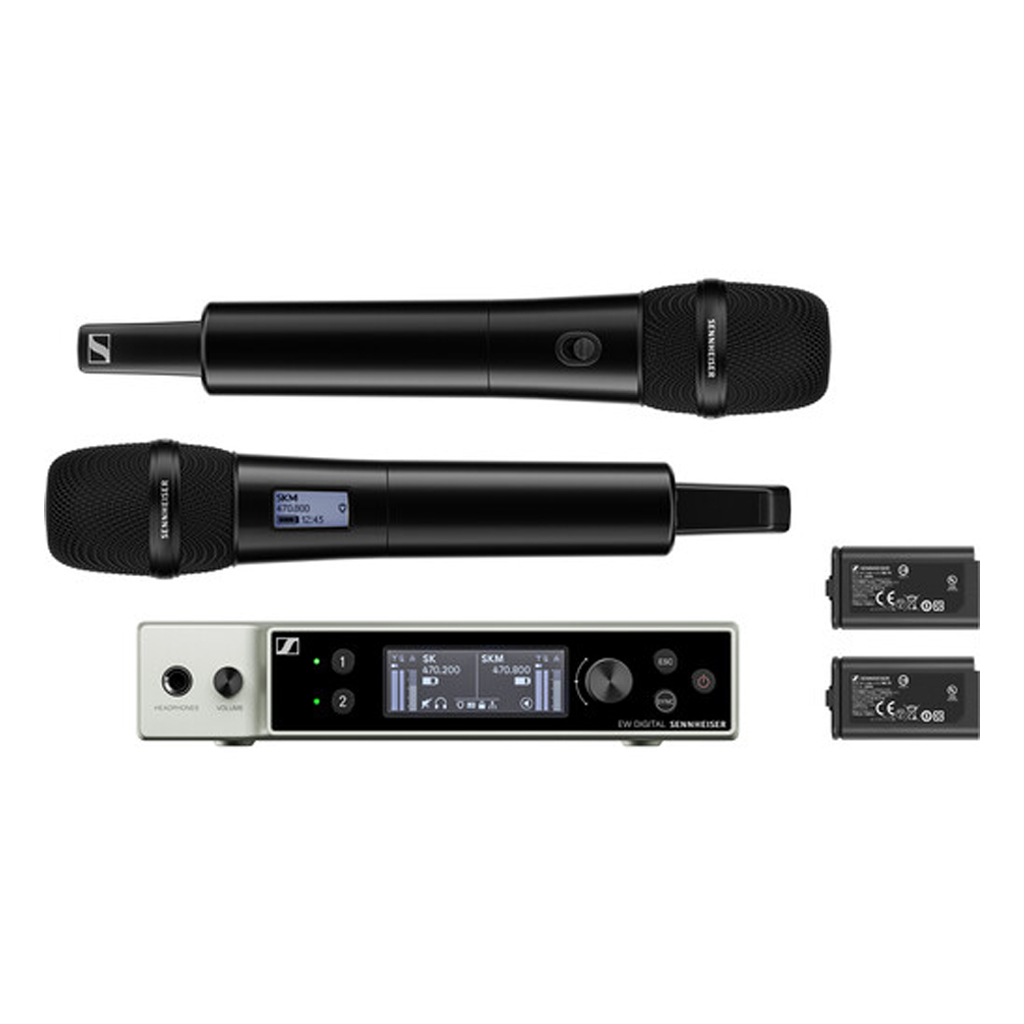

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX 835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver and two handheld transmitter/mics with mute switch and MMD 835 cardioid capsules.

With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser’s Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

FEATURES
  • For Two Presenters or Performers
  • 2 Handheld Transmitters, e-Ink Displays
  • 2 MMD 835 Dynamic Cardioid Mic Capsules
  • 2-Channel Diversity Receiver
  • Wide 80 MHz Bandwidth, 3200 Frequencies
  • 134 dB of Dynamic Range
  • AES-256 Encryption, RJ45 Networking
  • Set Up/Operate from Phone via Bluetooth
  • 12-Hour Rechargeable Battery / 8-Hour AA
  • Expandable to 269 Channels/330′ Range
Brands

Sennheiser

Product Type

Microphone System, Microphones

Wireless Technology
Digital UHF
Diversity
Yes
Max Operating Range
328.1′ / 100 m (Line of Sight)
Receiver Type
1x Tabletop/Rack-Mountable
Number of Audio Channels
2
Included Transmitters
2x Handheld
Microphone Type
2x Handheld
System
Wireless Technology
Digital UHF
Diversity
Yes
RF Frequency Band
Q1-9: 470.2 to 550 MHz
Number of RF Channel Frequencies
3200
Max Operating Range
328.1′ / 100 m (Line of Sight)
Max Transmitters per Band
269
Dynamic Range
134 dB
Latency
1.9 ms
Encryption
AES 256
Built-In Recorder
No
Mobile App Compatible
Yes: Android & iOS
App Name: Smart Assist
Functionality: Remote Control
Receiver
Receiver Type
1x Tabletop/Rack-Mountable
Mounting Options
Rackmount (with Included Hardware, 1 U Half-Rack)
Antenna
2x Removable BNC External (Rear-Mount)
Number of Audio Channels
2
Audio I/O
2x XLR 3-Pin Balanced Output
2x 1/4″ TS Unbalanced Output
1x 1/4″ TRS Headphone Output
Network I/O
1x RJ45
Word Clock I/O
No
USB/Lightning Connectivity
No
Frequency Response
20 Hz to 20 kHz ±3 dB
Display
OLED
Power Requirements
AC/DC Power Adapter, PoE
Transmitters
Included Transmitters
2x Handheld
RF Output Power
10 mW
10 mW
Antenna
Internal
Input Level
Microphone / Line / Instrument
Audio I/O
No
Bias/Plug-In & Phantom Power
2 to 4.35 V Bias/Plug-In Power
No Phantom Support
Muting
Mute Switch
Auto-Level/Gain
No
Frequency Response
20 Hz to 20 kHz -3 dB
Sync Method
Bluetooth
Display
Single-LED Indicators Only
Microphones
Microphone Type
2x Handheld
Polar Pattern
Cardioid
Color
Black
Power
Transmitter Battery Type
2x AA (Included) or
1x Sennheiser Battery Pack (Not Included)
Transmitter Battery Life
12 Hours (Sennheiser Battery Pack)
8 Hours (Alkaline)
AC/DC Power Adapter
11 to 13 VDC (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Environmental Resistance
No
Packaging Info
Package Weight
7.975 lb
Box Dimensions (LxWxH)
18.5 x 14 x 2.9″
