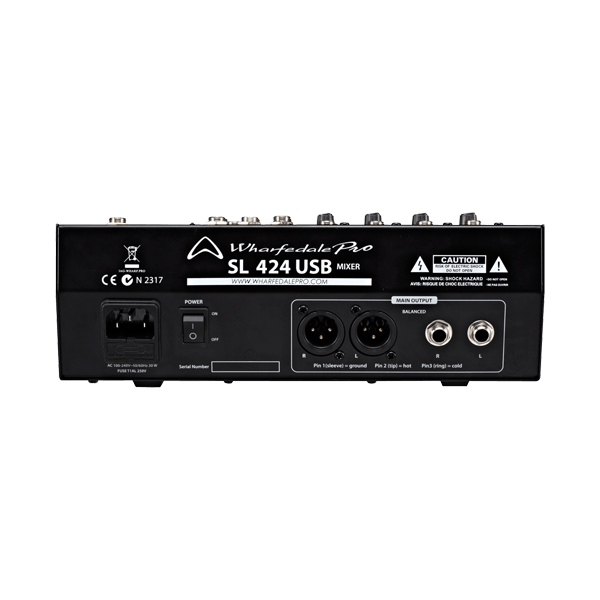

Wharfedale Pro SL424USB

The SL 424 is a compact studio/live mixing console with built-in full duplex USB interfacing.

Designed to cater for a wide range of mid format mixing duties, the SL 424 includes many features suited to both live sound and home studio applications.

The studio quality class-compliant 2-input 2-output 16-bit/48kHz USB interface is great for live and home recording.

Studio grade microphone preamps are used throughout and have balanced XLR inputs, with all channels also offering balanced/unbalanced TRS line level connectivity.

An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels.

FEATURES

• Full Duplex 2 In/2 Out 16-Bit 48 KHz USB Interface
• Dedicated USB Recording Bus (Excluding SL 424)
• Switchable Line/USB Return Channels (Excluding SL 424)
• Studio Grade Phantom Powered Microphone Pre-Amps
• Headphone output
• PFL for All Channels (excluding SL424USB)
• Control Room and Headphone Outputs
• Ultra Musical 3-Band EQ with High Pass Filters

• Digital FX (excluding SL424USB)
• 2 Auxiliary Sends (1 Send on SL 424)
• Stereo Return with Level Control
• Pan and Balance Controls
• Master Output XLR & TRS Connectors

• 4 x XLR input
• 8 x 6.3mm line input
• 3-band EQ
• 2 x 6.3mm outputs
• 2 x XLR balanced outputs
• USB Interface
