Xvive U45D Wireless Stereo In-Ear Monitor System
Xvive U45D Wireless Stereo In-Ear Monitor System - Image 2
Xvive U45D Wireless Stereo In-Ear Monitor System - Image 3
,

Xvive U45D Wireless Stereo In-Ear Monitor System

Brands: XVive
Brands
  • For Live Musicians and Performers
  • 24-Bit / 41.6 kHz Audio Resolution
  • 110 dB Dynamic Range
  • Up to 100′ Wireless Range

$569.00

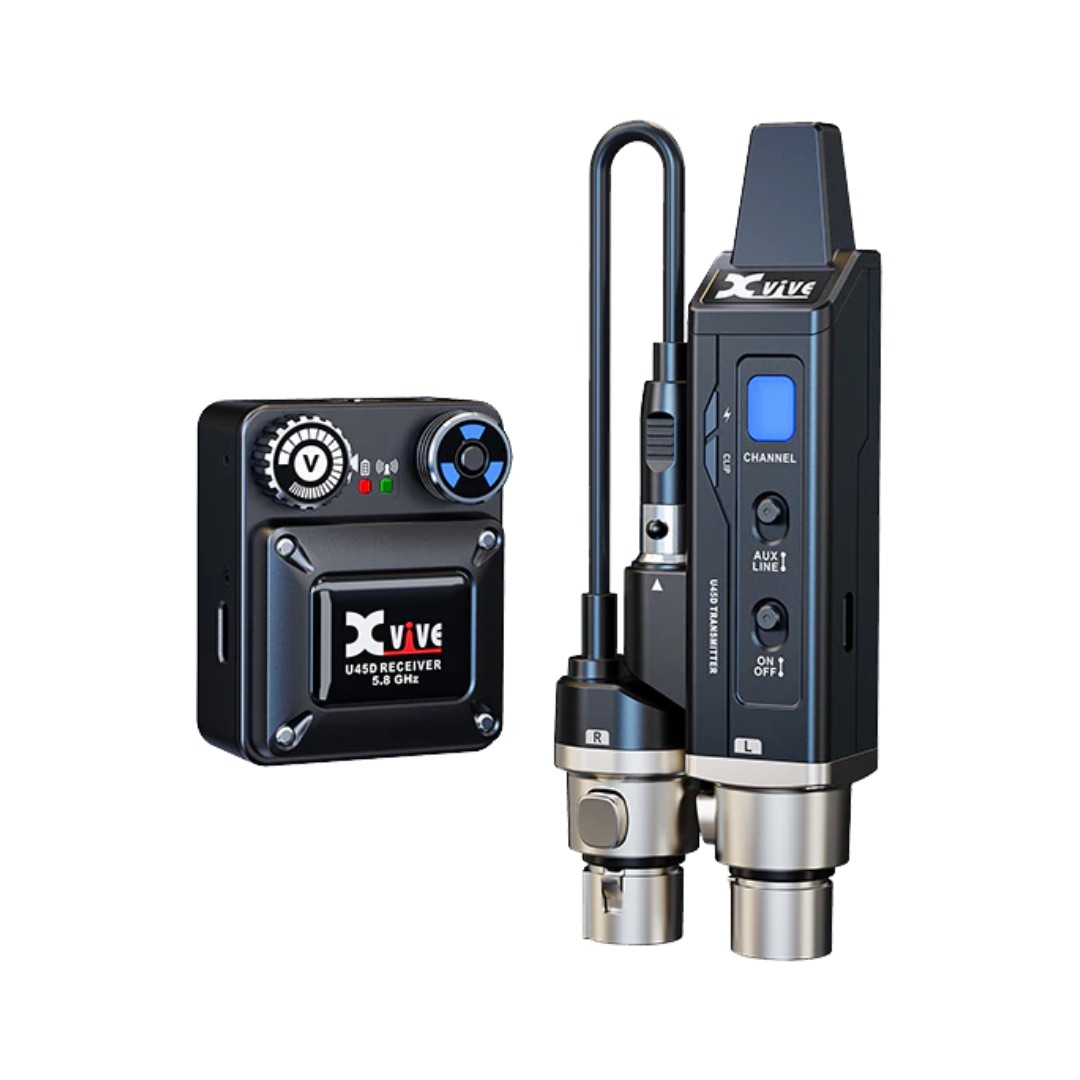

The Xvive U45D Wireless Stereo In-Ear Monitor System delivers reliable 5.8 GHz stereo monitoring with low latency, wide frequency response, and flexible input options for stage and rehearsal use. Featuring a dual-channel transmitter that supports independent left and right channels, the U45D provides true stereo monitoring with precise spatial imaging and panning control.

High-Resolution Audio and Low-Latency Performance
With 24-bit / 41.6 kHz audio, a 110 dB dynamic range, and a full 20 Hz to 20 kHz frequency response, the system offers natural, detailed sound. Less than 5 ms latency ensures glitch-free performance, while a solid RF connection provides up to 100 feet of range (actual range depends on RF conditions). Users can select from four monitoring modes—Stereo, L, R, and Mix—to suit any monitoring scenario.
Optimized Wireless Operation and Flexible Connectivity

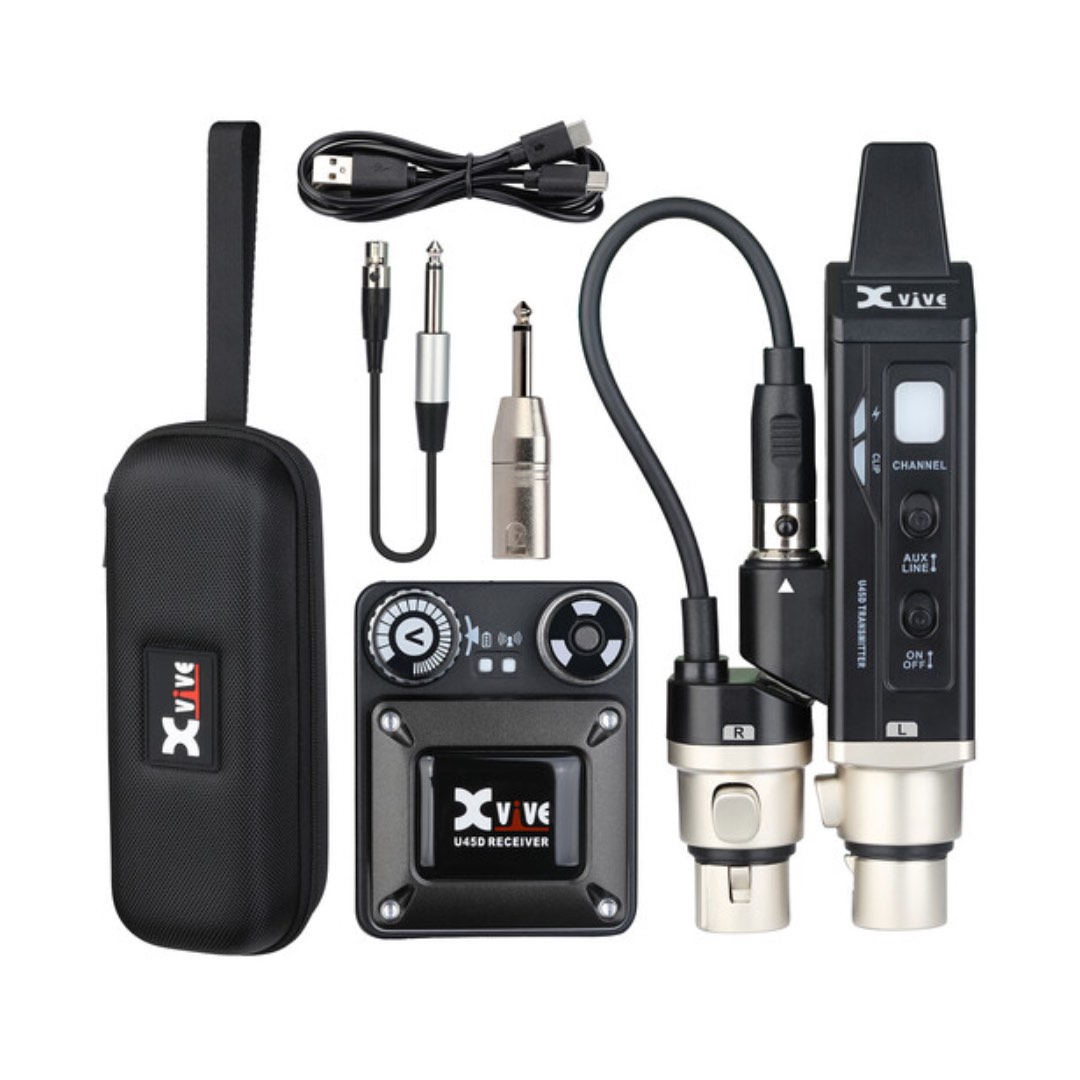

The U45D operates on six fixed channels to improve overall audio quality and transmission stability in demanding environments. To find the best available frequency in a given space, users can initiate manual channel scanning by pressing and holding the receiver’s channel button for three seconds, allowing the system to locate the cleanest available channel.The U45D includes balanced XLR input and unbalanced TS connectivity via the included XLR to 1/4” TS adapters. Both the transmitter and receiver feature rechargeable batteries with up to five hours of operation, while the hardware design helps prevent accidental power or volume changes. The package includes a transmitter, receiver, carry case, USB-C cable, and two XLR to 1/4” TS adapters for a complete ready-to-use wireless IEM solution.

FEATURES

  • For Live Musicians and Performers
  • 24-Bit / 41.6 kHz Audio Resolution
  • 110 dB Dynamic Range
  • Up to 100′ Wireless Range
  • Less than 5 ms Latency
  • Four Selectable Monitoring Modes
  • Dual-Channel Stereo Transmitter
  • 5-Hour Rechargeable Batteries
  • TS and Balanced XLR Connectivity
  • Includes Case and XLR Adapters
Categories: , Tags: , , Brand:
Brands

XVive
Product Type

Microphone System
Frequency Band
5.8 GHz
Wireless Range
100′ / 30.5 m (Depends on RF Signal Absorption, Reflection, and Interference)
Frequency Response
20 Hz to 20 kHz (-3 dB)
Dynamic Range
110 dB
Signal-to-Noise Ratio
110 dB
RF Sensitivity
-88 dBm
Total Harmonic Distortion
0.2%
RF Output Power
25 mW E.I.R.P. Maximum
Operating Temperature
32 to 113˚F / 0 to 45˚C (battery characteristics may limit this range)
Channels
6
Latency
< 5 ms
Sample Rate
24-Bit / 48 kHz
Transmitter
Housing: Molded Plastic and Cast Metal
Battery: 3.7 V Rechargeable Li-Ion, 860 mAh
Impedance: Input: 220 Ohms (1 kHz)
Audio Input Connector: Balanced XLR Male Input
Mode: Aux Mode: -10 dBV | Maximum +12.2 dBu
Line Mode: +4 dBu | Maximum +22 dBu
Battery Life: Up to 5 Hours
Antenna Impedance: 50 Ohms
Antenna Type: 1/4 Wave Sleeve Dipole, Non-Removable
Number of Antennas: 1
Dimensions: 1.18 x 1.1 x 3.94″ / 30 x 28 x 100 mm
Weight: 3.17 oz / 90 g

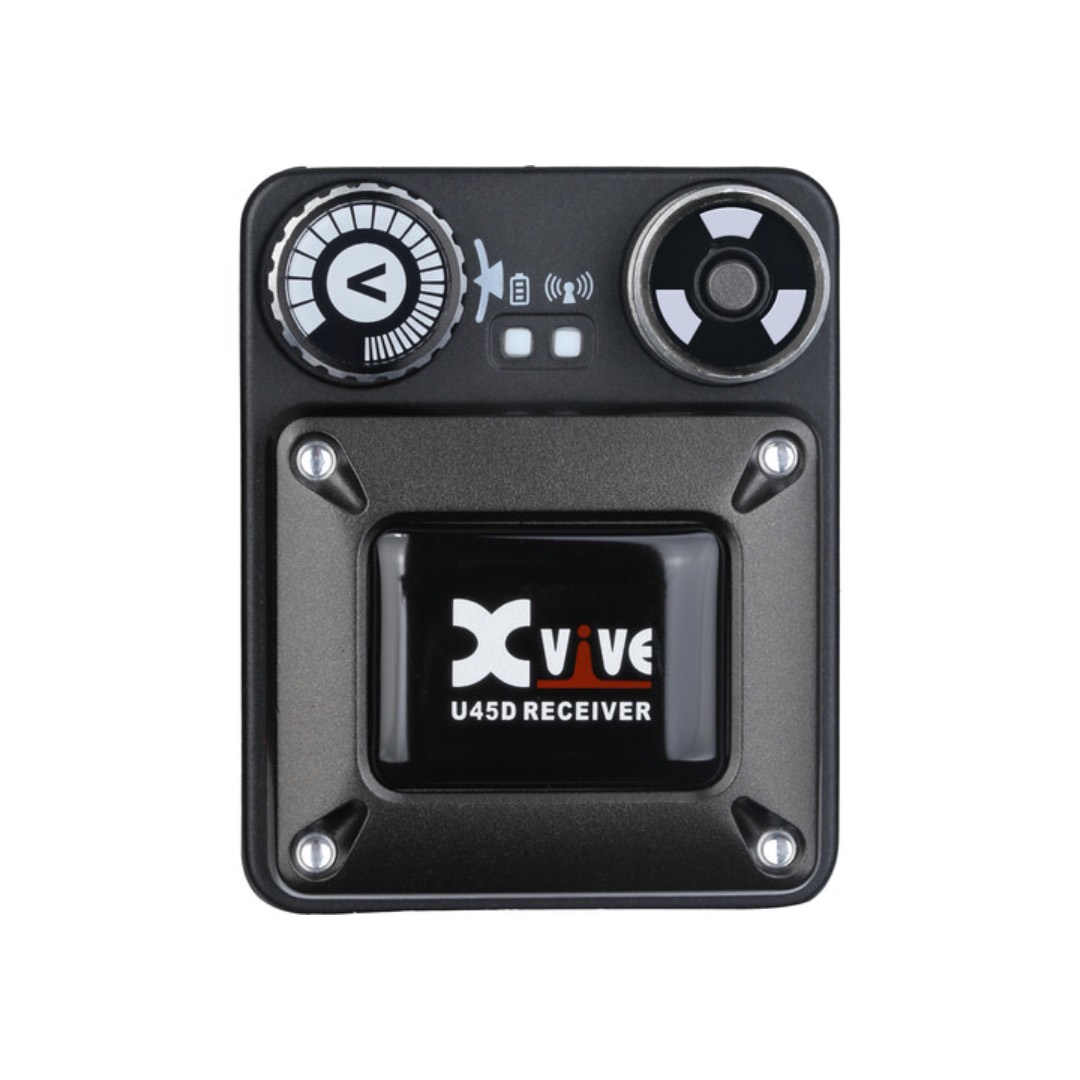

Receiver
Housing: Molded Plastic and Cast Metal
Battery: 3.7 V Rechargeable Li-Ion, 1200 mAh
Impedance: 6 to 600 Ohms
Audio Output Connector: 3.5 mm Dual Mono Output
Battery Life: Up to 5 Hours
Antenna Impedance: 50 Ohms
Antenna Type: 1/4 Wave Sleeve Dipole, Non-Removable
Number of Antennas: 1
Dimensions: 1.85 x 1.61 x 2.36″ / 47 x 41 x 60 mm
Weight: 3.17 oz / 90 g
