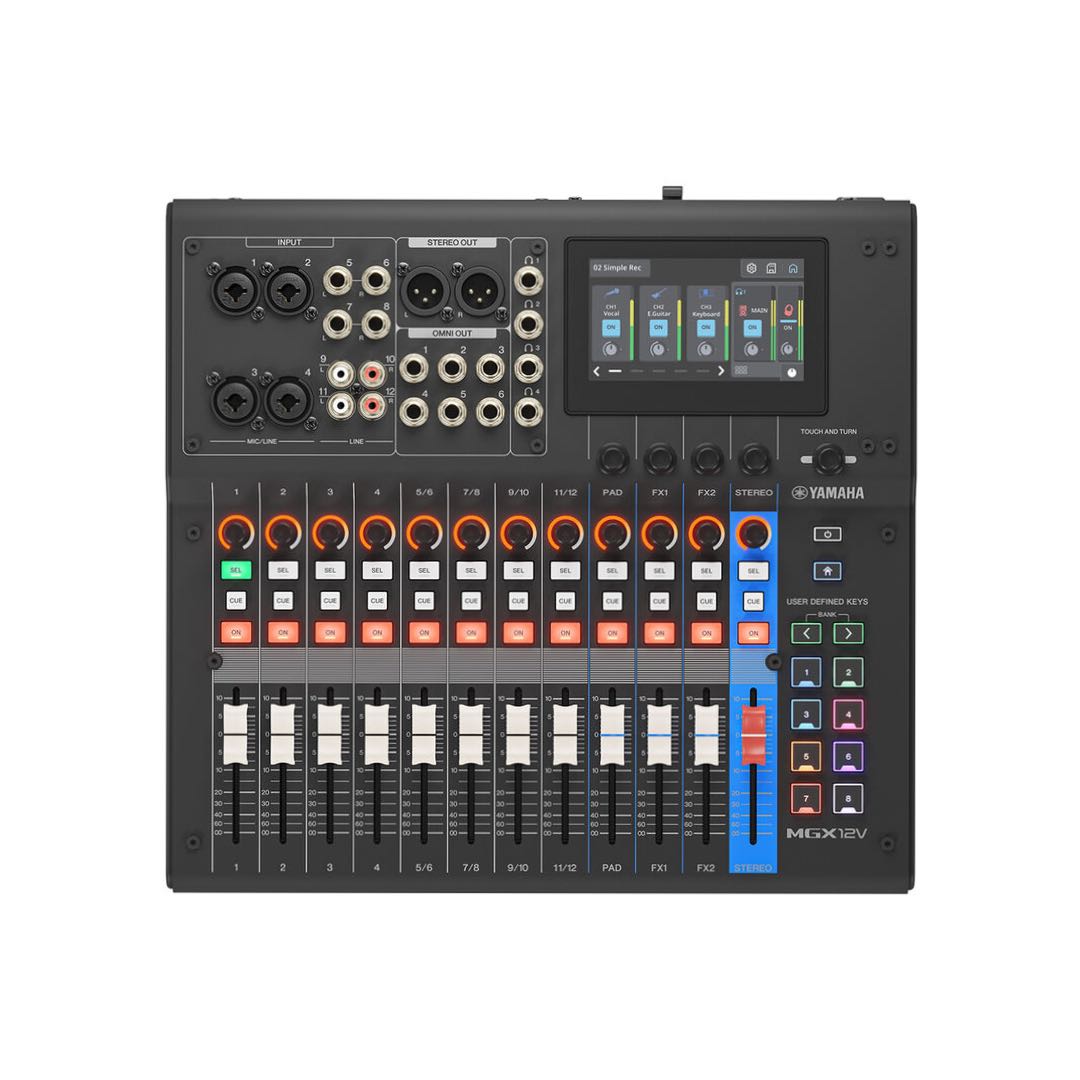

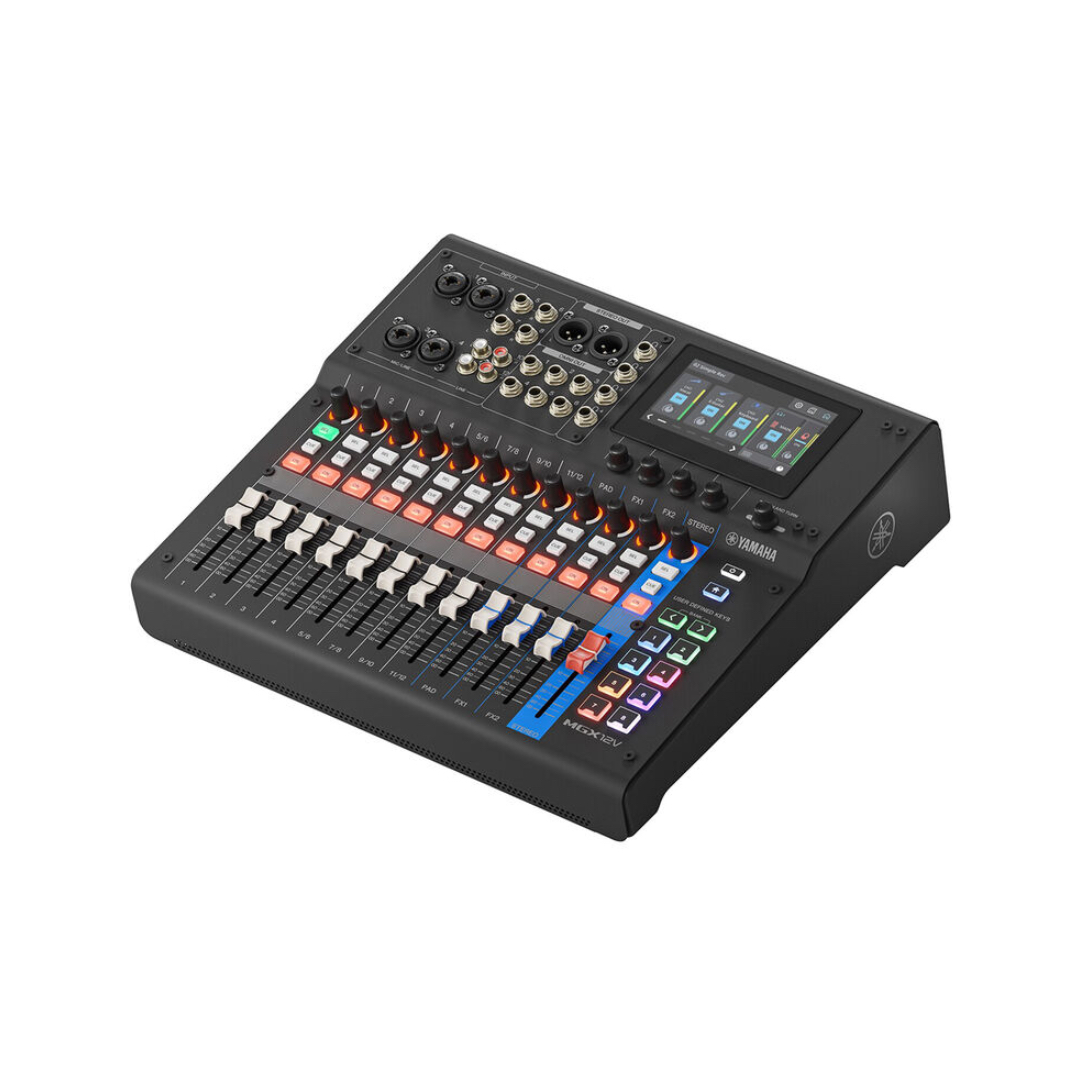

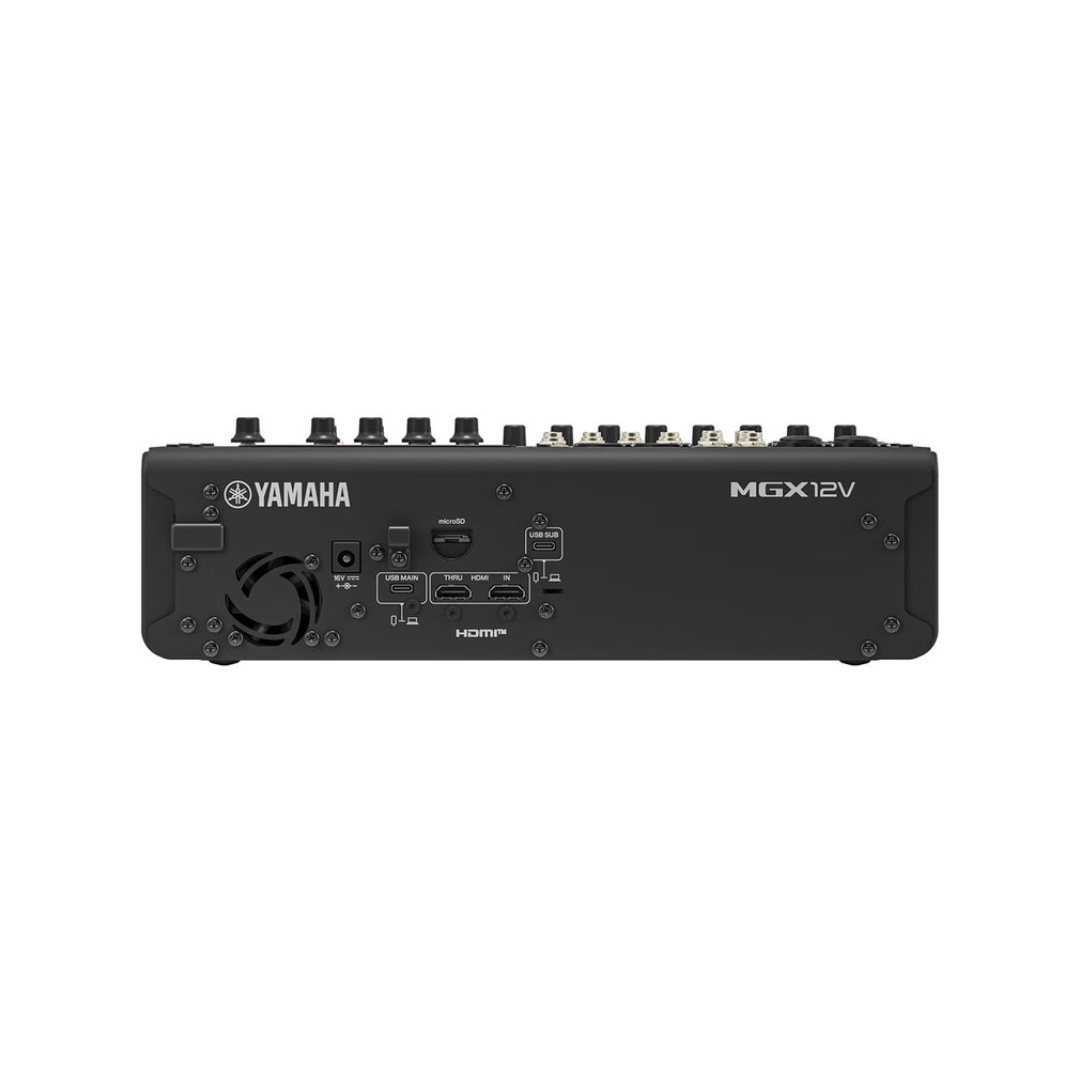

Yamaha MGX12V (Black)
Yamaha MGX12V (Black) - Image 2
Yamaha MGX12V (Black) - Image 3
, ,

Yamaha MGX12V (Black)

Availability:

Available on backorder
Brands: Yamaha
Brands
  • 11 + 1 fader configuration (non-motorized faders)
  • 4.3″ touchscreen with five control knobs
  • Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
  • Busses: 8 Mix, 2 FX, 1 Cue, 1 Stereo

$1,729.00

Available on backorder

B 18-Channel Digital Mixing Console with Dual USB-C Audio/Video Interface (Black)

A New Digital Mixing Experience
The MGX12V B 18-Channel Digital Mixing Console from Yamaha builds on the legacy of the well-established and appreciated MG series, adding digital capabilities and a host of features that make it a great choice for live and installed sound, podcast/live streaming, recording, production, and many more audio/video applications.Designed to be operated quickly and intuitively through its touch-panel GUI with 4.3″ Touchscreen with 5 Control Knobs, a comprehensive selection of I/O options allow the user to design the system from the bottom up for any usage purpose. The MGX12V model also has an integrated USB-HDMI interface featuring 4K video capture and pass-through (12V/16V only), increasing its video production potential. Sound quality is bolstered by MGX preamps with 86 dB of gain range, and an included software bundle that features studio mainstays Cubase, Wavelab, and more. Ensure your event goes off as smoothly as possible with assistive additions like Automix, Clip Safe, and scene recall. Whether in clubs, convention centers, or houses of worship, the MGX quickly accommodates a wide range of audio and video production situations, with the quality and durability that users expect from Yamaha.

Assistive Features
  • Simple/Standard Mode
  • Auto Gain
  • Clip Safe
  • Scene Recall
Software Bundles with Steinberg Plus
  • Cubase Al
  • WaveLab Cast LE
  • Basic FX Suite
  • HALion Sonic: a free player for sample libraries, synths, and hybrid instruments with free content, synth engine, and VST3/AU/AAX/standalone support
  • Groove Agent SE: offers a vast drum library, FX, and powerful beat-making tools with deep integration, available as VST3, VST2, AU, AAX, and standalone.
  • Retrologue: emulates classic analog tone with 3 oscillators, rich filters, arpeggiator, modulation, and FX
  • Anima: hundreds of modern synth sounds with 2 wavetable oscillators, flexible modulation, arpeggiator, 8-voice layering, smooth crossfades, and syncable LFOs
  • Ambient Lounge: jazzy percussion, bass, soulful textures
  • Indie Rock: melancholic guitars, raw leads, modern garage vibes
  • Progressive House: arpeggiated leads, chord stabs, floor-filling drums
The V models (MGX12V, MGX16V) of the MGX series feature an HDMI input and thru port, for incorporating video into your live shows or productions. Take your projects to the next level by breaking out of the audio-only framework.
Input FX
  • Gate: mutes or reduces signals below threshold, remove hum, ambient noise, and unwanted sound
  • Compressor: balance levels in real time, eliminate peaks and dips, ensure clear, consistent audio
  • EQ: Adjust frequencies to accommodate various speakers and needs
  • Sweet Spot Morphing Channel Strip: Blend EQ and compression using the Morph Knob, for quick dynamic shaping with side-chain options, presets, and intuitive control
  • Ducker: automatically lowers background audio when speech or signals dominate (stereo channel only)
Insert, FX Channel, and Streaming Mix FX
  • Guitar Amp Classics: Clean/Crunch/Lead/Drive- a high-gain tube amp rich in overtones, ideal for lead guitar lines
  • Pitch Fix (Voice Changer): Alter voices for music, dubbing, gaming, or streaming
  • Compander H-hard/S-soft: Hard and soft companders combine the effects of the compressor, expander and limiter
  • REV-X Reverb: Classic Hall, Room, and Plate reverbs
  • Delay: Repeats audio to add depth and space
FEATURES
  • 11 + 1 fader configuration (non-motorized faders)
  • 4.3″ touchscreen with five control knobs
  • Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
  • Busses: 8 Mix, 2 FX, 1 Cue, 1 Stereo
  • Local I/O: 8 Mic/Line (4 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs and 2 XLR, 6 TRS Phone, 4 Headphone outputs
  • USB Main: 18 inputs / 18 outputs (32-bit / 96 kHz)
  • USB Sub: 2 inputs / 2 outputs (16-bit / 48 kHz)
  • Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
  • microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
  • HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
  • Built-in DSP processor for professional sound and latency-free monitoring
  • Assistive features: Auto Gain, Clip Safe, Simple/Standard modes, Scene Recall
  • Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast LE, Basic FX Suite, Steinberg Plus), AC power adapter
Categories: , , Tags: , , Brand:
Brands

Yamaha
Product Type

Digital Mixers
Color

Black
Max I/O Capacity
16x Input / 8x Output
Number of Analog Input Channels
16
Number of Mic Preamps
4
Number of Analog Output Channels
8
Faders & Level Adjustment
12 Fader
Built-In Effects
13x Stereo Effect (Type Unspecified)
Analog Inputs
8x Combo XLR-1/4″ TRS Stereo Input
4x 1/4″ TRS Stereo Input
4x RCA Stereo Input
Analog Outputs
2x XLR Output
8x 1/4″ Output
Digital I/O
No
USB I/O
2x USB-C
Wireless
No
Rack Mountable
Yes
Mixer
Max I/O Capacity
16x Input / 8x Output
Number of Analog Input Channels
16
Number of Mic Preamps
4
Number of Analog Output Channels
8
Mix Routing
1x Matrix
2x Bus
1x FX Return
Presets
Yes
Display
Main Display:
4.3″ Touchscreen
Faders & Level Adjustment
12 Fader
Meters
12x LED
Signal Processing
Gain/Trim Range
Up to +86 dB
EQ
No
Graphic EQ
Yes
Solo/Mute
Solo, Solo-in-Place/AFL, Mute, PFL per Input Channel
Built-In Effects
13x Stereo Effect (Type Unspecified)
Audio Delay
Yes
Automatic Mic Mixing
Yes
Digital Audio
Sample Rates
Up to 96 kHz
Performance
Frequency Response
20 Hz to 20 kHz (at 1 kHz)
Analog Dynamic Range
125 dB at Min Gain
115 dB at Min Gain
THD
Mic Input:
< 0.002% at Min Gain (+4 dBu)
Signal Generator
Yes
Connectivity
Analog Inputs
8x Combo XLR-1/4″ TRS Stereo Input
4x 1/4″ TRS Stereo Input
4x RCA Stereo Input
Analog Outputs
2x XLR 3-Pin Stereo Output
8x 1/4″ TRS Stereo Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
2x USB-C
Other I/O
1x HDMI Breakout Cable Input
1x HDMI Breakout Cable Thru
Wireless
No
External Display I/O
No
Recording
Max Multitrack Recording
22 Tracks
Media Support
SD, USB Drive
Max Media Storage Capacity
1 GB
Compatibility
OS Compatibility
macOS 15 or Later / Windows 11 or Later
RAM Requirements
4 GB
Power
Input Power
100 to 240 VDC
Physical
Rack Mountable
Yes
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
13.2 x 12.5 x 3.8″ / 33.5 x 31.8 x 9.7 cm
Weight
9 lb / 4.1 kg
Packaging Info
Package Weight
15.185 lb
Box Dimensions (LxWxH)
19.5 x 16 x 7.4″
