Yamaha PX10

Brands: Yamaha
Brands
  • Class-D amplifier engine with single custom LSI chip and PLL technology
  • Configuration Wizard allows for configuration of the system by assigning optimized speaker settings which can be saved as presets
  • Digital routing of inputs & output (dual, parallel, single & SUM)
  • DSP functions include PEQ, crossover, filters, delay & limiter, accessed via an LCD display

$1,822.00

Stereo Power Amplifier (1000W at 8 Ohms)

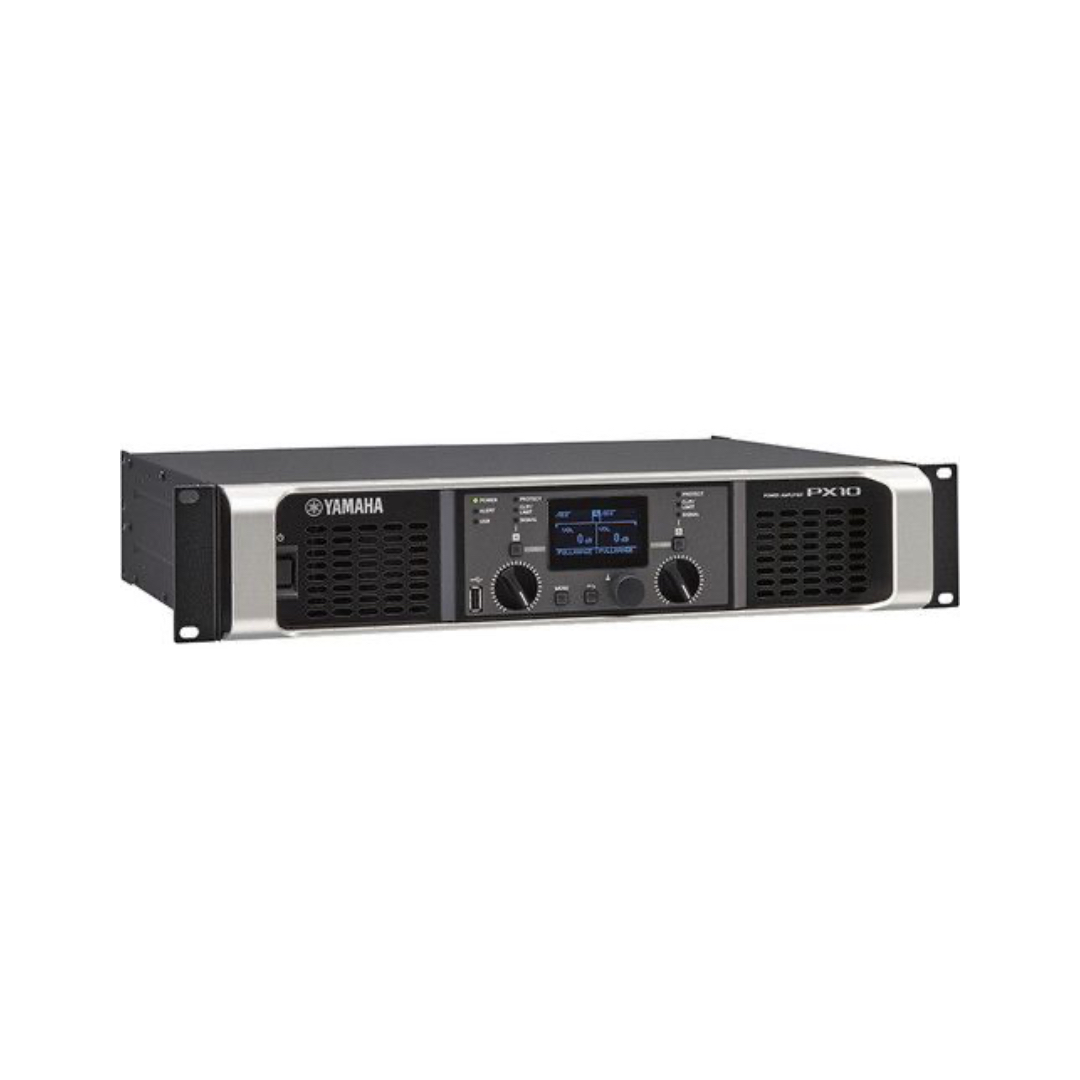

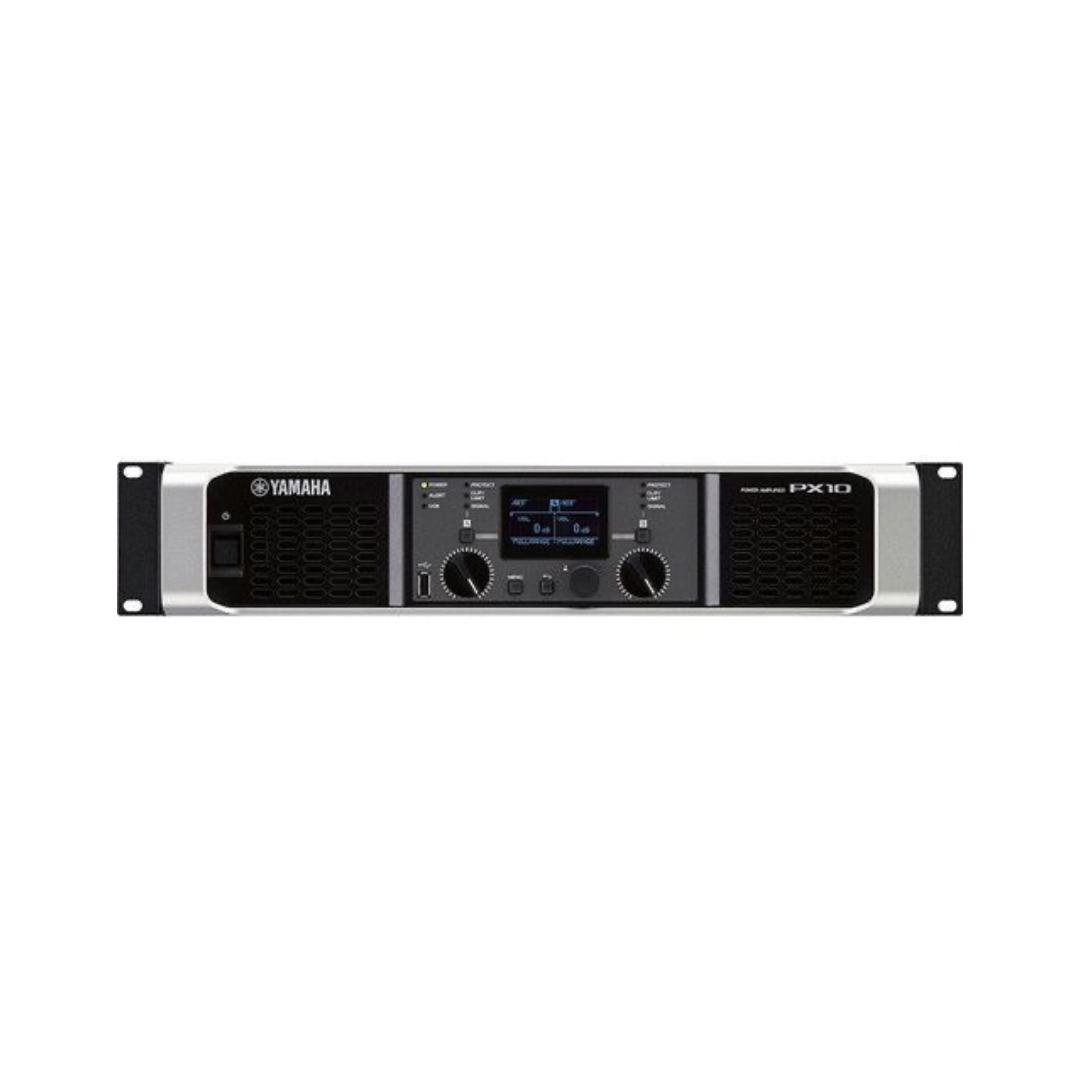

The Yamaha PX10 Stereo Power Amplifier delivers 1000W at 8 Ohms in a lightweight chassis and is suitable for a wide variety of sound-reinforcement applications. Part of the company’s PX Series of power amplifiers, it features a Class-D engine with a single custom LSI chip, and uses PLL technology for higher efficiency and lower noise.

The on-board DSP functions include a PEQ, a delay, a crossover, and a limiter. They allow for detailed configuration of parameters such as input & output routing, input sensitivity, amp gain, and speaker impedance. The D-Control multi-band dynamic processor delivers a clear and consistent sound at any output level by shaping the frequency response of each speaker for either front-of-house or monitor configurations.

The Configuration Wizard helps save time during setup by assigning optimized speaker settings that match your system configuration. It can be used in basic mode for quick setup or advanced mode for more precise control over DSP parameters. You can store up to eight presets, which can be saved to a USB drive for use with other amplifiers and setups.

For secure operation, the panel-locking function ensures that your settings remain safe. With its sturdy frame and carrying handle, the PX10 is built to withstand extended road use.

FEATURES

  • Class-D amplifier engine with single custom LSI chip and PLL technology
  • Configuration Wizard allows for configuration of the system by assigning optimized speaker settings which can be saved as presets
  • Digital routing of inputs & output (dual, parallel, single & SUM)
  • DSP functions include PEQ, crossover, filters, delay & limiter, accessed via an LCD display
  • D-Contour multi-band dynamic processing shapes the frequency response of speakers for specific applications
  • Basic mode for quick setup and Advanced mode for more precise control
  • Flexible connectivity with XLR & 1/4″ TRS inputs and binding post, SpeakON & 1/4″ TS outputs
  • Presets can be saved to USB drive for use with other amplifiers and setups
  • Panel-locking function to keep settings safe
  • Two 16-step variable-speed fans
  • Lightweight chassis
Categories: , , Tags: , Brand:
Brands

Yamaha
Product Type

Amplifiers
Form Factor/Type
Rackmount
Number of Amplifier Channels
2
Load Impedance/Voltage Support
8 Ohms
Power Rating per Channel
2x 700 W at 2 Ohms
2x 1200 W at 4 Ohms
2x 1000 W at 8 Ohms
Amplifier Class
Class-D
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB (at 1 W, 8 Ohms)
SNR/Noise
101 dB SNR
THD/Distortion
≤ 0.1% THD+N (1 kHz, at 10 W)
≤ 0.3% THD+N (1 kHz, at 1/2 Power)
Crosstalk
< -60 dB
Signal Processing
AD/DA Conversion
24-Bit / 48 kHz
DSP
Yes
Audio Delay
Adjustable Up to 74 ms
EQ & Filters
6-Band Parametric EQ, High-Pass Filter, Low-Pass Filter
Dynamics
Limiter

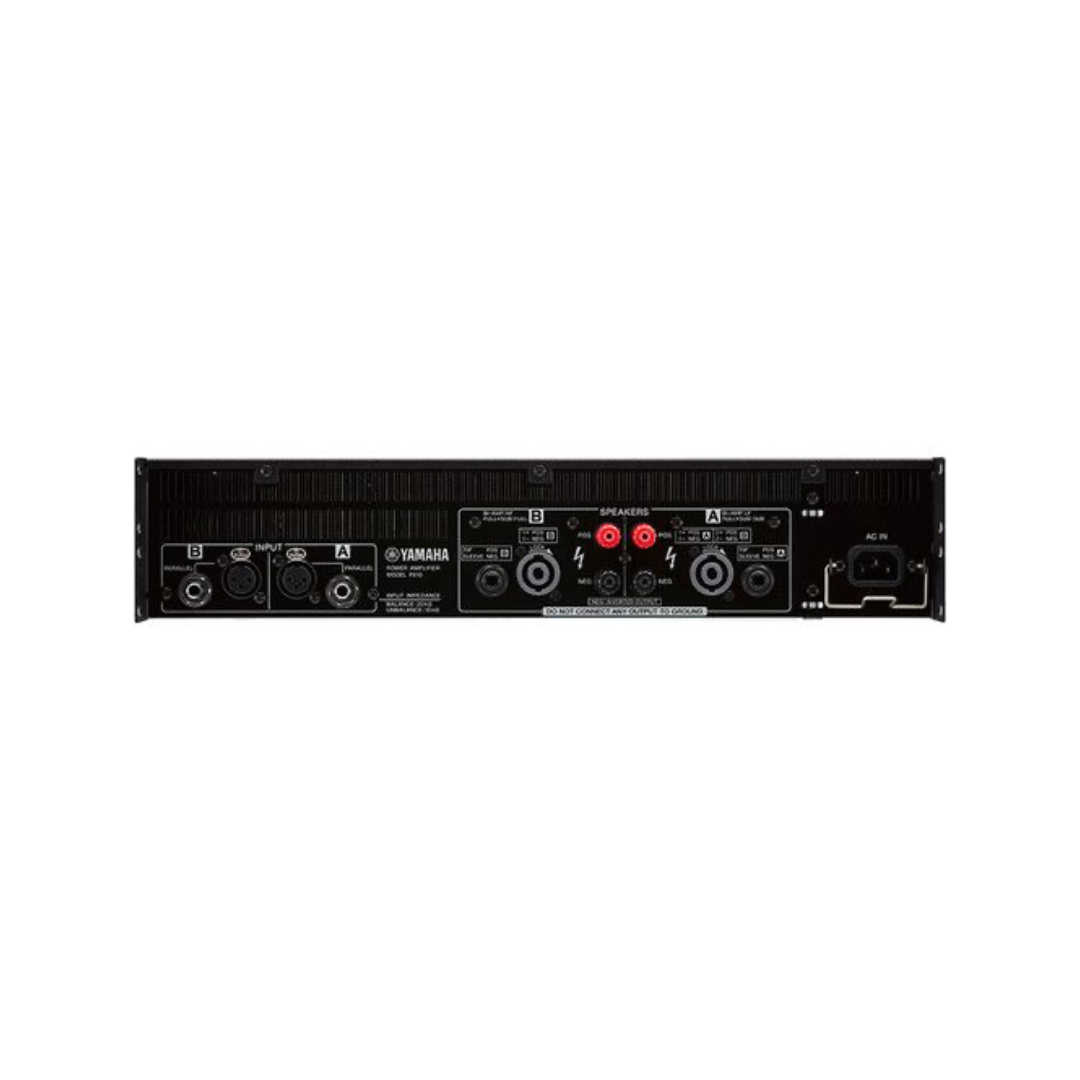

Connectivity
Analog Audio I/O
2x XLR 3-Pin Input
2x 1/4″ TRS Input
2x speakON NL4 Output
2x Binding Post Pair Output
2x 1/4″ TS Output
Digital Audio I/O
No
Network I/O
No
USB I/O
1x USB-A
Phantom Power
No
Wireless
No
Power
Input Power
120 VAC, 60 Hz
AC Power Connector
1x IEC
Power Consumption
60 W (Idle)
310 W (1/8 Power at 4 Ohms)
Physical
Display
Backlit LCD
Rackmount Size
2 U
Cooling
2x Fan (Variable Speed)
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
18.9 x 15.25 x 3.46″ / 480 x 387.4 x 88 mm
Weight
16.31 lb / 7.4 kg
