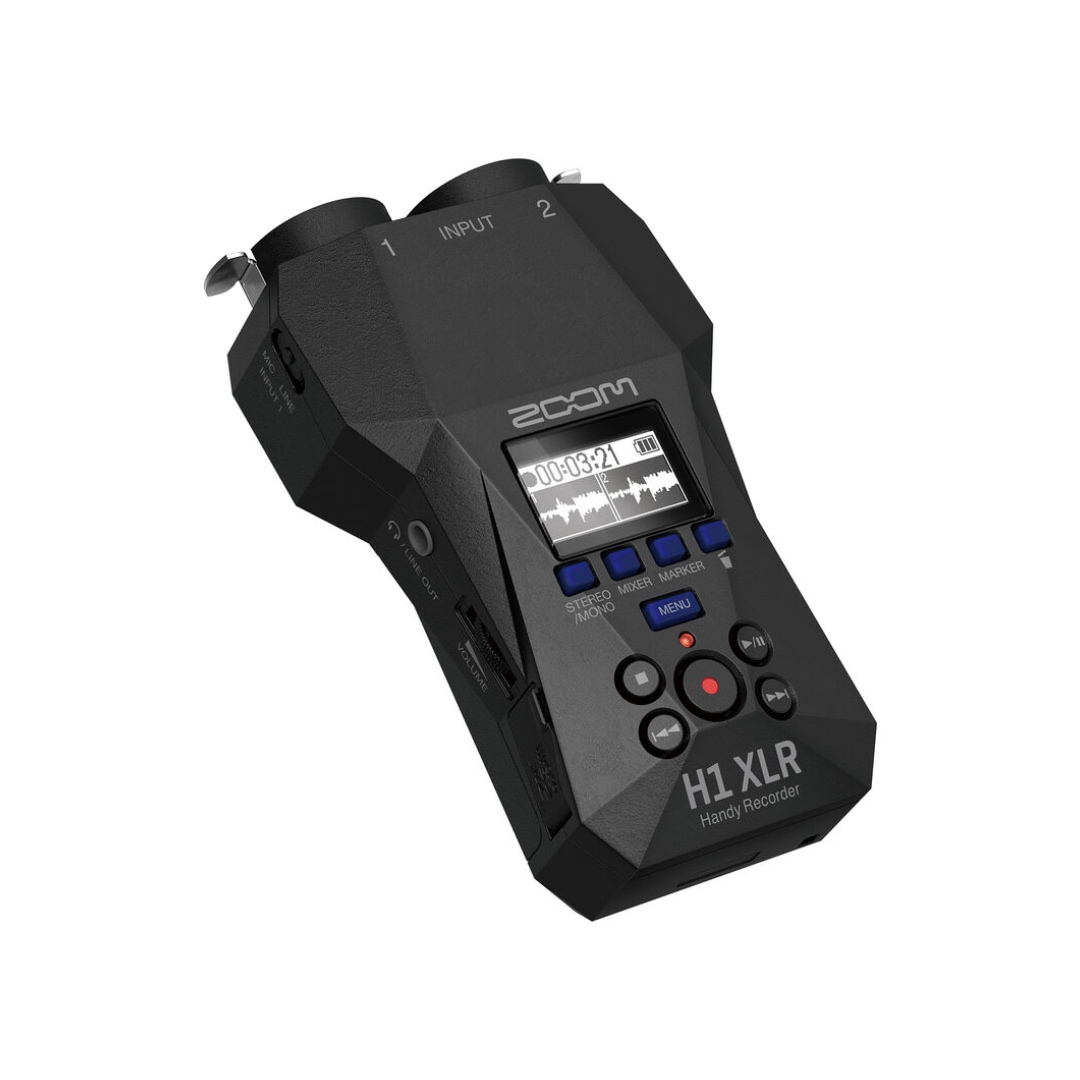

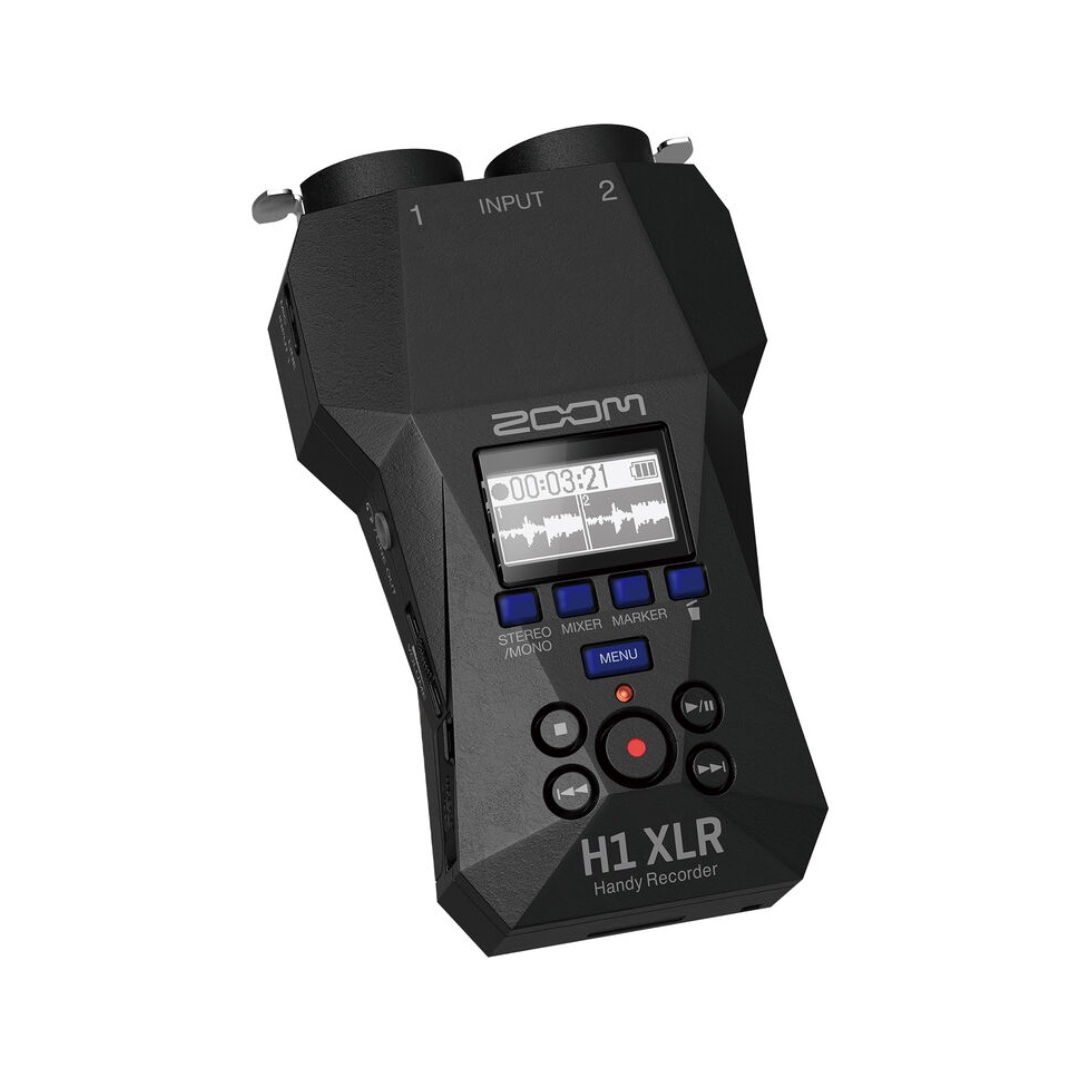

Zoom H1 XLR Portable Recorder
Zoom H1 XLR Portable Recorder - Image 2
Zoom H1 XLR Portable Recorder - Image 3

Zoom H1 XLR Portable Recorder

Brands: Zoom
Brands
  • For Content Creators and Audio for Video
  • Two XLR-1/4″ TRS Combo Inputs
  • Ultralow Noise Mic Preamps
  • Clip-Free 32-Bit Float Recording

$205.00

Portable Audio Recorder for Video

Built as an ideal companion for modern content creators, the H1 XLR from Zoom is a portable audio recorder that excels at recording audio for video. Sporting two XLR-1/4″ TRS combo mic/line inputs, a 3.5mm stereo jack for aux and lav input, and 32-bit float recording for huge dynamic range, H1 XLR supports a wide range of applications.

The low-noise mic preamps sport phantom power for professional condenser mics, and the 3.5mm input provides plug-in power for lavaliers, letting you easily record podcasts, direct feeds from mixers, audio for video shoots, and much more. The USB-C connection offers easy connectivity with computers and smart devices for live streaming, 2×2 audio interface duties, or optional bus power. The H1 XLR supports battery power via two AA batteries and power supply input (both sold separately). The integrated mixer and high-contrast OLED display make operation smooth and intuitive.

Ideal Applications
  • Perfect for mounting on your video rig to record great audio from shotgun or wireless mics
  • Ideal for stereo field recording, as 32-bit float allows you to capture roaring engines and delicate whispers of nature with clarity
  • Use the H1 XLR and two of your favorite mics to easily record podcasts anywhere you go
  • Capture live band performances or DJ sets by taking a stereo feed from your mixing board
  • Your Versatile Companion in The Field
    Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone’s video. The H1 XLR is perfect for video podcasts, live streams, and more.Alternatively, connect to a PC, Mac, iOS, or Android device and use the H1 XLR as a 2×2 audio interface while simultaneously recording to the microSD card. The H1 XLR supports microSDXC cards up to 1TB.

Intuitive Navigation and Operation
The high-contrast OLED screen makes it easy to navigate through the H1 XLR’s simple interface. The real-time waveform display lets you see your audio as it records.Use the built-in mixer to easily adjust each track’s audio level.Use the onboard speaker to listen to your recordings for quick reference and to utilize the accessibility functions. The H1 XLR is designed with accessibility for the blind and visually impaired, allowing you to navigate the menu with audible descriptions in English, Spanish, French, Japanese, German, Italian, or Chinese.

FEATURES
  • For Content Creators and Audio for Video
  • Two XLR-1/4″ TRS Combo Inputs
  • Ultralow Noise Mic Preamps
  • Clip-Free 32-Bit Float Recording
  • Flexible 3.5mm Stereo Input
  • USB-C for Computers and Smart Devices
  • Integrated Mixer with Bright OLED Screen
  • Built-In Phantom Power and Plug-In Power
  • 2×2 Class-Compliant USB Audio Interface
  • Supports SDXC Cards up to 1TB
Category: Tags: , Brand:
Brands

Zoom
Product Type

Portable Recorders, Recorders
Portable Recorder
Form Factor
Field Recorder
Number of Tracks
2 (3 Inputs + Stereo Mix)
Number of Input Channels
3 (2 x Mono, 1 x Stereo)
Maximum Sampling Rate
96 kHz / 32-Bit Float
Microphone
No
Number of Microphone Inputs
2
Built-In Speaker
Yes: 250 mW
Display
0.96″ / 2.44 cm Monochrome OLED
Memory Card Support
microSDXC (4 GB 1 TB)
Internal Storage
No
Special Features
No
Recording
Audio File Formats
Recording:
BWF, iXML, WAV
Sample Rates
44.1 / 48 / 96 kHz (Record)
Bit Depth
32-Bit (Floating Point)
Signal Processing & FX
No
Recording Time
48 MHz/32-Bit:
10 Hrs (Stereo)
Included Software
No
Connectivity
Analog I/O
2x Combo XLR-1/4″ TRS Female Balanced/Unbalanced Line/Mic Input (Lockable)
1x 1/8″ / 3.5 mm TRS Female Aux/Mic Input
1x 1/8″ / 3.5 mm TRS Female Headphone Output
Digital I/O
No
Phantom Power
+48 V
Phantom Power Current
≤ 10 mA per Channel
Plug-In Power
Yes: 2.5 V
System Connection
1x USB-C (2.0)
Audio Interface Capability
Stereo Only
Wireless
No
Mobile App Compatible
No
Performance
Max Input Level
Mic Inputs:
+4 dBu
Line Inputs:
+24 dBu
Headphone Output Power
20 mW per Channel into 32 Ohms
Impedance
Mic Inputs:
≥3.8 Kilohms
Line Inputs:
≥39 Kilohms
1/8″ / 3.5 mm Inputs:
≥2 Kilohms
Equivalent Input Noise (EIN)
≤-122 dBu
Power
Power Options
Battery, USB Bus Power
Battery Type
2x AA
Approximate Battery Life
12 Hours (Alkaline)
11 Hours (NiMH)
19 Hours (Lithium)
AC/DC Power Adapter
5 VDC at 1 A (Not Included)
Physical
Included Accessories
No
Mounting Options
Shoe Mount (Bottom)
Dimensions
4.2 x 2.4 x 1.5″ / 10.7 x 6.2 x 3.9 cm
Weight
5.8 oz / 164 g
Packaging Info
Package Weight
0.445 lb
Box Dimensions (LxWxH)
5.5 x 4.2 x 1.9″
