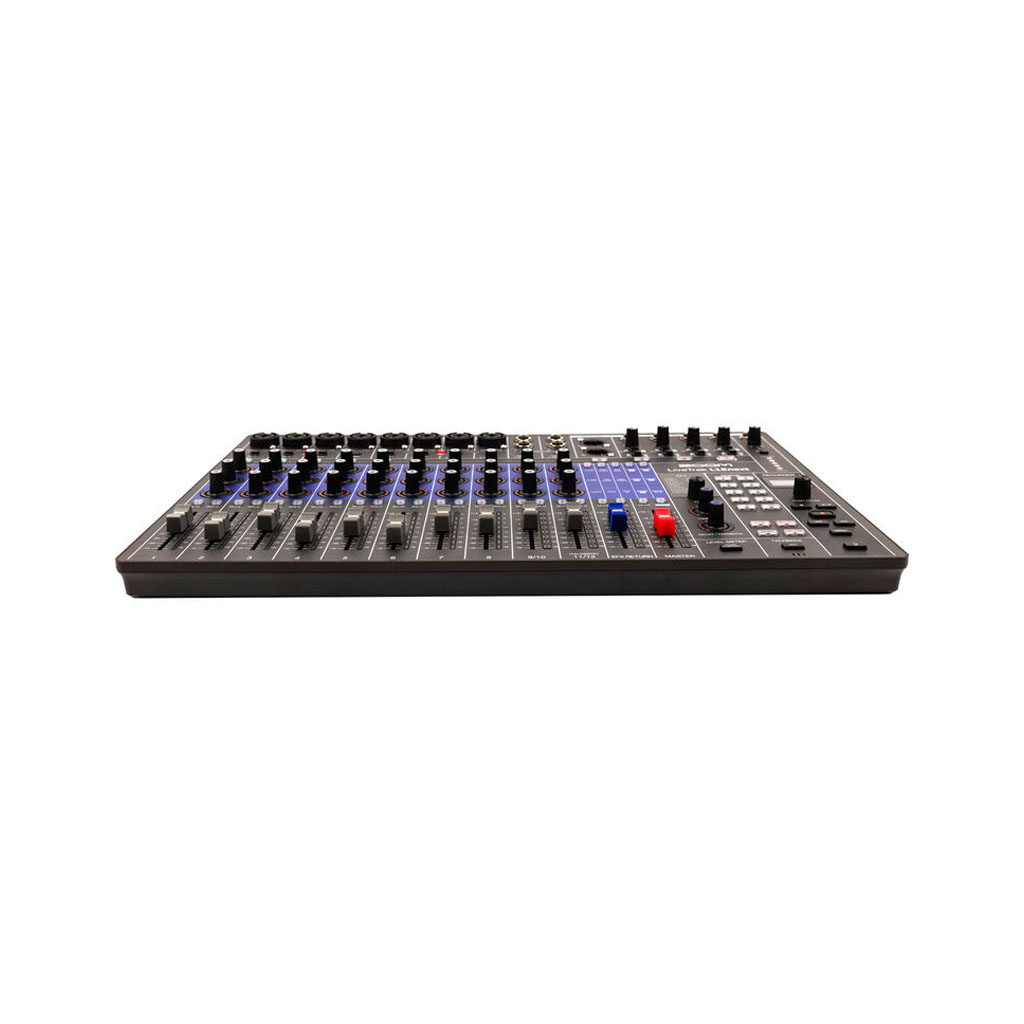

Zoom LiveTrak L12Next

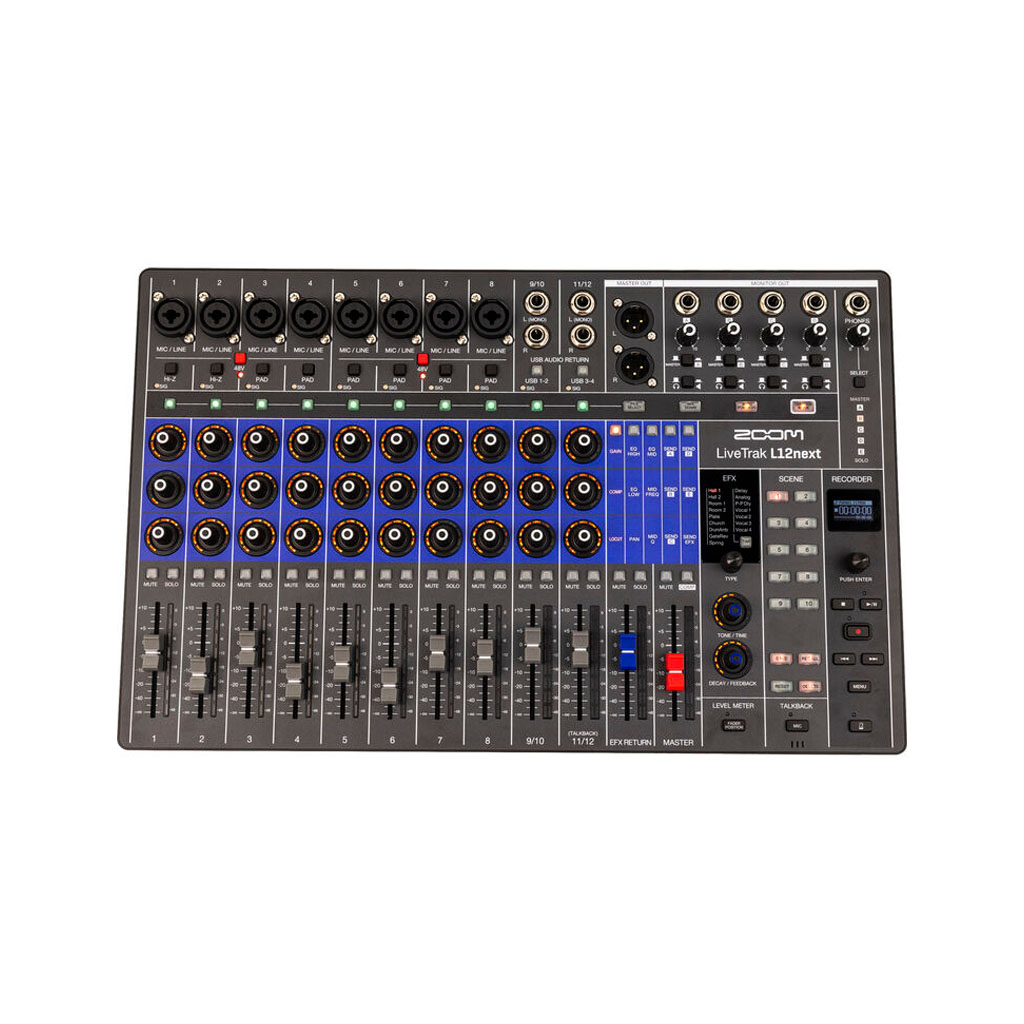

Zoom LiveTrak L12Next - Image 2

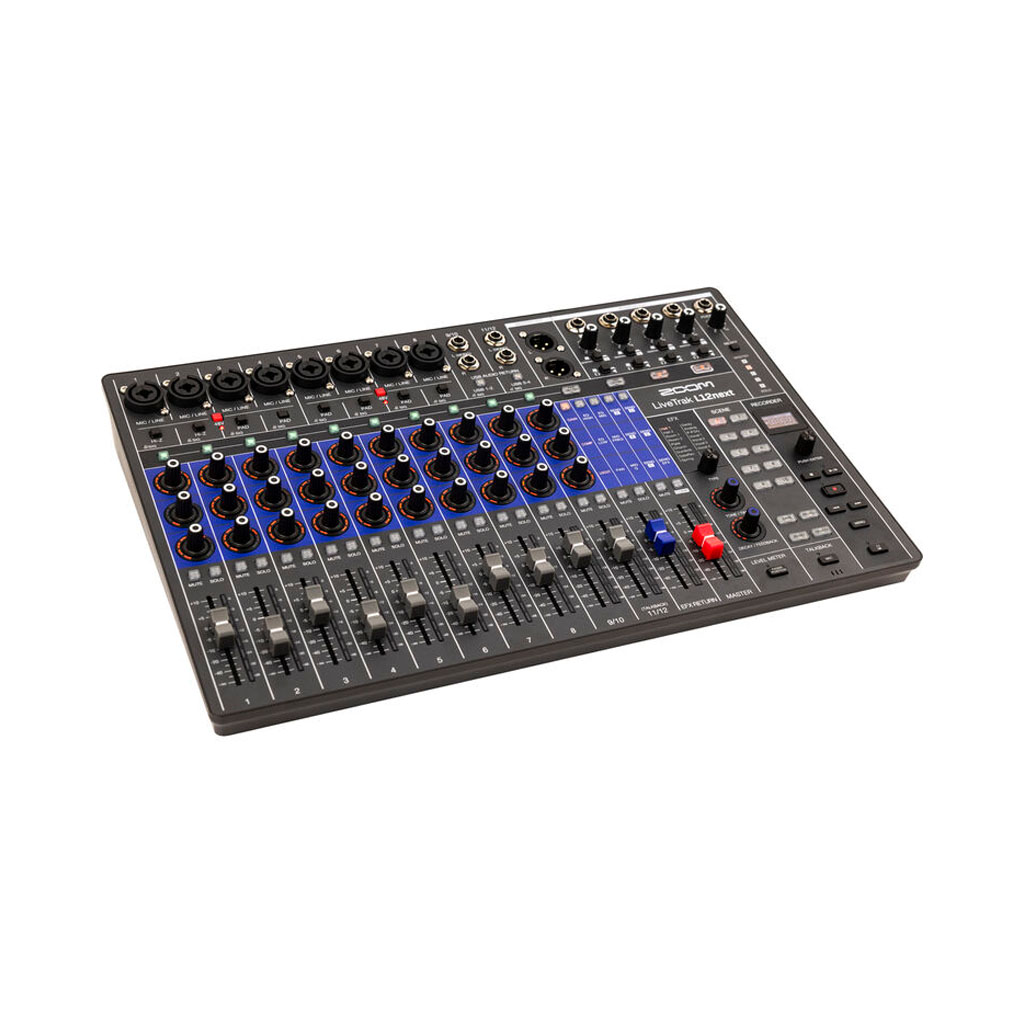

Zoom LiveTrak L12Next - Image 3
,

Zoom LiveTrak L12Next

Brands: Zoom
Brands
  • Ideal for Live Performances & Streaming
  • 8 x XLR-1/4″ Combo Mic/Line/Hi-Z Inputs
  • Two Stereo 1/4″ Line Input Channels
  • +70 dB of Gain, Pad & 48V Phantom Power

$970.00

Combining the powers of a digital mixer and multitrack recorder with analog-style control, the Zoom LiveTrak L12next is a 12-channel digital mixer with integrated 14-channel recording and 14×4 USB-C interface functionality. Sporting five independent output mixes for five monitoring destinations, the L12next is ideal for live performances and streaming.

Each mono input channel features a 60mm fader, three multifunctional encoder knobs for analog-style gain, EQ, compression, panning, or FX send control, mute, solo, and pad control. 48V phantom power can be activated in groups of four. Hi-Z mode can be switched on for each mono channel for passive instrument inputs like guitars and electric keyboards. An OLED screen streamlines digital control. The recorder can capture 14 tracks in up to 24-bit / 96 kHz, recording to either the internal memory or an SD card, and stereo master bus capture can be performed in crisp 32-bit float. 16 onboard FX keep things lively and creative, with useful reverbs and delays that are ideal for live rehearsals and performances. The mixer also supports wireless mix control via the L12next Control app.

Control Features
Easy Control
The L12next combines the power of a digital mixer with analog-style operation. Three knobs per channel deliver High/Mid/Low EQ, and with a simple switch, you can adjust gain, pan, and sends, offering hands-on mixing like a classic analog console.
Everything You Need on Every Channel
The L12next puts you in total control, letting you mix with speed and confidence, whether you’re on stage or in the rehearsal room. In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends. No more scrolling through menus.
Upgraded Preamps
The L12next’s upgraded preamps deliver clean gain (+70 dB), low noise (-128 dBu EIN), and full input flexibility with Hi-Z, pad, and +48 V phantom power.
Audio Interface and Control Surface
The L12next is a 14-in/4-out USB-C audio interface for Mac, Windows, and mobile, supporting 24-bit / 96 kHz recording and playback. Record to computer and SD card simultaneously, sync tracks, and even control your DAW.
Perfect Takes
Newly added features such as Overdub mode and Auto Punch In/Out allow precise layering and easy re-recording. The new File Select button allows you to easily load additional tracks to expand your mix.
Capture Your Perfect Final Mix
The L12next’s master channel captures your mix in 32-bit float for pristine, clip-free sound, while the master compressor adds warm, natural compression that enhances the overall mix.
Monitoring Options
Five Personal Mixes
With five independent Monitor Outs, every musician can have a personal mix. Outputs support stereo for headphones and in-ears, or mono for stage monitors, making it flexible for live or studio use.
For the Sound Guy
The sound engineer’s output lets you quickly monitor and adjust both the master and each monitor out mix. Use the built-in Talkback function for easy communication between the engineer and musicians.
Custom Scene Recall
The L12next stores up to 10 scene memories, saving fader positions, EQ, pan, mutes, effects, and more. Instantly recall mixes for live performances or recording in the studio.
LED Meters
The L12next’s LED meters show the volume level of each channel and setting of each encoder. The new Fader Position button lets you quickly view saved fader positions when recalling scenes.
A Little FX Goes a Long Way
Enhance your sound with 16 onboard effects, such as delays and reverbs, with two easily accessible parameter controls.
Wireless Mixing Control
Control your mix wirelessly with the L12next Control app for iPad. Adjust faders, scenes, EQ, effects, and more.
Stream Ready
Going live? The L12next integrates seamlessly with streaming software, making it the ultimate hub for podcasts, performances, and online broadcasts.
Hands-Free Control
Connect the optional Zoom FS01 footswitch to control key functions like effect mutes, punch-in/out, and playback.
Optional Rack Mounting
The optional RKL-12 rackmount adapter that lets you mount your LiveTrak L12next or in any standard rack.
FEATURES
  • Ideal for Live Performances & Streaming
  • 8 x XLR-1/4″ Combo Mic/Line/Hi-Z Inputs
  • Two Stereo 1/4″ Line Input Channels
  • +70 dB of Gain, Pad & 48V Phantom Power
  • 60mm Faders, 3 Multifunction Knobs
  • 3-Band EQ, Compressor, Pan, Mute & Solo
  • 16 Onboard FX, Wireless Mix Control
  • 14-Track 24-Bit / 96 kHz Recorder
  • 32-Bit Float Stereo Master Bus Capture
  • 14×4 USB-C Audio Interface Function
Categories: , Tags: , , Brand:
Brands

Zoom
Product Type

Digital Mixers, Recorders
Max I/O Capacity
14x Input / 6x Output
Number of Analog Input Channels
12 (8 Mono / 2 Stereo)
Number of Mic Preamps
8
Number of Analog Output Channels
6
Faders & Level Adjustment
12 Fader
34 Knob
Analog Inputs
8x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
4x 1/4″ TRS Balanced Line Input (2 Stereo Pairs)
Analog Outputs
2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)
5x 1/4″ TRS Stereo Monitor Output
Digital I/O
No
USB I/O
USB-C
Wireless
Bluetooth
*Built-In
Rack Mountable
Yes
Mixer
Max I/O Capacity
14x Input / 6x Output
Number of Analog Input Channels
12 (8 Mono / 2 Stereo)
Number of Mic Preamps
8
Number of Analog Output Channels
6
Mix Routing
8x Mono Bus
2x Stereo Bus
1x FX Return
Groups
No
Presets
No
Display
OLED
Faders & Level Adjustment
12 Fader
34 Knob
Meters
LED
Signal Processing
Gain/Trim Range
16 to 60 dB
Hi-Z:
0 to 44 dB
Input Pad
-20 dB (Mono Channels)
Input Polarity
Fixed
Dynamic Processing
Compressor
EQ
3-Band Semi-Parametric
Graphic EQ
No
Solo/Mute
Solo, Mute per Input Channel
Audio Delay
No
Automatic Mic Mixing
No
Digital Audio
Sample Rates
Up to 96 kHz
Bit Depth
Audio Streaming:
Up to 24-Bit
Multitrack Record:
32-Bit
Performance
Frequency Response
20 Hz to 20 kHz (at 44.1 kHz, -1 dB)
20 Hz to 40 kHz (at 96 kHz, -3 dB)
Max Input Level
Combo XLR-1/4″ Mic/Line Input:
-2 dBu
1/4″ TRS Line Input:
+14 dBu
I/O Impedance
Combo XLR-1/4″ Hi-Z/Main/Mic Input:
4.6 Kilohms (Mic/Line)
1 Megohm (Hi-Z)
Main Output:
200 Ohms
Monitor Output:
55 Ohms
Signal Generator
No
Connectivity
Analog Inputs
8x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
4x 1/4″ TRS Balanced Line Input (2 Stereo Pairs)
Analog Outputs
2x XLR 3-Pin Balanced Main Output (1 Stereo Pair)
5x 1/4″ TRS Stereo Monitor Output
Phantom Power
+48 V, Selectable On/Off
Digital I/O
No
MIDI I/O
No
USB I/O
USB-C
USB I/O Capacity
14x Input / 4x Output
Other I/O
1x 1/4″ TRS Footswitch/Control Input
Expansion Ports
No
Wireless
Bluetooth
*Built-In
External Display I/O
No
Recording
Max Multitrack Recording
14 Tracks
Media Support
SDHC, USB Drive
Max Media Storage Capacity
1000 GB
File Format Support
WAV
Compatibility
OS Compatibility
Windows / macOS
Power
Input Power
5 VDC
Physical
Rack Mountable
Yes
Dimensions
17.5 x 11.2 x 2.9″ / 44.5 x 28.5 x 7.3 cm
Weight
5.3 lb / 2.4 kg
Packaging Info
Package Weight
7.28 lb
Box Dimensions (LxWxH)
21.7 x 13.1 x 4.8″
