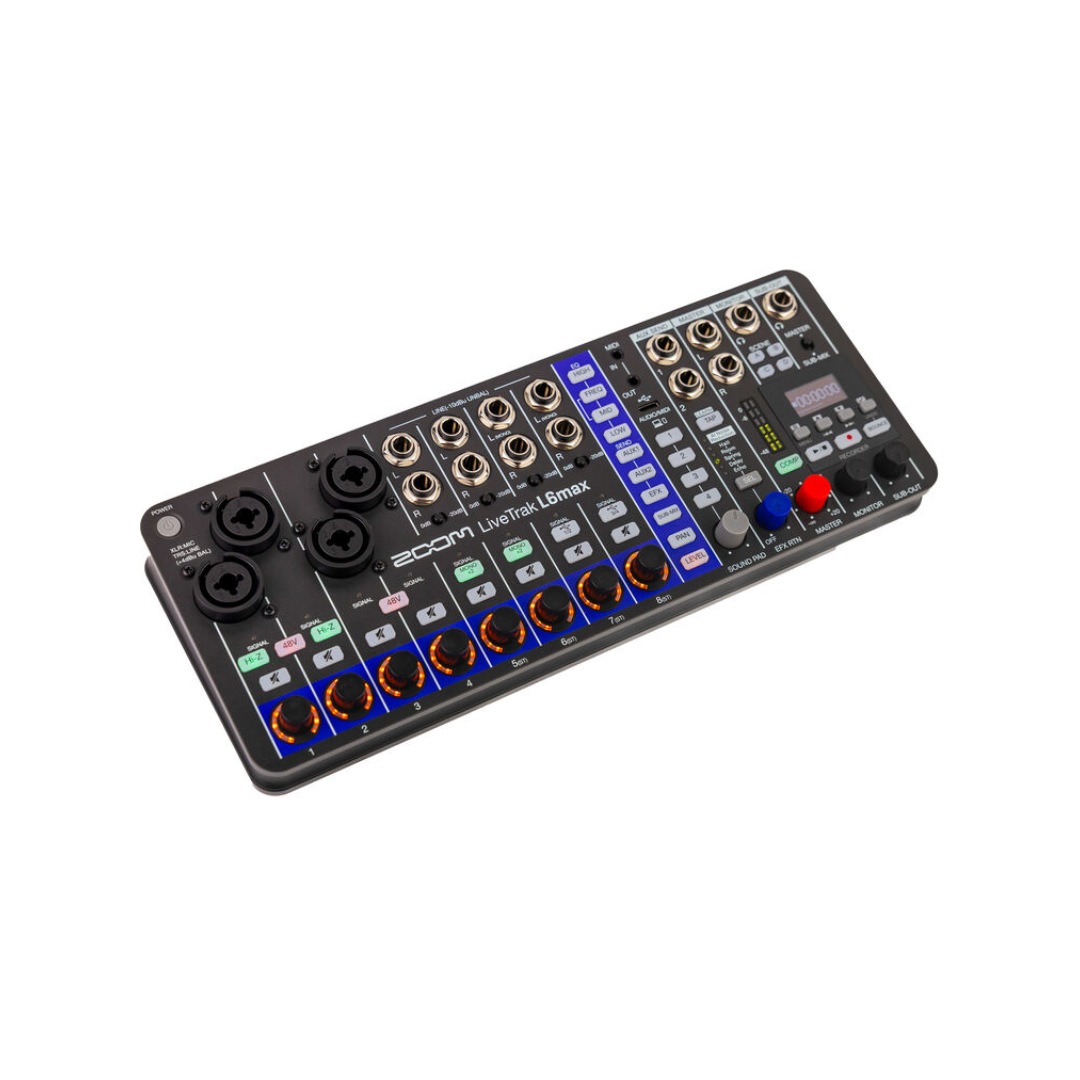

Zoom LiveTrak L6max
Zoom LiveTrak L6max - Image 2
Zoom LiveTrak L6max - Image 3
, ,

Zoom LiveTrak L6max

Brands: Zoom
Brands
  • For Music, Streaming, and Podcasts
  • 4 Combo + 8 Line Inputs, 2 with Hi-Z
  • Dual Headphones and Custom Sub-Out Mix
  • 14-Track SD Recording up to 2TB

$550.00

Portable 12-Channel Mixer and Recorder

Big Mixer Energy in a Compact Form
The Zoom LiveTrak L6max packs the power of a full-size mixer and multitrack recorder into a compact, battery-powered design. Whether you’re a solo performer, an acoustic duo, or a full band, the L6max is ready to be the centerpiece of your live show, rehearsal, or podcast. With 4 combo inputs (including 2 with Hi-Z), 8 line inputs, and 12 total channels, it provides the flexibility you need for any session.
Monitoring, Mixing, and High-Output Control
Stay in control onstage or in the studio with two headphone outputs and a customizable Sub-Out mix. Channels 5 to 8 feature a -20 dB Pad switch, making it easy to tame loud signals from vintage synths or Eurorack modules without external attenuators. A high-contrast OLED display keeps navigation clear and simple while you build your mix.
Multitrack Recording Without Limits
Record up to 14 tracks—12 individual channels plus a stereo mix—directly to SD cards up to 2TB. Save and recall projects anytime, or take advantage of unlimited overdubbing by bouncing tracks to the dedicated bounce channel. If a bounce doesn’t hit the mark, simply undo it and try again. Every take is preserved as an individual file for future mixing.
Intelligent Audio Technology
The L6max combines smart processing with pristine recording. AI Noise Reduction intelligently removes hum, hiss, and background distractions while keeping voices and instruments detailed. For loud performances, it records clip-free 32-bit float audio, with dual-AD converters on channels 1-4 to capture everything from subtle vocals to explosive drum hits without distortion.
Creative Sound Shaping
Dial in your tone with a 3-band EQ on every channel and add depth with onboard Reverb, Delay, and Echo, complete with TAP tempo. The master track compressor adds punch and saturation to your mix. And with 32-bit float, your audio stays clear and unclipped, even at high levels.
More Than a Mixer
The L6max doubles as a 12-in / 4-out USB audio interface for computer, iOS, or Android, and can record simultaneously to SD. It also functions as a DAW control surface, bridging live performance and production workflows.
Pro-Level Tools Built In
With two Aux Sends (pre-/post-fader), you can set up monitor mixes or FX loops. Save and recall up to four mixes with Scene Memory. Trigger samples, jingles, or sound effects with Sound Pads, which can also sync to MIDI clock for electronic performances. And with MIDI I/O and USB MIDI, you can connect synths, grooveboxes, or integrate with MIDI apps.
Flexible Customization and Power
The free L6 Editor app (Mac/Windows) lets you configure pads, effects, and MIDI assignments. For power, the L6max runs on AA batteries, USB bus power, or a mobile battery pack, so it’s equally ready for the studio or the road. With optional ERL-6 rack ears and power supply, it can also mount seamlessly into a standard Eurorack case for modular setups.
FEATURES
  • For Music, Streaming, and Podcasts
  • 4 Combo + 8 Line Inputs, 2 with Hi-Z
  • Dual Headphones and Custom Sub-Out Mix
  • 14-Track SD Recording up to 2TB
  • Unlimited Overdubs with Bounce Track
  • AI Noise Reduction for Clean Audio
  • 32-Bit Float with Dual-AD Converters
  • 3-Band EQ and Built-In Reverb/Delay/Echo
  • USB Interface and DAW Control Surface
  • Battery, USB, or Eurorack Power Options
Categories: , , Tags: , , , Brand:
Brands

Zoom
Product Type

Digital Mixers, Portable Recorders, Recorders
Number of Analog Input Channels
12 (4 Mono / 4 Stereo)
Number of Mic Preamps
4
Analog Output Channels
2x Mono Aux Send Output
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Tape/Record Output
Mix Routing
1x Stereo Main Mix
1x Stereo Bus/Subgroup
2x Mono Aux Send
1x FX Send
EQ
Input Channels:
3-Band EQ
Built-In Effects
6x
USB I/O
1x USB-C 2.0
Wireless
No
Max Multitrack Recording
14 Tracks
Rack Mountable
Yes
Mixer
Max I/O Capacity
12x Input / 5x Output
Number of Analog Input Channels
12 (4 Mono / 4 Stereo)
Number of Mic Preamps
4
Analog Output Channels
2x Mono Aux Send Output
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Stereo Tape/Record Output
Mix Routing
1x Stereo Main Mix
1x Stereo Bus/Subgroup
2x Mono Aux Send
1x FX Send
Faders & Level Adjustment
8x Channel Knob
Meters
2x 6-Segment LED
Signal Processing
Gain/Trim Range
Main:
+15 dBu
Aux:
+9.5 dBu
Input Pad
-20 dB (Line Inputs)
Input Polarity
Fixed
Dynamic Processing
Master:
Compressor
EQ
Input Channels:
3-Band EQ
EQ Parameters
High: ±15 dB at 10 kHz (Shelving)
Mid: ±15 dB at 100 Hz to 8 kHz (Peak)
Low: ±15 dB at 100 Hz (Shelving)
Graphic EQ
No
Solo/Mute
Mute per Input Channel
Built-In Effects
6x
Digital Audio
Sample Rates
48 kHz
Bit Depth
32-Bit
Performance
Frequency Response
20 Hz to 20 kHz
Max Input Level
XLR Mic/Line:
+4 dBu
1/4″ Line:
+24 dBu
Headphone Output Power
1/4″:
50 mW per Channel into 63 Ohms
I/O Impedance
XLR Line/Mic Input:
≥ 3.8 Kilohms
Noise Floor
≤ -120 dBu
Connectivity
Analog Inputs
4x Combo XLR-1/4″ Mic/Line Input
8x 1/4″ TS Line Input
Analog Outputs
5x 1/4″ Output
Phantom Power
+48 V
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-C 2.0
USB I/O Capacity
14x Input / 14x Output
Wireless
No
Recording
Max Multitrack Recording
14 Tracks
Media Support
SDHC
Max Media Storage Capacity
2000 GB
File Format Support
WAV
Compatibility
OS Compatibility
Computer: macOS / Windows
Mobile: Android/iOS
Mobile Device Compatibility
Android Smartphone
iPhone
iPad
Power
Input Power
5 VDC
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
5 VDC
Power Supply Output
100 to 240 VAC at 1 A
Physical
Rack Mountable
Yes
Dimensions
11.2 x 4.5 x 1.8″ / 284 x 114 x 46.5 mm
Weight
1.5 lb / 0.7 kg
Packaging Info
Package Weight
2.29 lb
Box Dimensions (LxWxH)
15.7 x 5.7 x 2.2″
