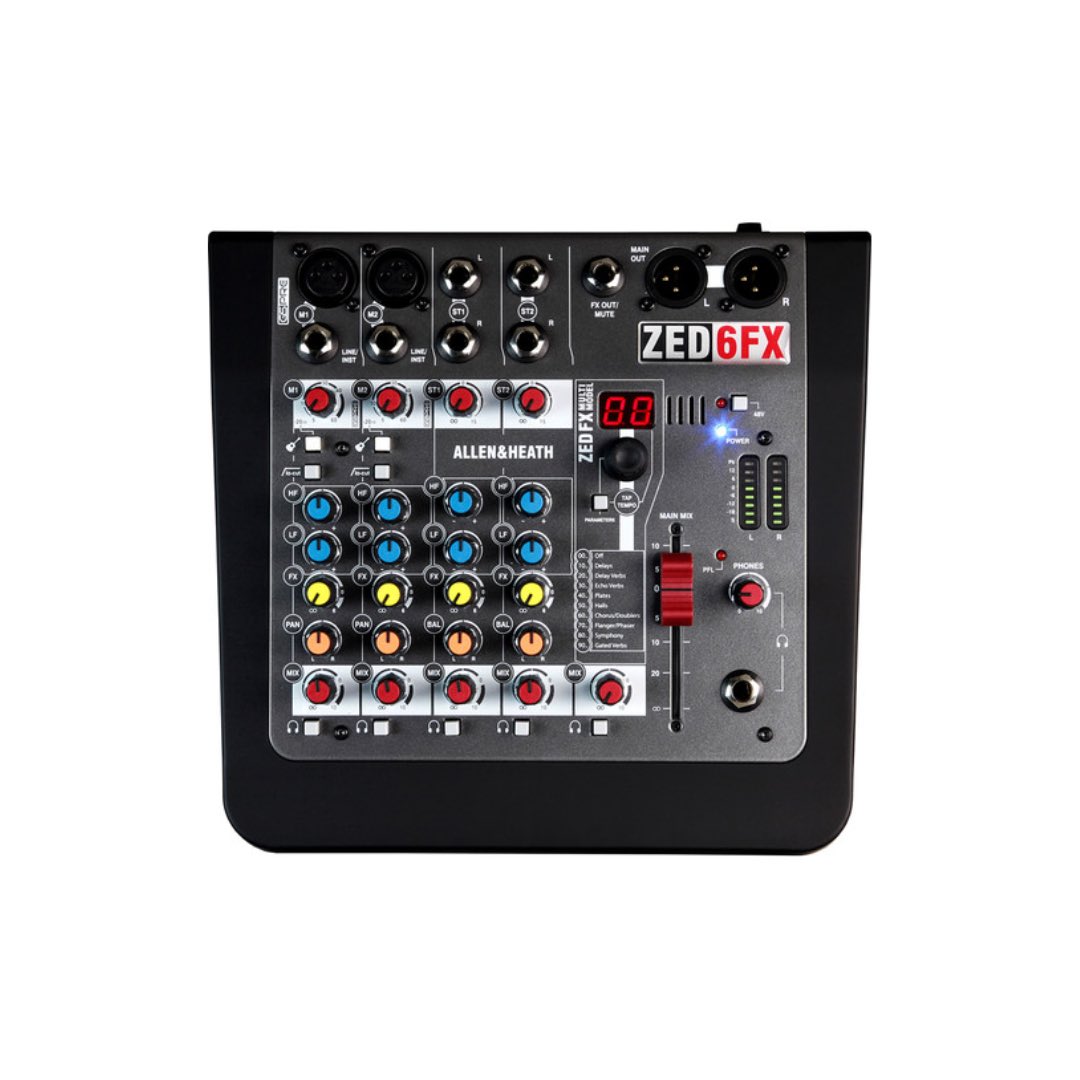

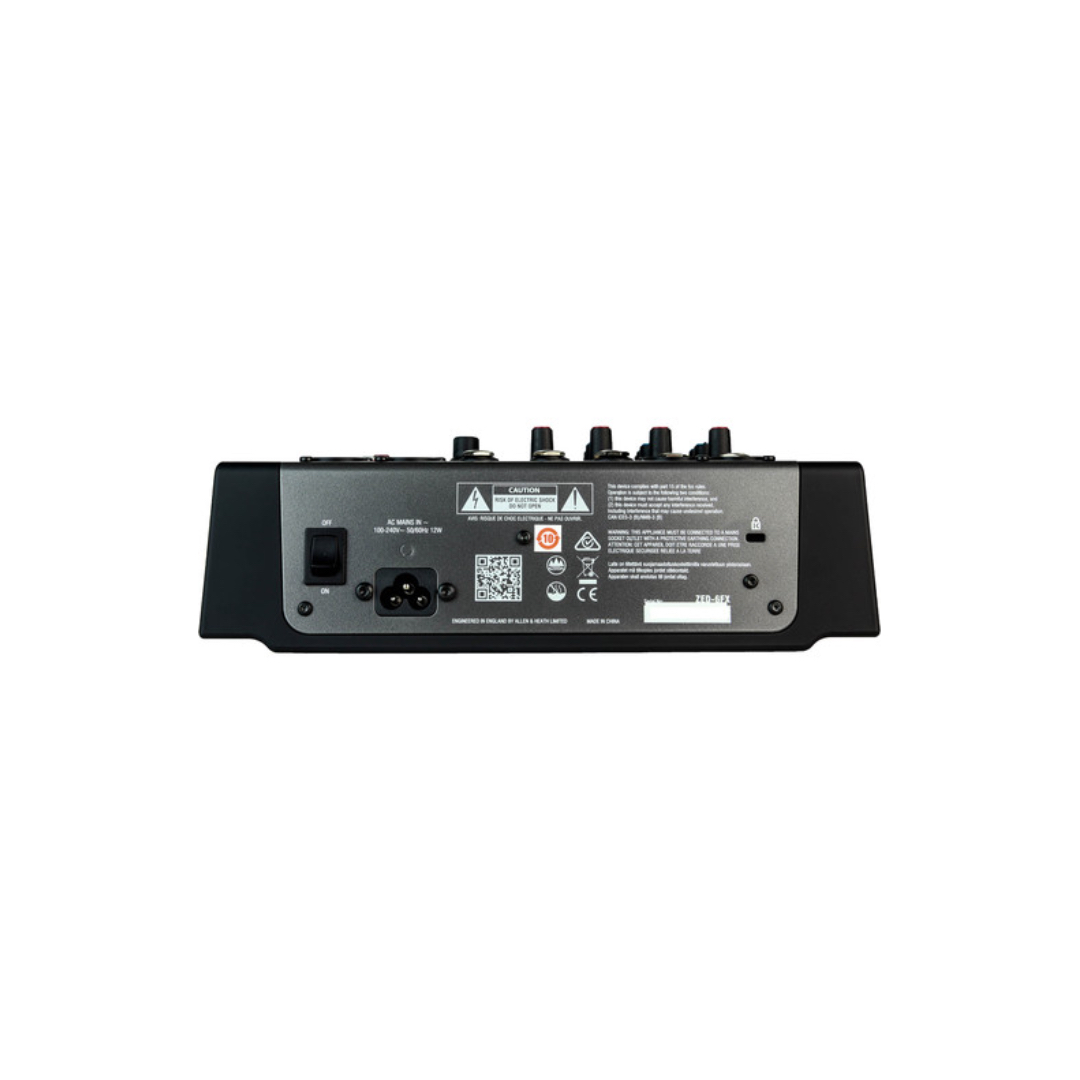

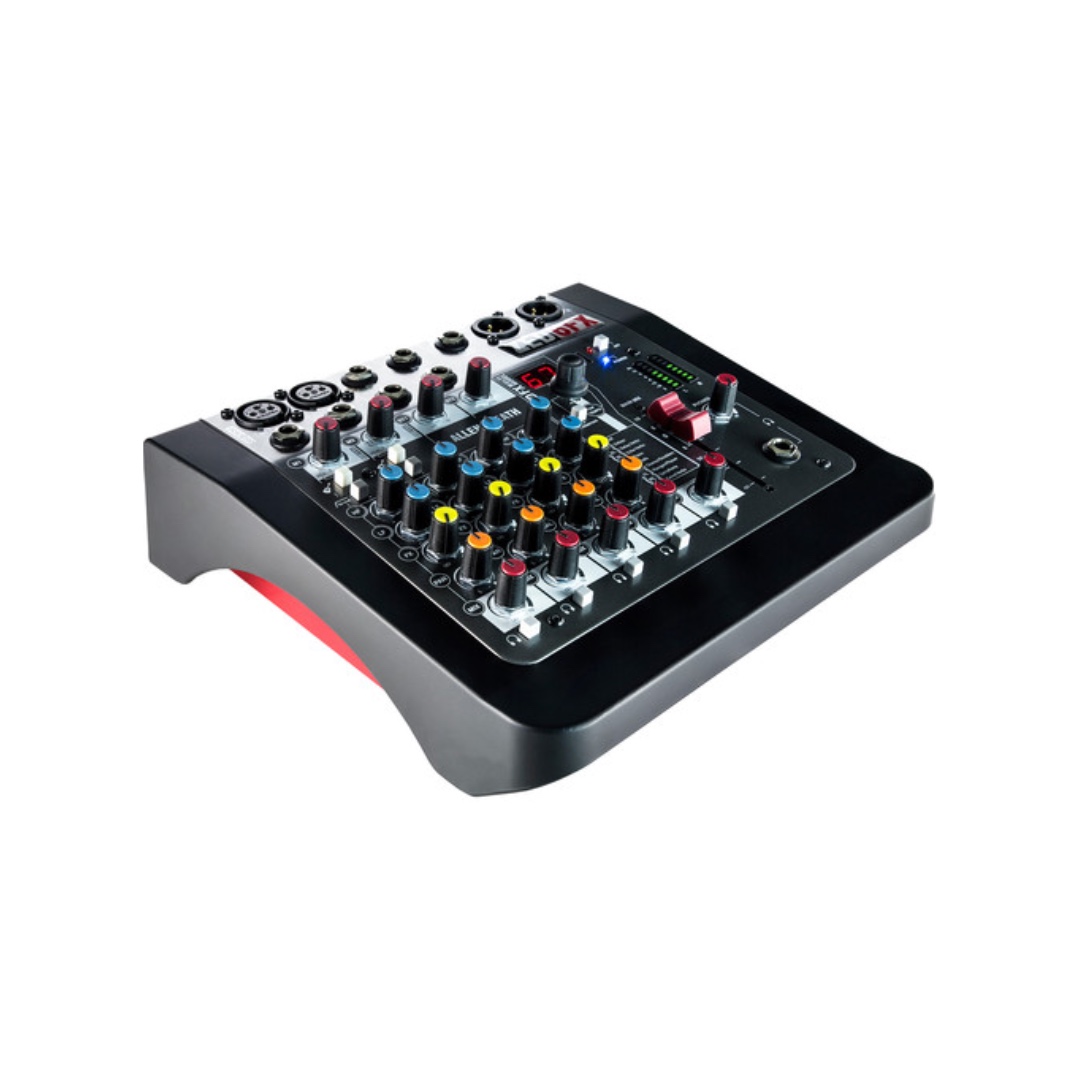

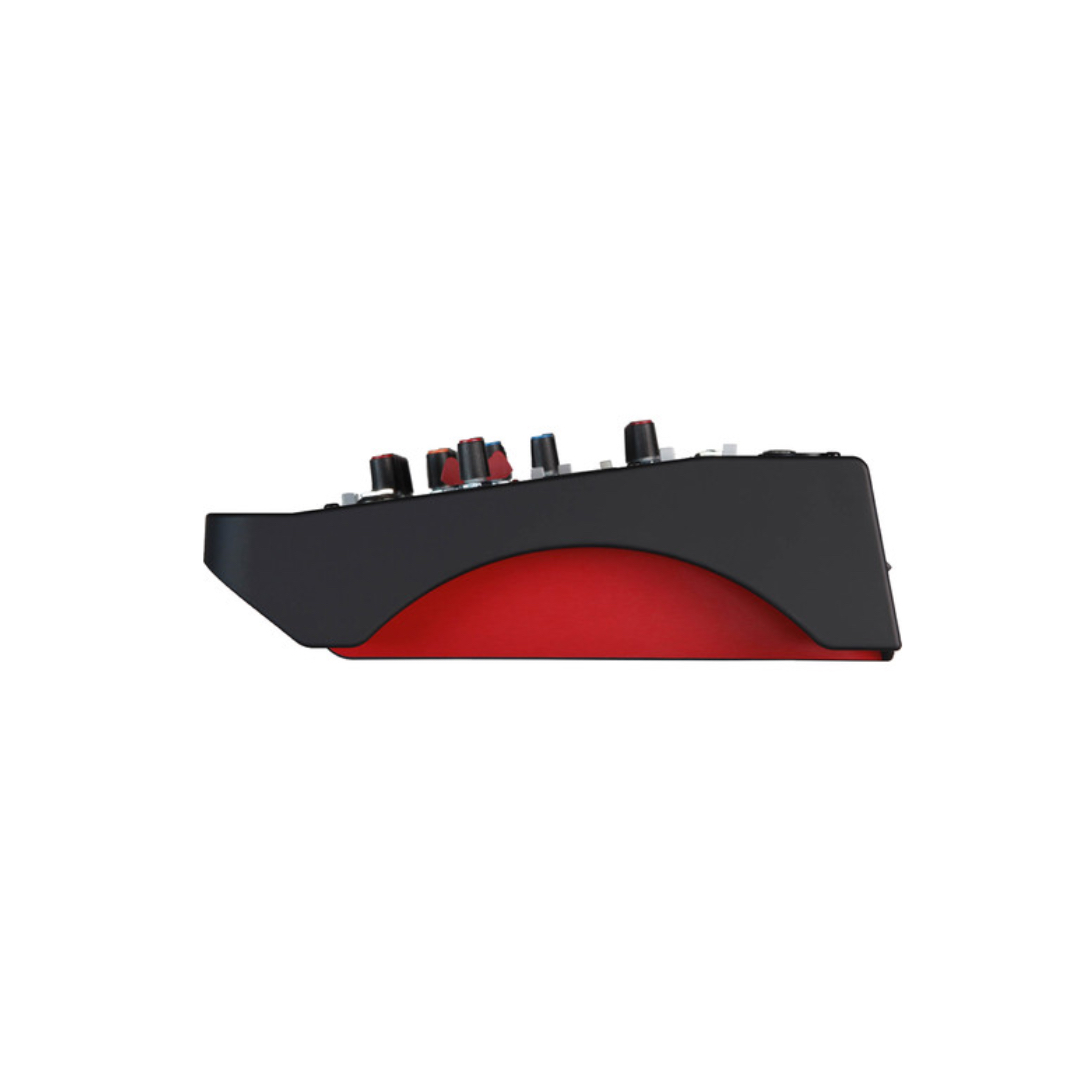

Allen & Heath ZED 6FX

Compact Analog Mixer (with On-Board Effects Engine)

Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZED-6FX is a six-input analog mixer with an internal effects engine that sports reverb, delay, chorusing, and tap-tempo functionality. Solo musicians, lectures, and small bands alike can find this unit suitable for modest venues, hotels, churches, and schools.

The ZED-6FX is crafted with preamps modeled on the Allen & Heath GS2-R24, and, as such, aims to provide low noise, warmth, and a vast expanse of headroom. On-board two-band MusiQ EQs also come standard with the unit, as well as 48V phantom power for the two mic inputs. Guitar players using the ZED-6FX need not lug an extra DI box around, as the unit features two high-impedance guitar inputs. Channels three and four host dual 1/4″ stereo line-level inputs.

You can monitor the outputs of the mixer either through headphones or through two XLR outputs, utilizing an eight-LED meter all the while. If you’d like to hear a sound source before placing it within the audible mix, simply press the PFL button located at the bottom of each channel strip.

FEATURES

• 2x Mic/Line inputs with separate XLR and TRS jack sockets
• 2x Stereo inputs with TRS jack sockets
• 2x Guitar DI high-impedance inputs, eliminating the need for DI boxes
• Internal FX engine with tap tempo
• High-pass filter for cleaning up unwanted low-frequency noise
• 2-band EQ for tonal shaping
• 60mm smooth travel fader on main mix
• XLR main outputs
• 8x LED signal metering
• 48V Phantom Power for condenser mics
• Internal power supply
• 6x Input Analog Mixer with FX
• 2x High-Impedance Guitar Inputs
• 2-Band EQ and HPF on Each Channel
• Flexible Signal Monitoring
• 48V Phantom Power
• 4x Pre-Fade Listen Selectors
