JBL IRX ONE
JBL IRX ONE - Image 2
JBL IRX ONE - Image 3
, , ,

JBL IRX ONE

Brands: JBL
Brands
  • C-shaped array of six 2” tweeters deliver superior clarity and rich sound
  • 8” woofer with bass-reflex design generates natural, smooth low-end, down to 40 Hz
  • Frequency response: 40 Hz – 20 kHz
  • Built-in 3-channel mixer

$1,606.00

1300W Powered Column Array PA System with Mixer and Bluetooth Streaming

Power your next event with the JBL IRX ONE, an all-in-one column PA speaker that features a 3-channel mixer and Bluetooth 5.0 audio steaming, all packed into an easy-to-use system that can be carried with one hand. The IRX ONE is inspired by the large-scale concert line array with incredible directivity control that results in a custom-tuned, C-shaped array. The integrated 1300W amplifier powers the six 2″ high-frequency drivers and the 8″ woofer, which combine for a frequency response of 40 Hz to 18 kHz.

The rear panel provides two combo XLR-1/4″ inputs with +48V phantom power that can handle condenser microphones. A 1/4″ Hi-Z input supports instruments, such as guitar and bass, while the 1/4″ output sends the mix to another IRX ONE for stereo operation. Other notable features include dbx automatic feedback suppression (AFS), 5 EQ presets, Soundcraft audio ducking, and Bluetooth 5.0 audio streaming ensure a professional experience from start to finish.

Advanced Acoustic Technology and Seamless Coverage
IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2″ high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8″ woofer features a bass-reflex design to ensure low-frequency response down to 40 Hz.
Ergonomically Optimized Design

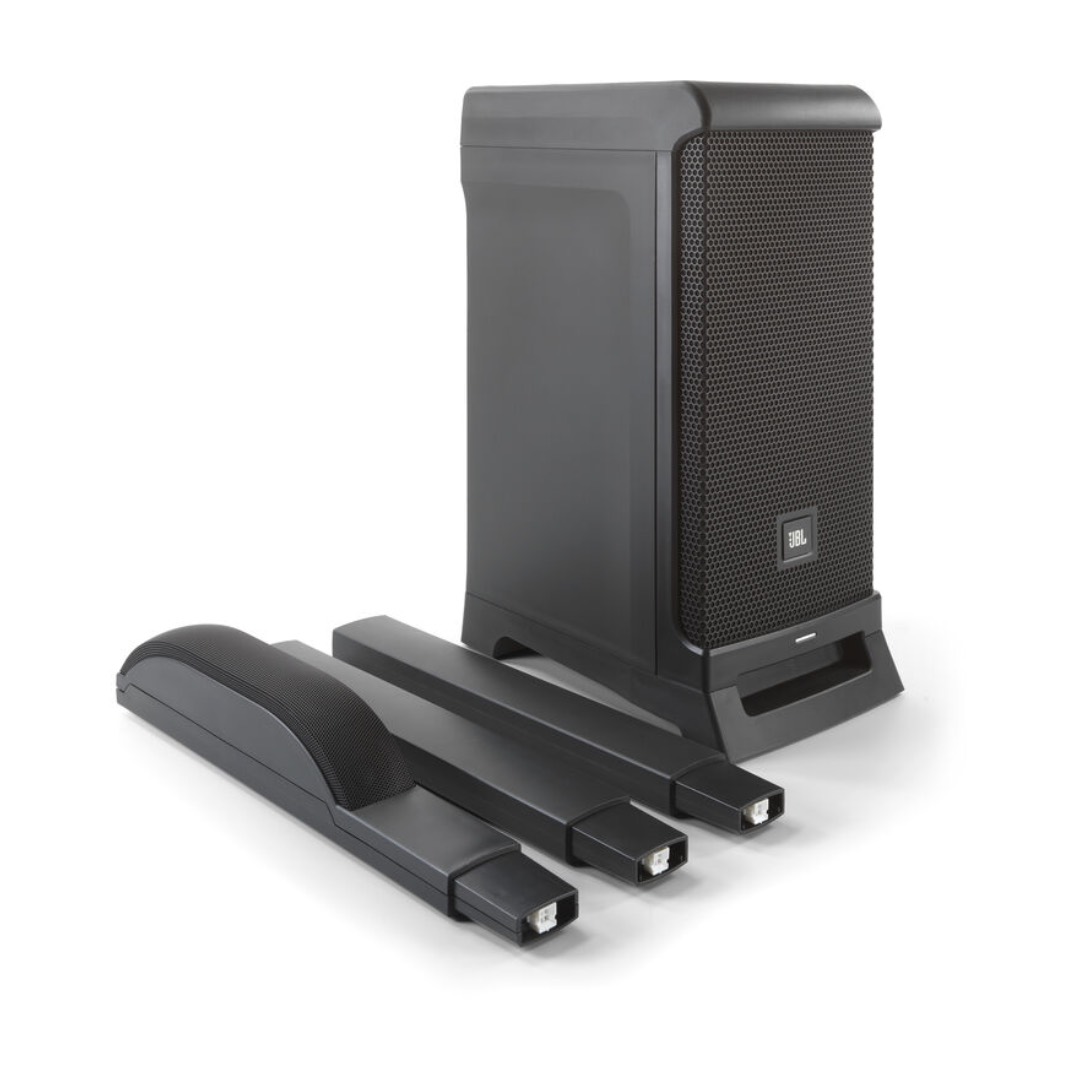

IRX ONE is easy to carry with one hand; sets up and tears down in seconds; and the ergonomically optimized carry handle minimizes wrist strain. Additionally, column spacers and the array cabinet conveniently fit into the back of the base unit.
Simple-to-Manage 3-Channel Mixer
RX ONE features a 3-channel mixer that supports the most popular connections, including ¼” and XLR inputs with included 48V phantom power and ¼” balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets and Soundcraft audio ducking ensure a professional experience from start to finish.
Integrated Bluetooth 5.0 Audio Streaming
Using the latest Bluetooth 5.0 audio streaming chipset, IRX ONE delivers premium audio performance and long-distance streaming.
Portable and Reliable. Built for Durability
IRX ONE is built for long-lasting durability that includes JBL’s rigorous 100-hour stress test, stringent road tests, and a complete three-year warranty.
FEATURES
  • C-shaped array of six 2” tweeters deliver superior clarity and rich sound
  • 8” woofer with bass-reflex design generates natural, smooth low-end, down to 40 Hz
  • Frequency response: 40 Hz – 20 kHz
  • Built-in 3-channel mixer
  • Fixed bass and treble control, Automatic Feedback Suppression(AFS), phantom power, and system tuning presets
  • Soundcraft Easy Ducking automatically turns down music when speech is detected
  • I/O includes ¼” and XLR inputs with included 48V phantom power and ¼” balanced mix-out
  • Bluetooth 5.0 audio streaming
  • Column spacers and array cabinet conveniently fit into back of base unit
  • Speaker automatically adjusts tuning depending on how many spacers are used for optimum sound performance
  • Easy to carry with one hand; sets up and tears down in seconds
  • Ergonomically optimized carry handle minimizes wrist strain
  • Road-tough, lightweight cabinet
  • Complete three-year warranty
Categories: , , , Tags: , , Brand:
Brands

JBL
Product Type

PA Speakers, Portable PA Systems
Key Specs
Speaker Configuration
1x 2-Way Speaker Column with Subwoofer
Number of Input Channels
3 (3 x Mono)
Amplifier Power Rating
1x 1300 W Peak
HF Driver
6x 2″ / 5.1 cm Tweeter
Audio I/O
Combo XLR-1/4″ / 1/4″
Wireless
Bluetooth 5.0
Portable PA System
Speaker Configuration
1x 2-Way Speaker Column with Subwoofer
Number of Input Channels
3 (3 x Mono)
Amplifier Power Rating
1x 1300 W Peak
Amplifier Class
Class-D
Speakers
Enclosure Type
Bass-Reflex
HF Driver
6x 2″ / 5.1 cm Tweeter
Subwoofer Driver
1x 8″ / 20.3 cm
Subwoofer Voice Coil
1.5″ / 38.4 mm
Magnet
Subwoofer:
Ferrite
HF Driver:
Neodymium
Signal Processing
Crossover
260 Hz
EQ
1x HF Shelf
1x LF Shelf
Semi-Parametric EQ
No
Effects
Yes
Dynamic Processing
Limiter
Performance
Frequency Response
50 Hz to 18 kHz -3 dB
Frequency Range
40 Hz to 20 kHz -10 dB
Maximum SPL
118 dB
Coverage Angle
160° H x 80° V
I/O Impedance
Mic Input:
4.4 Kilohms (Balanced/Unbalanced)
1/4″ Hi-Z Input:
1 Megohms (Balanced)
Connectivity
Audio I/O
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
1x 1/4″ TRS Balanced/Unbalanced Line/Inst Input
1x 1/4″ TRS Balanced Line/Mix Output
Phantom Power
+48 V
Mobile App Compatible
No
Network I/O
No
Wireless
Wireless
Bluetooth 5.0
Power
AC Input Power
100 to 120 VAC, 60 Hz
AC Power I/O
1x IEC Input
Physical
Transport Options
Subwoofer:
1x Handle (Top)
Construction Material
Perforated Metal Grille, Polypropylene
Dimensions
23.5 x 15.7 x 10.5″ / 597 x 400 x 267 mm
Weight
34.2 lb / 15.5 kg
