JBL SLP12/T


Brands: JBL
Brands
  • For Restaurants, Retail, and Home Audio
  • Sleek, Flush-to-Wall Audio Solution
  • 3″ Full-Range Driver
  • 80W Continuous Program, 160W Peak

$239.00

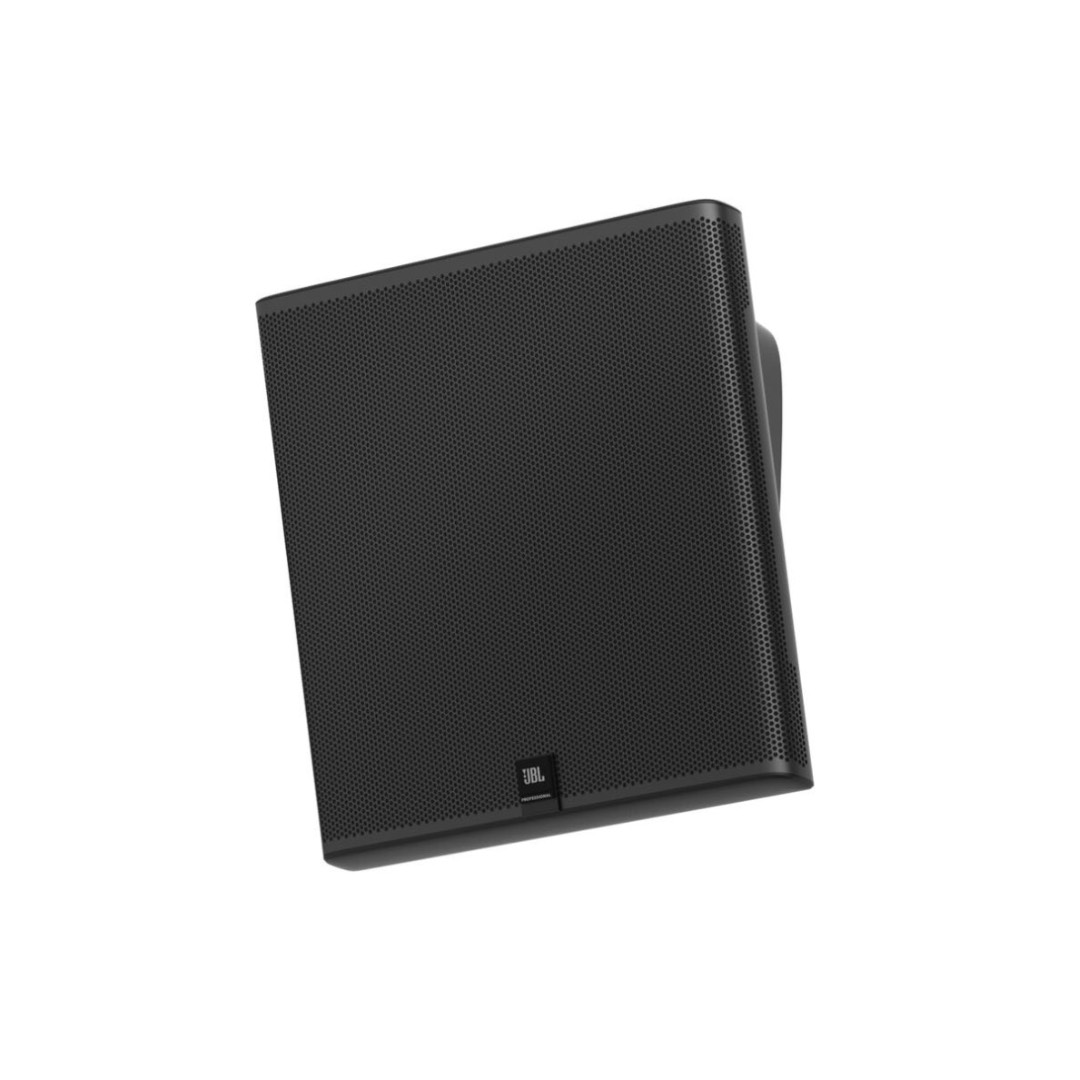

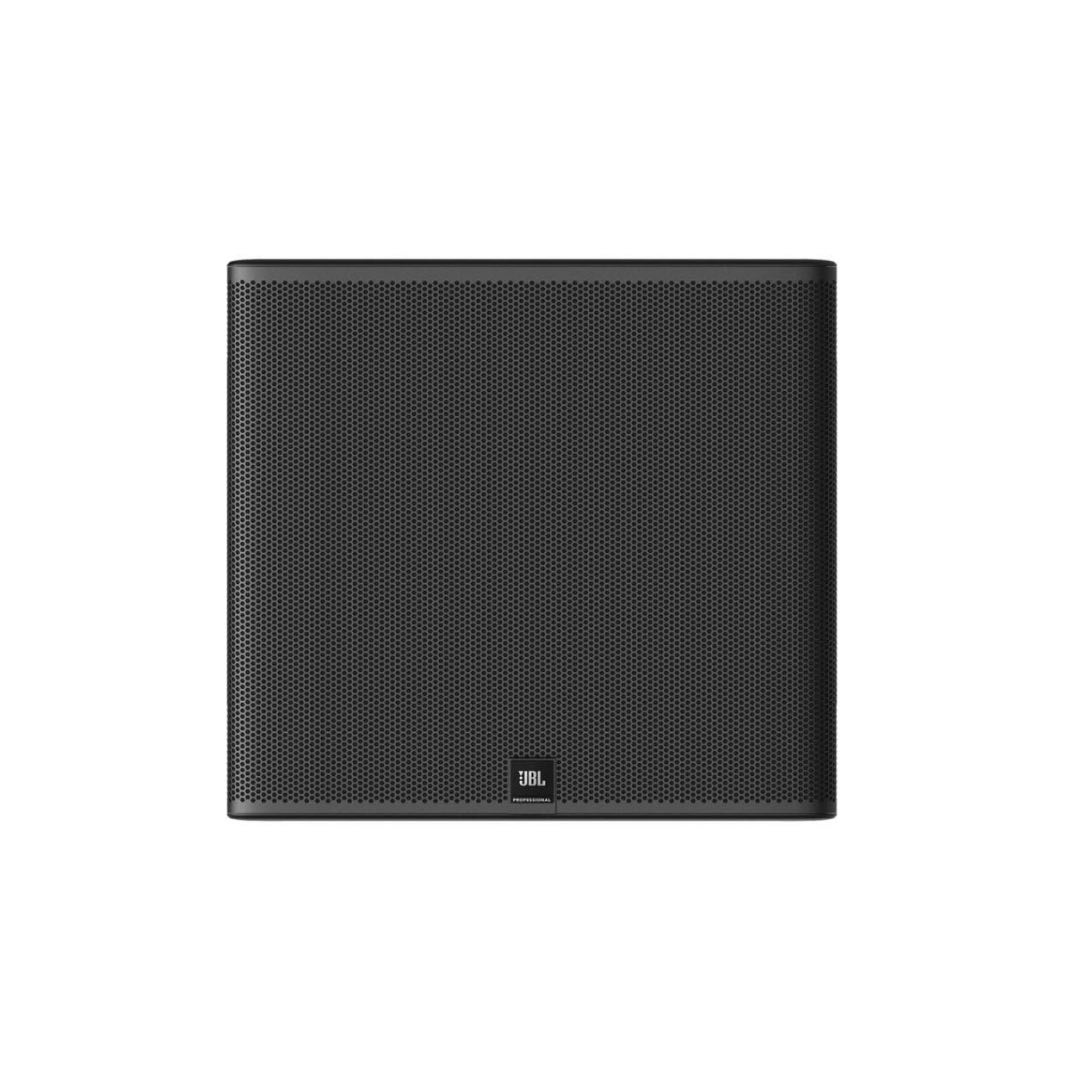

160W Low-Profile On-Wall Full-Range Loudspeaker

Offering broad, consistent coverage, powerful sound, and a sleek, low-profile enclosure, the black SLP12/T from JBL lays a solid foundation for a wide range of installed audio applications, such as restaurants, retail spaces, hotels, resorts, and home theater systems. With up to a peak 160W of power handling and a 3″ full-range driver, the SLP12/T delivers high-quality sound, and thanks to an award-winning design and a 15° down-tilted angle, it remains flush to the wall.

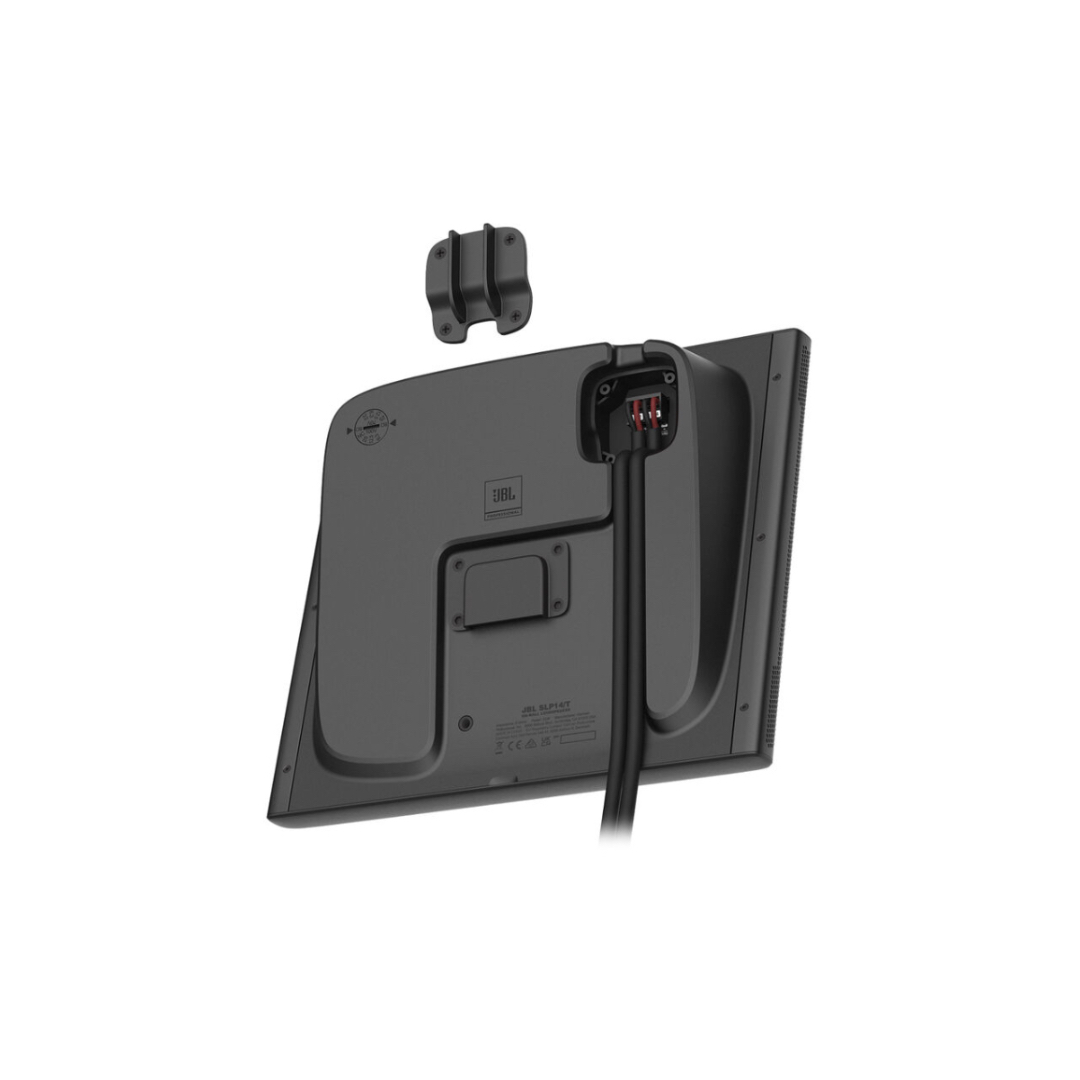

The 15W multi-tap transformer can support 70 and 100V or direct 8-ohm operation in installed systems, and connection to amplifiers is easy with a convenient 4-pin Euroblock terminal. This speaker is ADA compliant, at less than 4″ deep, and is capable of handling outdoor installations too, with an IP44 water splash rating. The SPL12/T includes a slide-on wall bracket for easy installation, a 4-pin Euroblock plug, and a protective rain cover for the terminal during outdoor use.

FEATURES

  • For Restaurants, Retail, and Home Audio
  • Sleek, Flush-to-Wall Audio Solution
  • 3″ Full-Range Driver
  • 80W Continuous Program, 160W Peak
  • 15° Down-Tilted Coverage
  • Multitap Transformer: 70/100V or 8-Ohm
  • 4-Pin Euroblock Audio Connection
  • ADA-Compliant Design, Under 4″ Deep
  • IP44 Water Ingress Protection
  • Includes Wall Bracket and Rain Cover
Categories: , , Tags: , Brand:
Brands

JBL

Product Type

Speakers

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
80 W Program
For 2 Hours:
40 W
160 W Peak
For 100 Hours:
20 W
80 W Peak

Constant Voltage / Transformer Taps
70 V
15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass
100 V
15 / 7.5 / 3.8 W or 8 Ohms Bypass

Impedance
7.5 to 8 Ohms
Full-Range Driver
1x 3″ / 7.6 cm Polypropylene-Coated Cone
Frequency Range
74 Hz to 20 kHz -10 dB
Color
Black
Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
80 W Program
For 2 Hours:
40 W
160 W Peak

For 100 Hours:
20 W
80 W Peak
Constant Voltage / Transformer Taps
70 V
15 / 7.5 / 3.8 / 1.9 W or 8 Ohms Bypass

100 V
15 / 7.5 / 3.8 W or 8 Ohms Bypass
Impedance
7.5 to 8 Ohms
Transformer Wattage
15 W
Enclosure Type
Sealed
Drivers
Full-Range Driver
1x 3″ / 7.6 cm Polypropylene-Coated Cone
Full-Range Voice Coil
0.8″ / 2 cm
Performance
Frequency Range
74 Hz to 20 kHz -10 dB
Frequency Response
91 Hz to 18 kHz ±3 dB
Sensitivity
84 dB (Half-Space)
Coverage Angle
120° H x 120° V
Directivity
7.5 (Directivity/Q Factor)
8.8 dB (Directivity Index)
Connectivity
Inputs/Outputs
1x Block 4-Pin Speaker Input (Locking, Removable)
Maximum Wire Gauge
24 AWG
Physical
Environmental Resistance
Dust/Water-Resistant (IP44)
Color
Black
Mounting
1x Bracket Point (Rear)
Construction Material
ABS, Polycarbonate
Dimensions
9.8 x 9.1 x 3.9″ / 24.9 x 23.1 x 9.9 cm
Weight
4.2 lb / 1.9 kg
