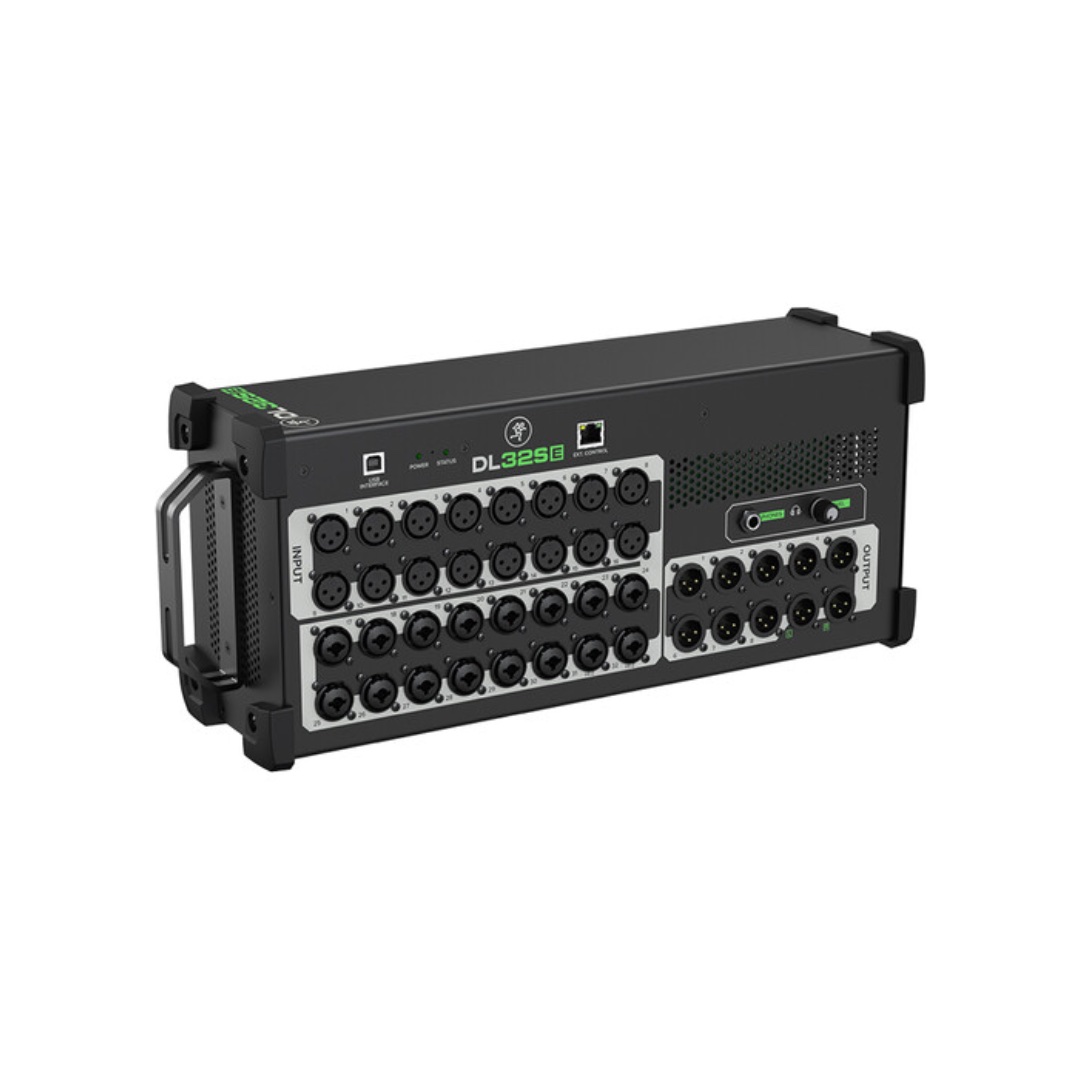

Mackie DL32SE
Mackie DL32SE - Image 2
Mackie DL32SE - Image 3
, , ,

Mackie DL32SE

Brands: Mackie
Brands
  • Complete Wireless Control
  • 32 Mic Inputs with Onyx+ Recallable Pres
  • 10 Fully Assignable XLR Outputs
  • 4-Band EQ, HPF, and Dynamics

$2,230.00

32-Channel Digital Rack Mixer

Designed to withstand real-world abuse, the Mackie DL32SE is a 32-channel wireless digital live sound mixer in a stage-friendly rack-mountable design, well suited for musicians, engineers, clubs, bars, coffee shops, and more. The mixer features 32 Onyx+ recallable preamps available on 16 XLR inputs and 16 combo XLR-1/4″ inputs, while 10 fully assignable outputs are available on XLR connectors, plus, there is a dedicated 1/4″ headphone output.

The steel construction and large rubber corners ensure the DL32SE can handle the rigors of on-the-road wear and tear. The integrated handle provides an easy carry option for quick deployment, while the Ethernet connector allows you to connect directly to a wireless router or network switch. The Mackie DL32S utilizes the Master Fader SE control app (iOS, Android, Mac, Windows). Navigate quickly with the overview, view groups, and quickly set up channels with factory and user presets, plus recall settings for each of the Onyx+ mic preamps. Up to 20 devices can be connected, allowing musicians to create their own headphone mix, while Access Limiting settings will prevent unwanted adjustments for the FOH engineer. The DL32SE includes rack ears and a power cord.

Powerful Processing and Routing
  • 32 stereo-linkable input channels
  • 10 output buses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay, and RTA/Spectrograph
  • 8 stereo-linkable aux sends
  • 6 stereo-linkable subgroups
  • Main L/R bus
  • 6 VCAs and 6 mute groups
  • 4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers, and many more with dedicated sends and returns
  • Full I/O routing with A/B sources per channel
  • Assignable oscillator including pink/white noise and sinewaves
  • Modern and Vintage options for comp/gate and EQ
Wireless Mixing
  • Take complete control via iOS, Android, macOS or Windows devices
  • No set FOH position—mix from anywhere
  • Control from up to 20 separate devices at once
  • Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
  • Universal Ethernet connection supports your wireless router of choice
Multitrack Recording and Playback
  • 32×32 USB 2.0 audio interface for Mac or PC
  • Record the show for later mixdown
  • Perform a virtual sound check
  • Play intermission music, backing tracks, and more directly into a dedicated stereo return channel
  • Flexible, low-cost studio recording solution
  • Utilize Mac or PC audio plug-ins in a live environment
Master Fader SE Control App
  • Intuitive and easy to master
  • Fast navigation with view groups and overview
  • Quick setup with tons of factory and user-definable presets
  • Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
  • Quickly access channel processing, signal routing, and a massive suite of great sounding effects, with presets to get you started
  • Export presets, shows, and complete system backups via Dropbox, email, and more
  • Set up the show before you arrive at the venue with offline show creation
  • Available on iOS, Android, macOS, and Windows

FEATURES

  • Complete Wireless Control
  • 10 Fully Assignable XLR Outputs
  • 4-Band EQ, HPF, and Dynamics
  • Dedicated Processing on All I/O
  • 31-Band Graphic EQ on Output Busses
  • 6 VCAs and 6 Mute Groups
  • 32 x 32 USB 2.0 Interface
  • Convenient stagebox/rack design with built-in handle
  • 32 Onyx+ preamps (16 XLR, 16 XLR/TRS combo with 2 Hi-Z)
  • Connect to your wireless router and control with Master Fader SE app
  • Per-channel EQ, filters, gate, compression, and RTA/Spectrograph
  • 4 stereo FX busses with studio-quality reverbs, delays, chorus, and more
  • Multitrack 16×16 / 32×32 USB audio interface for recording and playback
  • Waveform OEM professional software and plugins included
Categories: , , , Tags: , , , Brand:
Brands

Mackie
Product Type

Digital Mixers, Mixers
Max I/O Capacity
32x Input / 12x Output
Number of Analog Input Channels
32 (32 Mono / 0 Stereo)
Number of Mic Preamps
32
Number of Analog Output Channels
10
Faders & Level Adjustment
No
Built-In Effects
4x Stereo Preset (Factory)
Analog Inputs
16x XLR 3-Pin Balanced Input
16x Combo XLR-1/4″ TRS Balanced Input
Analog Outputs
10x XLR Output
1x 1/4″ Headphone Output
Digital I/O
1x RJ45 (Wi-Fi Router, 100 Mb/s)
USB I/O
1x USB-B 2.0 (Host Connection)
Wireless
Wi-Fi
Rack Mountable
Yes
Mixer
Max I/O Capacity
32x Input / 12x Output
Number of Analog Input Channels
32 (32 Mono / 0 Stereo)
Number of Mic Preamps
32
Number of Analog Output Channels
10
Mix Routing
8x Stereo Aux Send
6x Subgroup
Groups
6x VCA Group
6x Mute Group
Faders & Level Adjustment
No
Signal Processing
Dynamic Processing
Input Channels:
Compressor, Gate
Buses, Master:
Compressor, Limiter
EQ
Input Channels:
4-Band Parametric
Output Buses:
4-Band Parametric
31-Band Graphic
Graphic EQ
31-Band
Filters
Input Channels:
High-Pass
Outputs:
High-Pass
Low-Pass
Solo/Mute
No
Built-In Effects
4x Stereo Preset (Factory)
Automatic Mic Mixing
No
Performance
Analog Dynamic Range
Input to Output:
109 dBA at Unity Gain
Connectivity
Analog Inputs
16x XLR 3-Pin Balanced Input
16x Combo XLR-1/4″ TRS Balanced Input
Analog Outputs
10x XLR Balanced Output
1x 1/4″ TRS Headphone Output
Phantom Power
+48 V, Selectable On/Off (Selectable on Individual Inputs)
Digital I/O
1x RJ45 (Wi-Fi Router, 100 Mb/s)
MIDI I/O
No
USB I/O
1x USB-B 2.0 (Host Connection)
Wireless
Wi-Fi
External Display I/O
No
Recording
Max Multitrack Recording
32 Tracks
Media Support
HDD
File Format Support
WAV
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
Yes
Rackmount Size
4 U (with Included Hardware)
Dimensions
17.6 x 7.3 x 5.8″ / 447 x 185.4 x 147.3 mm
Weight
8.7 lb / 3.9 kg
Packaging Info
Package Weight
14.315 lb
Box Dimensions (LxWxH)
20.8 x 10.9 x 9″
