Proel LTX10PWV2

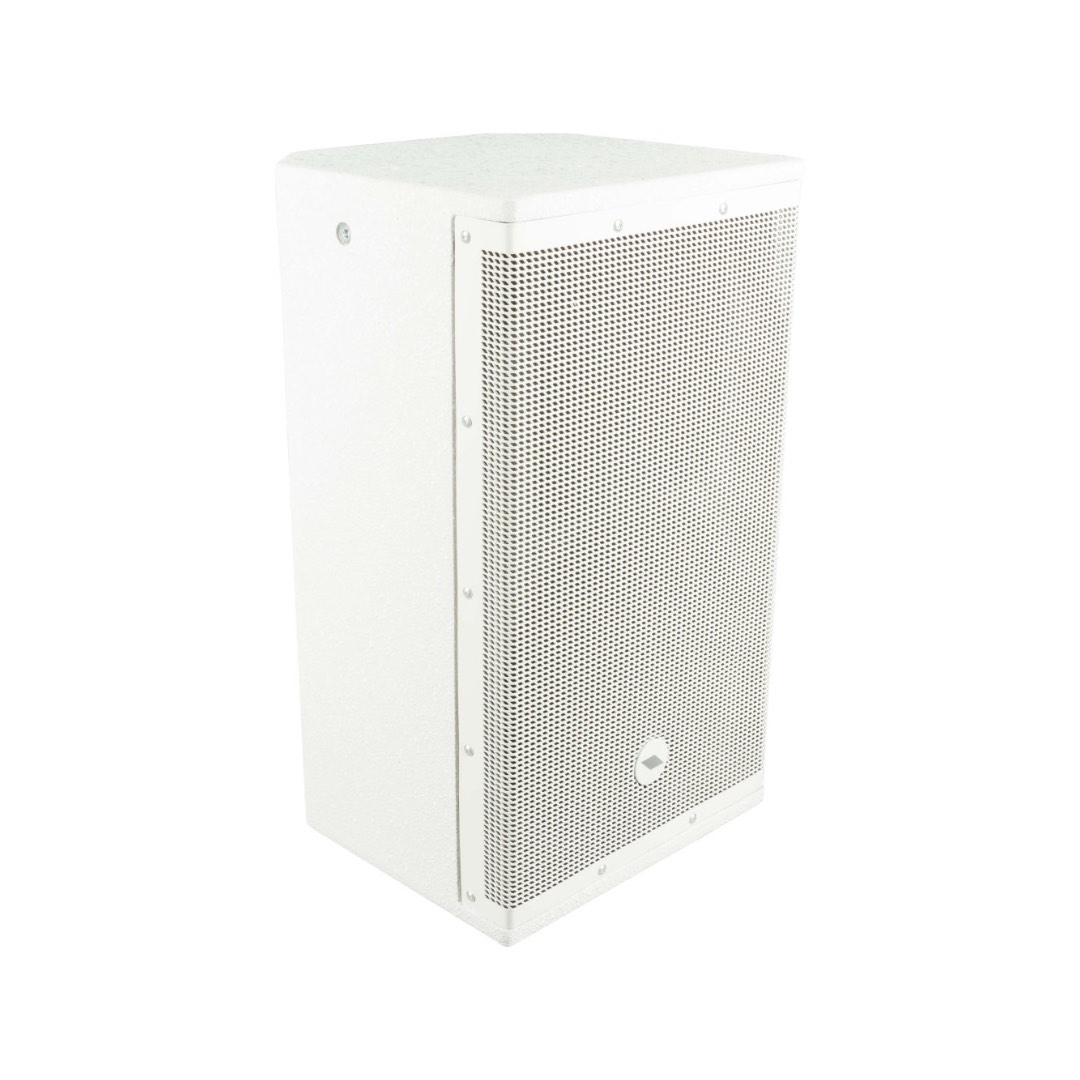

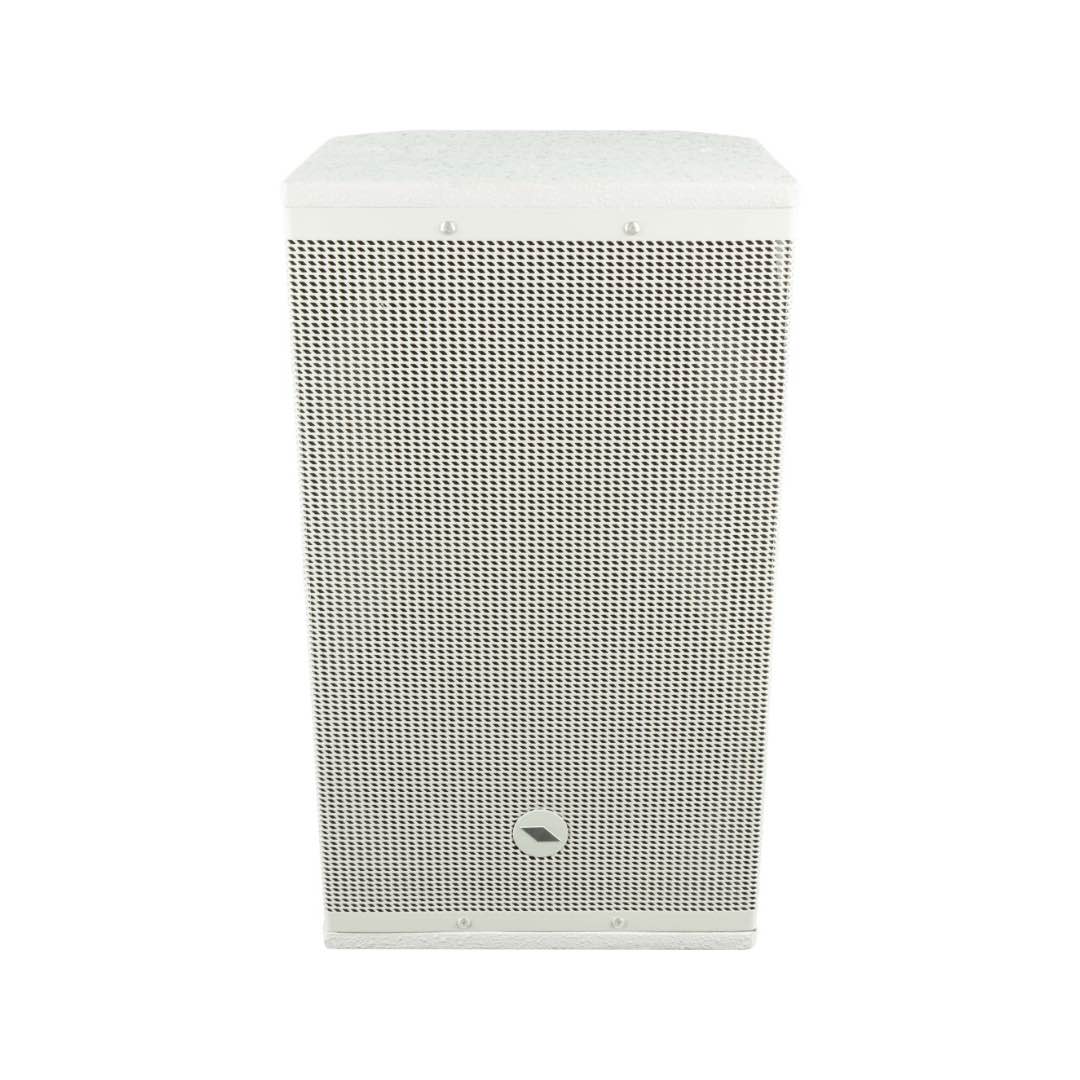

LTX is a complete series of active and passive loudspeakers specifically designed for a wide range of commercial and residential installations. The speaker systems are housed in durable multilayer wooden cabinets available in black or white, offering a refined and discreet aesthetic that blends into any environment.

All cabinets are equipped with multiple suspension points and dedicated accessories for a wide variety of mounting options. The KPTLTP bracket (included with the LTX6 and LTX8) allows wall and ceiling installation with adjustable tilt and rotation, providing more uniform coverage. The C-brackets (for the LTX10 and LTX12 models) allow installation on walls, ceilings, and stage structures for discreet mounting. The LTX8, LTX10, and LTX12 also feature a standard pole mount adapter, allowing the speaker to be used as a portable audio system with a standard floor speaker stand.

For high-frequency reproduction, we designed symmetrical horns with 90° × 90° dispersion, capable of providing consistent coverage for large audiences in both vertical and horizontal installations, along with detailed response and low distortion. The high-excursion woofers, combined with carefully tuned bass reflex cabinets, deliver extended response with deep and fast bass.

The active versions are powered by amplifiers featuring the latest amplification technologies, such as Switch Mode power supplies and CLASS D power stages, delivering high power with reduced size and weight. They include a sophisticated preamplifier section with phase-aligned crossover filters up to 24 dB/oct., as well as active EQ filters for system tuning and POWERCON network connectors. Independent HF and LF LIMITER circuits ensure distortion-free sound even at maximum levels and provide complete loudspeaker protection.

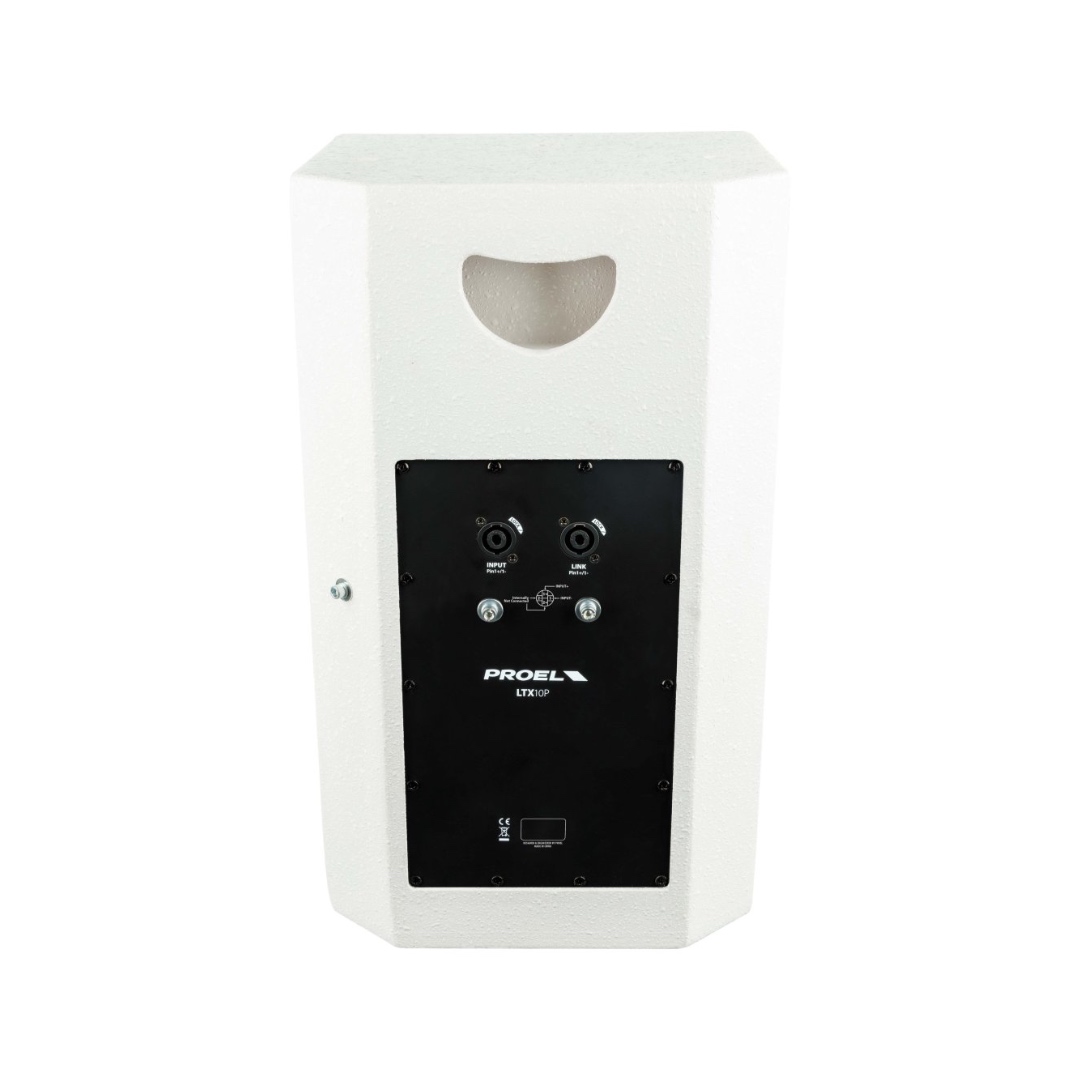

The passive versions feature carefully designed linear-phase crossover filters, HF protection circuits, and SPEAKON connectors.

• 1” compression driver
• 10” woofer
• 90° H × 90° V coverage
• 500 W peak power handling
• Frequency response: 60 Hz – 20 kHz
• SPL 1W/1m: 94 dB
